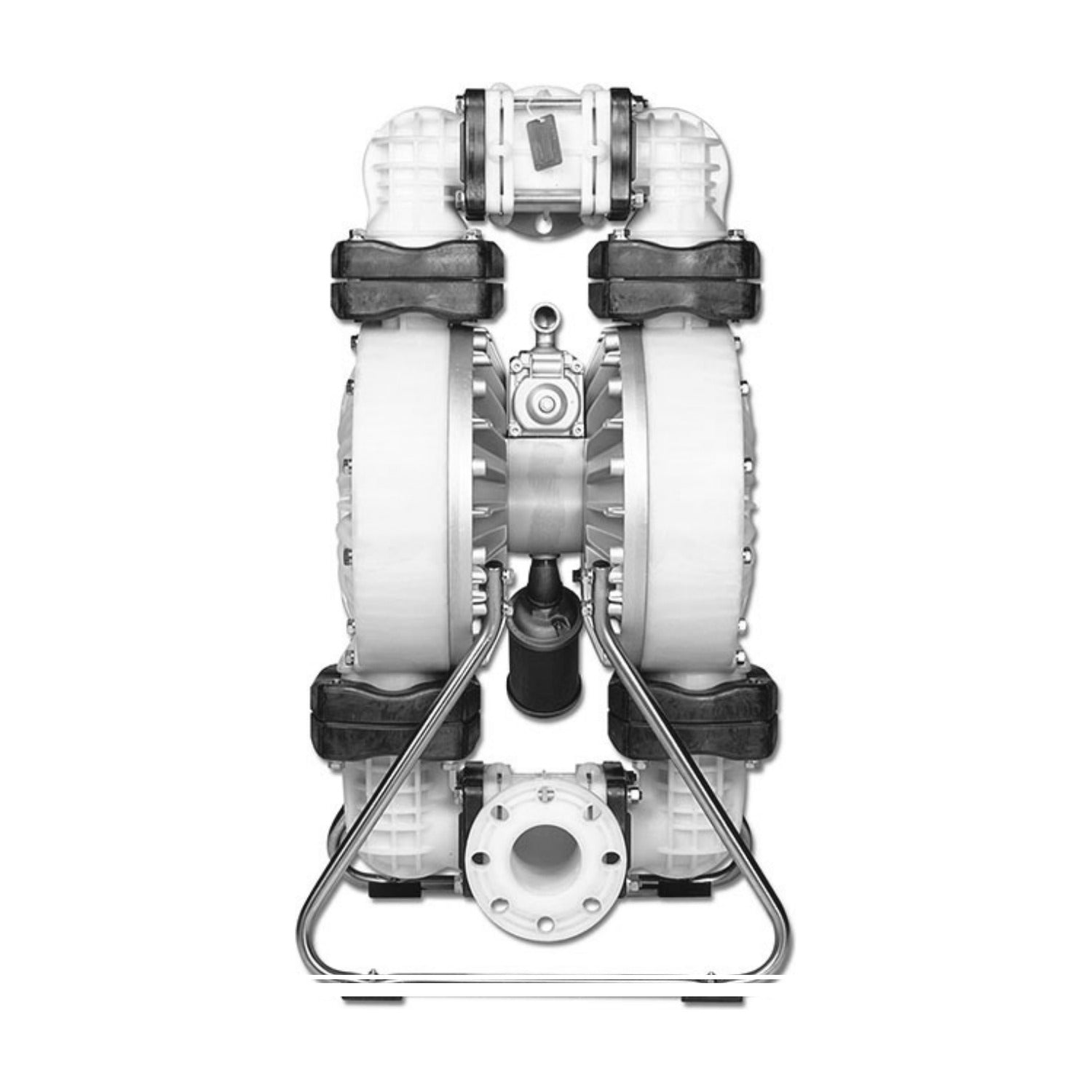

Yamada NDP-80BPS — 3" Polypropylene Diaphragm Pump, Santoprene Diaphragm
Yamada NDP-80BPS — 3" Polypropylene Diaphragm Pump, Santoprene Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
The Yamada NDP-80BPS is a 3" air-operated double-diaphragm pump in polypropylene, rated to 215 GPM. It passes solids to 13/32" (10 mm) and handles fluid to 180°F (82°C).
A glass-filled polypropylene wetted path handles dilute acids, alkalis and brines without the galvanic issues a metal body brings, making it the usual pick for chemical transfer and wastewater duty. Santoprene diaphragms and balls offer broad chemical compatibility with a long flex life, and are usually the best value where the duty cycle is heavy. Ball check valves are the right choice for flooded-suction installations.
It runs on plant air with no electrical supply at the pump, self-primes, and will sit stalled against a closed discharge without damage — useful on intermittent or dead-headed duty.
Shipped from Texas with short lead times and strong pricing. If you are unsure which build fits your fluid, send us the application details and we will point you at the right part number.
| Brand | Yamada |
|---|---|
| Model / MPN | NDP-80BPS |
| Yamada item no. | 852727 |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | NDP-80 |
| Port size | 3" |
| Maximum flow | 215 GPM |
| Air supply pressure | 20-100 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 13/32" (10 mm) |
| Displacement per cycle | Rubber 2.26 gal (8.57 L) |
| Maximum dry suction lift | 19 ft |
| Maximum fluid temperature | 180°F (82°C) |
| Check valve type | Ball valve |
| Body / wetted materials | Polypropylene (PPG) |
| Diaphragm material | Santoprene (TPO) |
| Ball material | Santoprene (TPO) |
| Air motor | Standard |
| Air inlet | 3/4" Female NPT |
| Air exhaust | 1" Female NPT |
| Repair kit | K80-PS |
