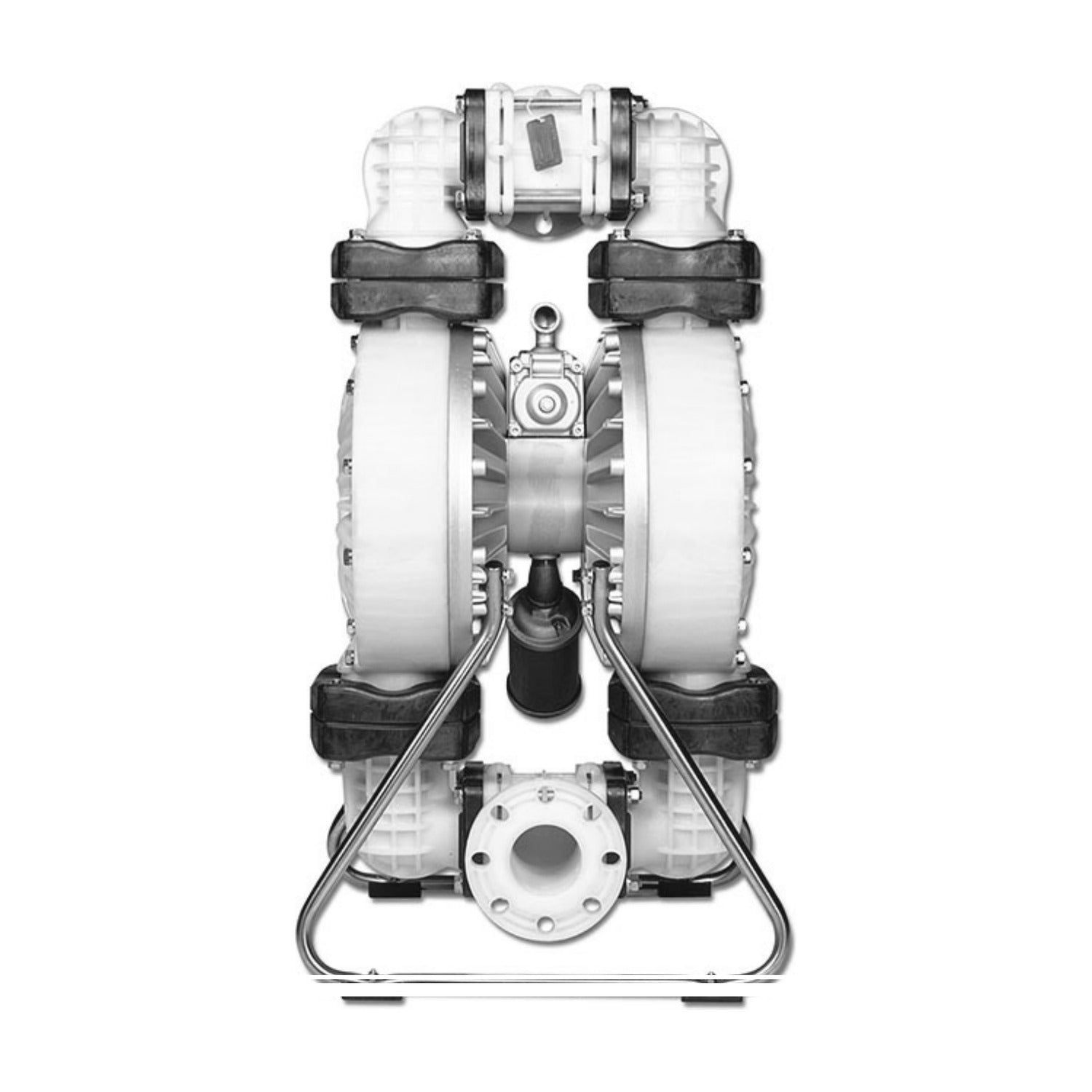

Yamada NDP-80BPN — 3" Polypropylene Diaphragm Pump, Buna-N Diaphragm
Yamada NDP-80BPN — 3" Polypropylene Diaphragm Pump, Buna-N Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
Yamada builds the NDP-80BPN as a 3" double-diaphragm pump in polypropylene, capable of 215 GPM. It passes solids to 13/32" (10 mm) and handles fluid to 180°F (82°C).
A glass-filled polypropylene wetted path handles dilute acids, alkalis and brines without the galvanic issues a metal body brings, making it the usual pick for chemical transfer and wastewater duty. Buna-N diaphragms and balls suit petroleum oils, diesel, hydraulic fluid and greases, but should be kept away from ketones and strong oxidizers. Ball check valves are the right choice for flooded-suction installations.
The pump self-primes, handles a degree of entrained air, and holds pressure when stalled, which makes it forgiving on transfer duty that starts and stops.
Shipped from Texas with short lead times and strong pricing. If you are unsure which build fits your fluid, send us the application details and we will point you at the right part number.
| Brand | Yamada |
|---|---|
| Model / MPN | NDP-80BPN |
| Yamada item no. | 852244 |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | NDP-80 |
| Port size | 3" |
| Maximum flow | 215 GPM |
| Air supply pressure | 20-100 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 13/32" (10 mm) |
| Displacement per cycle | Rubber 2.26 gal (8.57 L) |
| Maximum dry suction lift | 19 ft |
| Maximum fluid temperature | 180°F (82°C) |
| Check valve type | Ball valve |
| Body / wetted materials | Polypropylene (PPG) |
| Diaphragm material | Buna-N (NBR) |
| Ball material | Buna-N (NBR) |
| Air motor | Standard |
| Air inlet | 3/4" Female NPT |
| Air exhaust | 1" Female NPT |
| Repair kit | K80-PN |
