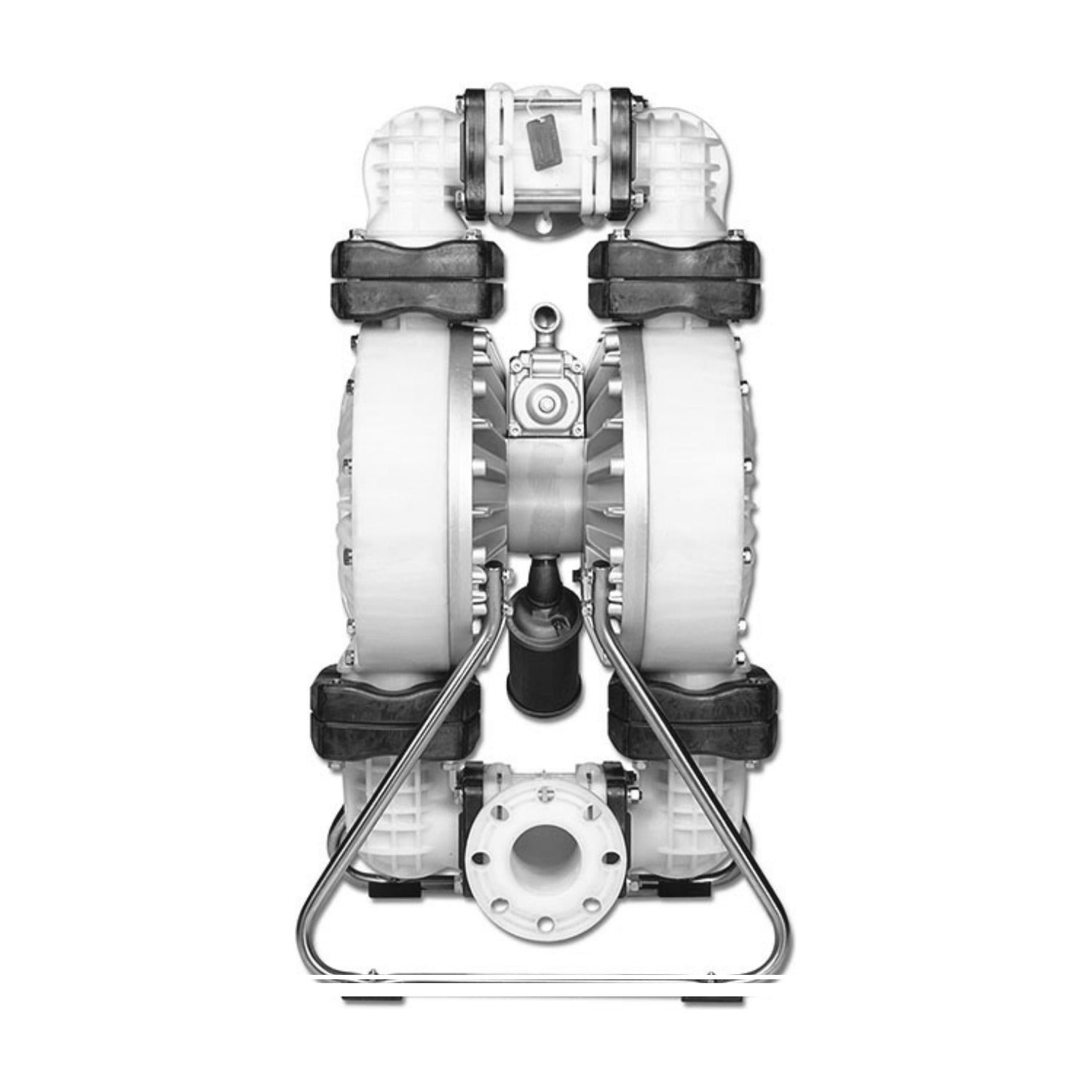

Yamada NDP-80BPH — 3" Polypropylene Diaphragm Pump, Hytrel Diaphragm
Yamada NDP-80BPH — 3" Polypropylene Diaphragm Pump, Hytrel Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
The Yamada NDP-80BPH is a 3" air-operated double-diaphragm pump in polypropylene, rated to 215 GPM. It passes solids to 13/32" (10 mm) and handles fluid to 180°F (82°C).
A glass-filled polypropylene wetted path handles dilute acids, alkalis and brines without the galvanic issues a metal body brings, making it the usual pick for chemical transfer and wastewater duty. Hytrel diaphragms and balls carry the highest temperature rating in the range and resist abrasion well, which suits hot oils and particulate-bearing fluids. Ball check valves are the right choice for flooded-suction installations.
Air drive means no electrics at the pump, seal-less operation with nothing to leak at a shaft, and safe stalling against a closed discharge.
Texas-based, with short lead times and pricing that reflects our supply position. Not sure this is the right build? Send us the fluid and duty and we will confirm.
| Brand | Yamada |
|---|---|
| Model / MPN | NDP-80BPH |
| Yamada item no. | 852245 |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | NDP-80 |
| Port size | 3" |
| Maximum flow | 215 GPM |
| Air supply pressure | 20-100 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 13/32" (10 mm) |
| Displacement per cycle | Rubber 2.26 gal (8.57 L) |
| Maximum dry suction lift | 19 ft |
| Maximum fluid temperature | 180°F (82°C) |
| Check valve type | Ball valve |
| Body / wetted materials | Polypropylene (PPG) |
| Diaphragm material | Hytrel (TPE) |
| Ball material | Hytrel (TPE) |
| Air motor | Standard |
| Air inlet | 3/4" Female NPT |
| Air exhaust | 1" Female NPT |
| Repair kit | K80-PH |
