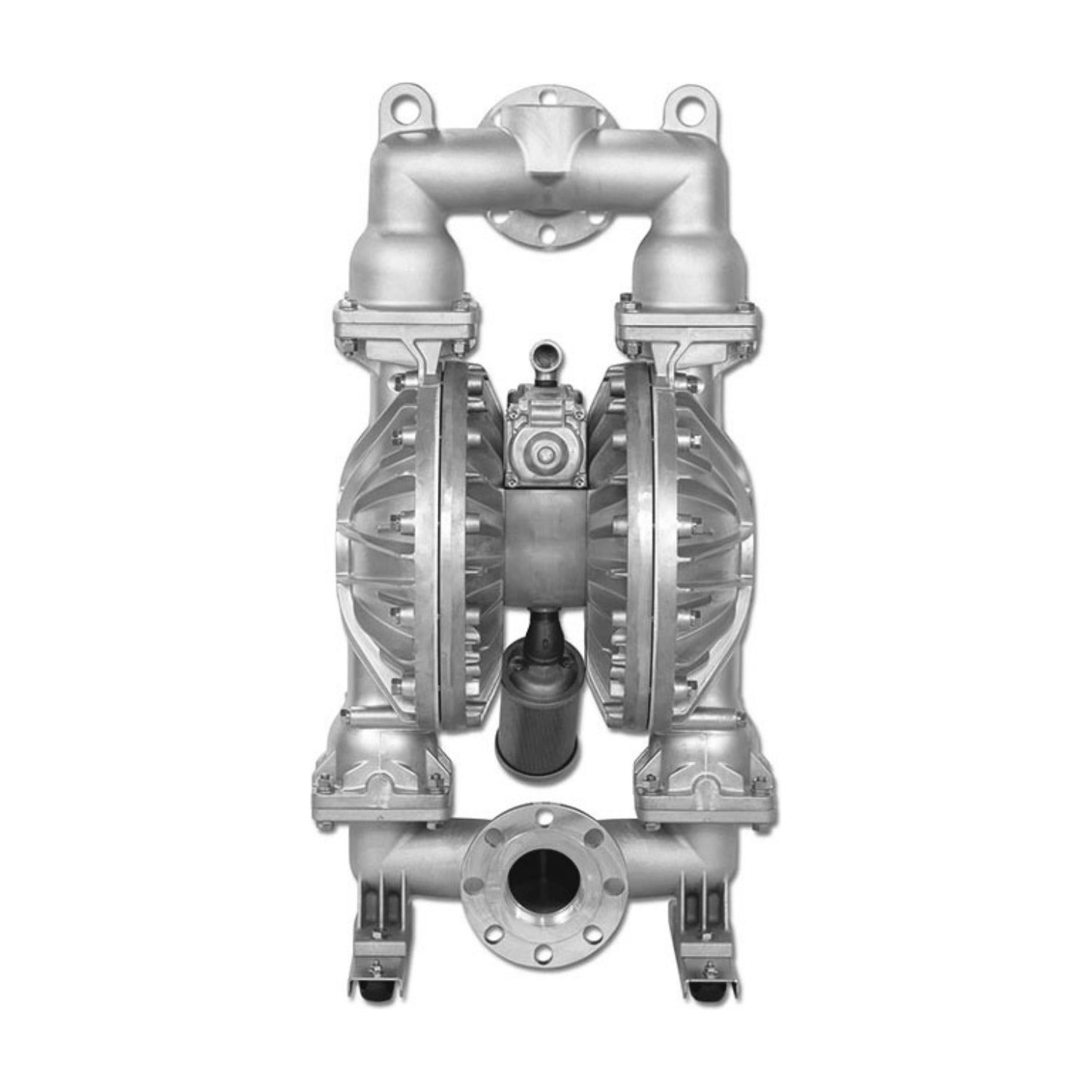

Yamada NDP-80BAS — 3" Aluminum Diaphragm Pump, Santoprene Diaphragm
Yamada NDP-80BAS — 3" Aluminum Diaphragm Pump, Santoprene Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
Yamada builds the NDP-80BAS as a 3" double-diaphragm pump in aluminum, capable of 215 GPM. It passes solids to 13/32" (10 mm) and handles fluid to 180°F (82°C).
Aluminium construction handles solvents, lubricating oils and hydrocarbon-based fluids well, and takes mechanical abuse better than a plastic body in a busy plant. Santoprene diaphragms and balls offer broad chemical compatibility with a long flex life, and are usually the best value where the duty cycle is heavy. Ball check valves are the right choice for flooded-suction installations.
It self-primes, tolerates running dry, and stalls harmlessly against a closed valve, so it suits batching and intermittent transfer where a centrifugal pump would be a poor fit.
Stocked and shipped from Texas with fast dispatch and competitive pricing. Send over your application details if you want the material selection checked before ordering.
| Brand | Yamada |
|---|---|
| Model / MPN | NDP-80BAS |
| Yamada item no. | 852725 |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | NDP-80 |
| Port size | 3" |
| Maximum flow | 215 GPM |
| Air supply pressure | 20-100 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 13/32" (10 mm) |
| Displacement per cycle | Rubber 2.26 gal (8.57 L) |
| Maximum dry suction lift | 19 ft |
| Maximum fluid temperature | 180°F (82°C) |
| Check valve type | Ball valve |
| Body / wetted materials | Aluminum (ADC-12) |
| Diaphragm material | Santoprene (TPO) |
| Ball material | Santoprene (TPO) |
| Air motor | Standard |
| Air inlet | 3/4" Female NPT |
| Air exhaust | 1" Female NPT |
| Repair kit | K80-MS |
