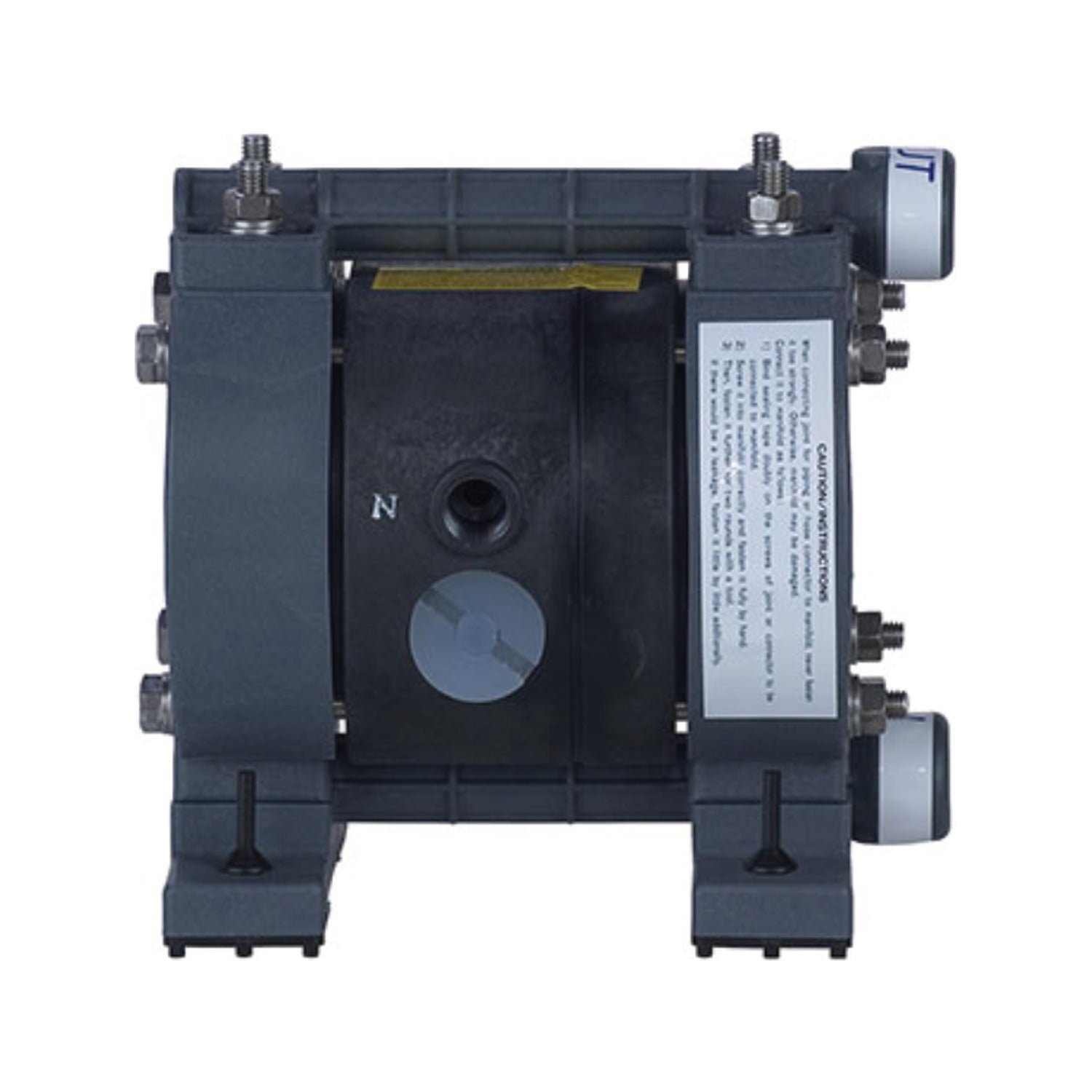

Yamada NDP-5FDT — 1/4" Groundable Acetal Diaphragm Pump, PTFE Diaphragm
Yamada NDP-5FDT — 1/4" Groundable Acetal Diaphragm Pump, PTFE Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
The NDP-5FDT covers 1/4" transfer duty as an air-operated double-diaphragm pump in groundable acetal, rated to 3.4 GPM. It handles fluid to 180°F (82°C).
The groundable acetal body dissipates static charge, which is what makes it the specification for flammable solvent transfer where a plastic pump is otherwise wanted. PTFE diaphragms and balls give near-universal chemical resistance, covering solvents, concentrated acids and oxidizers that destroy rubber elastomers, at the cost of a slightly lower displacement per stroke. Flat check valves are the right choice where the pump has to lift liquid rather than being fed by gravity.
Air drive means no electrics at the pump, seal-less operation with nothing to leak at a shaft, and safe stalling against a closed discharge.
Shipped from Texas with short lead times and strong pricing. If you are unsure which build fits your fluid, send us the application details and we will point you at the right part number.
| Brand | Yamada |
|---|---|
| Model / MPN | NDP-5FDT |
| Yamada item no. | 853781 |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | NDP-5 |
| Port size | 1/4" |
| Maximum flow | 3.4 GPM |
| Air supply pressure | 20-100 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Displacement per cycle | 0.0078 gal (29 cc) |
| Maximum dry suction lift | 5 ft |
| Maximum fluid temperature | 180°F (82°C) |
| Check valve type | Flat valve |
| Body / wetted materials | Groundable Acetal |
| Diaphragm material | PTFE |
| Ball material | PTFE |
| Air motor | Standard |
| Air inlet | 1/4” Female NPT |
| Air exhaust | 3/8” Female NPT |
