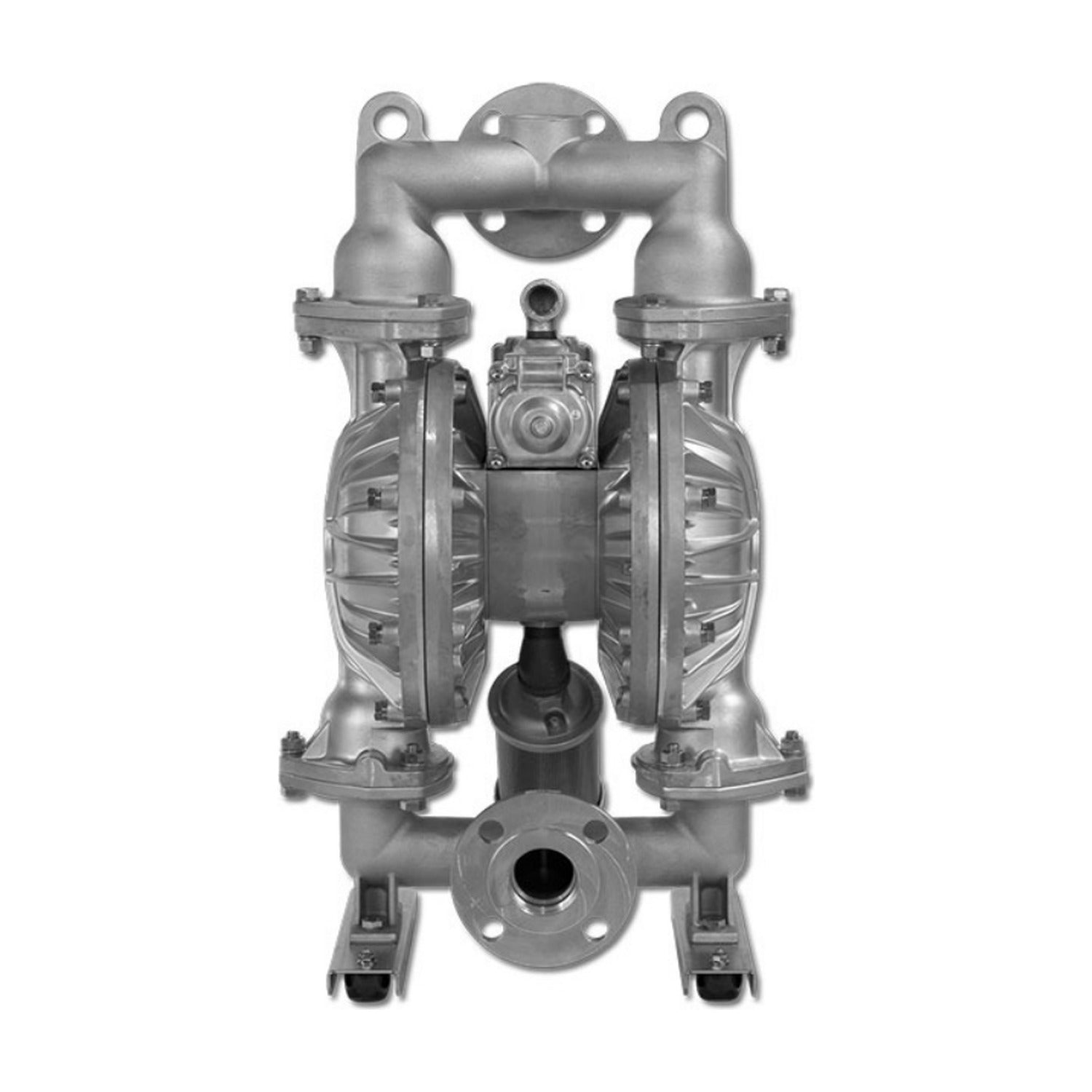

Yamada NDP-50FAN-FLAPPER — 2" Aluminum Diaphragm Pump, Buna-N Diaphragm
Yamada NDP-50FAN-FLAPPER — 2" Aluminum Diaphragm Pump, Buna-N Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
Yamada's NDP-50FAN-FLAPPER is a 2" AODD pump in aluminum, moving up to 164 GPM. It passes solids to 5/16" (8 mm) and handles fluid to 158°F (70°C).
The aluminum body suits solvents, fuels, oils and paints — the general-industrial fluids where a metal pump is wanted but stainless is more than the job needs. Buna-N diaphragms and balls suit petroleum oils, diesel, hydraulic fluid and greases, but should be kept away from ketones and strong oxidizers. Flat check valves are the right choice where the pump has to lift liquid rather than being fed by gravity.
Air drive means no electrics at the pump, seal-less operation with nothing to leak at a shaft, and safe stalling against a closed discharge.
Stocked and shipped from Texas with fast dispatch and competitive pricing. Send over your application details if you want the material selection checked before ordering.
| Brand | Yamada |
|---|---|
| Model / MPN | NDP-50FAN-FLAPPER |
| Yamada item no. | 854251 |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | NDP-50 |
| Port size | 2" |
| Maximum flow | 164 GPM |
| Air supply pressure | 20-100 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 5/16" (8 mm) |
| Displacement per cycle | Rubber 1.12 gal (4.25 L) |
| Maximum dry suction lift | 19 ft |
| Maximum fluid temperature | 158°F (70°C) |
| Check valve type | Flat valve |
| Body / wetted materials | Aluminum (ADC-12) |
| Diaphragm material | Buna-N (NBR) |
| Ball material | Buna-N (NBR) |
| Air motor | Standard |
| Air inlet | 3/4” Female NPT |
| Air exhaust | 1” Female NPT |
| Options | Flapper (flap valve) pump |
| Repair kit | K50-FMN |
