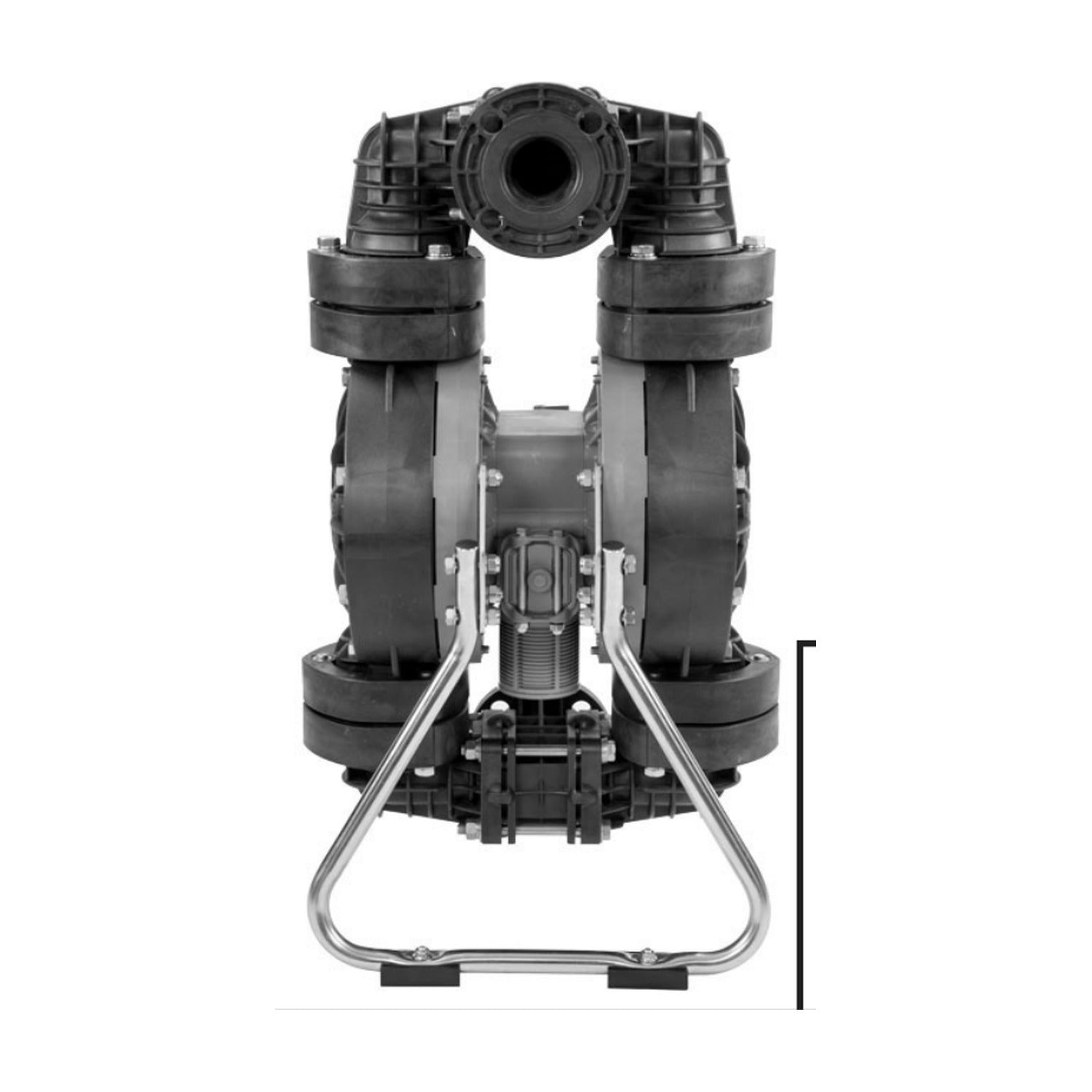

Yamada NDP-50BVW-PP — 2" Kynar PVDF Diaphragm Pump, Ultimate Diaphragm
Yamada NDP-50BVW-PP — 2" Kynar PVDF Diaphragm Pump, Ultimate Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
Yamada's NDP-50BVW-PP is a 2" AODD pump in kynar pvdf, moving up to 164 GPM. It passes solids to 5/16" (8 mm) and handles fluid to 212°F (100°C).
Kynar (PVDF) resists concentrated acids, halogens and aggressive solvents that attack polypropylene, and carries a higher temperature ceiling than PP. Yamada's Ultimate two-piece diaphragm pairs a PTFE wetted face with an elastomer backer, giving PTFE chemical resistance with markedly longer flex life than solid PTFE. Ball check valves are the right choice for flooded-suction installations.
The non-metallic center body and glass-filled polypropylene air motor cut weight and remove a corrosion path in wet or chemically aggressive areas. It self-primes, tolerates running dry, and stalls harmlessly against a closed valve, so it suits batching and intermittent transfer where a centrifugal pump would be a poor fit.
Shipped from Texas with short lead times and strong pricing. If you are unsure which build fits your fluid, send us the application details and we will point you at the right part number.
| Brand | Yamada |
|---|---|
| Model / MPN | NDP-50BVW-PP |
| Yamada item no. | 854850-U |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | NDP-50 |
| Port size | 2" |
| Maximum flow | 164 GPM |
| Air supply pressure | 20-100 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 5/16" (8 mm) |
| Displacement per cycle | Rubber 1.12 gal (4.25 L) |
| Maximum dry suction lift | 19 ft |
| Maximum fluid temperature | 212°F (100°C) |
| Check valve type | Ball valve |
| Body / wetted materials | Kynar (PVDF) |
| Diaphragm material | Ultimate |
| Ball material | Ultimate |
| Air motor | Glass-filled polypropylene (non-metallic center body) |
| Air inlet | 3/4” Female NPT |
| Air exhaust | 1” Female NPT |
| Options | Glass-filled polypropylene air motor / non-metallic center body |
| Repair kit | K50-VW |
