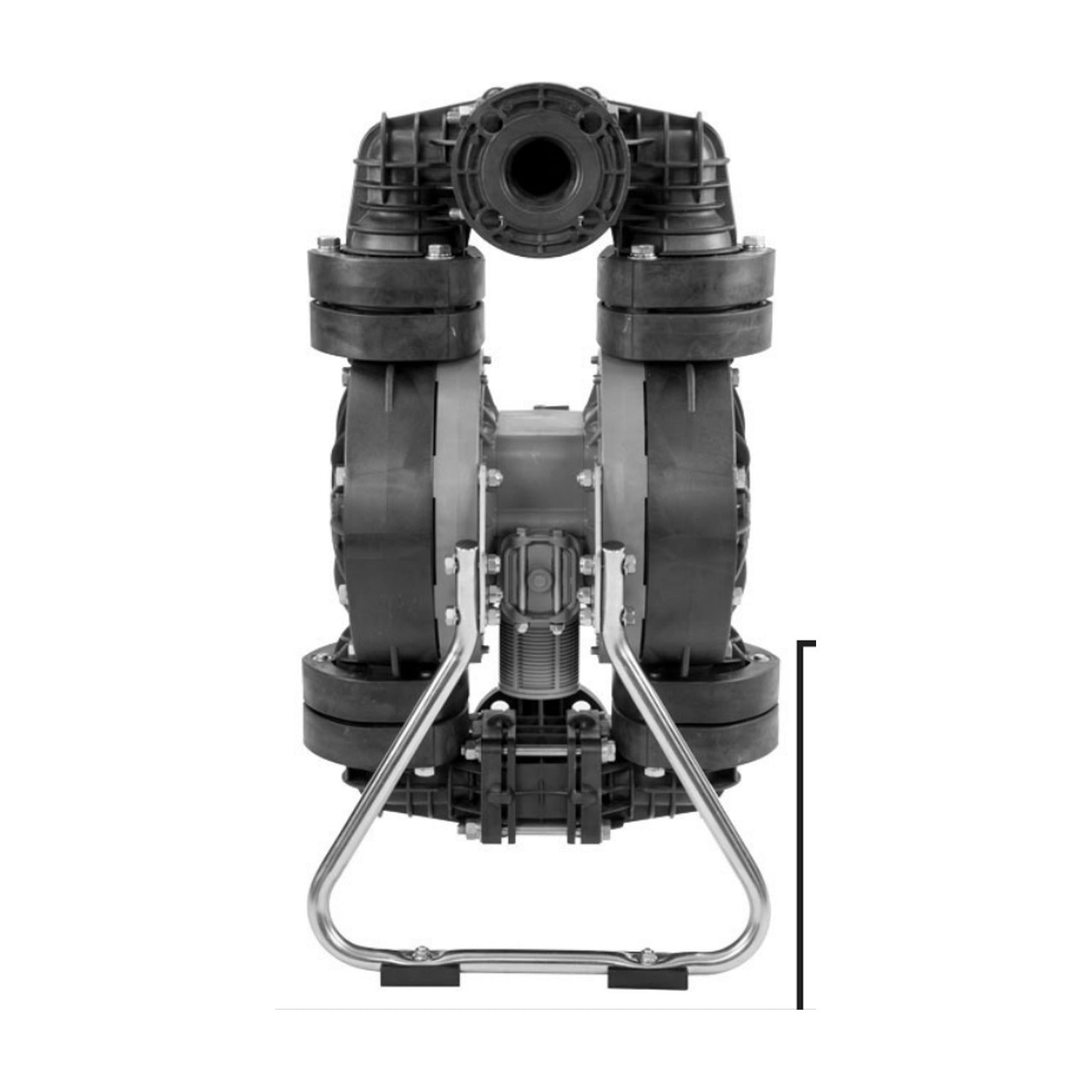

Yamada NDP-50BVV-PP — 2" Kynar PVDF Diaphragm Pump, Viton Diaphragm
Yamada NDP-50BVV-PP — 2" Kynar PVDF Diaphragm Pump, Viton Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
This NDP-50BVV-PP is a 2" NDP-50 air-operated diaphragm pump in kynar pvdf, rated to 164 GPM. It passes solids to 5/16" (8 mm) and handles fluid to 212°F (100°C).
Kynar (PVDF) resists concentrated acids, halogens and aggressive solvents that attack polypropylene, and carries a higher temperature ceiling than PP. Viton diaphragms and balls are chosen for aggressive chemicals and hot fluids — aromatic solvents, chlorinated hydrocarbons and concentrated acids. Ball check valves are the right choice for flooded-suction installations.
The non-metallic center body and glass-filled polypropylene air motor cut weight and remove a corrosion path in wet or chemically aggressive areas. It self-primes, tolerates running dry, and stalls harmlessly against a closed valve, so it suits batching and intermittent transfer where a centrifugal pump would be a poor fit.
Texas-based, with short lead times and pricing that reflects our supply position. Not sure this is the right build? Send us the fluid and duty and we will confirm.
| Brand | Yamada |
|---|---|
| Model / MPN | NDP-50BVV-PP |
| Yamada item no. | 854849 |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | NDP-50 |
| Port size | 2" |
| Maximum flow | 164 GPM |
| Air supply pressure | 20-100 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 5/16" (8 mm) |
| Displacement per cycle | Rubber 1.12 gal (4.25 L) |
| Maximum dry suction lift | 19 ft |
| Maximum fluid temperature | 212°F (100°C) |
| Check valve type | Ball valve |
| Body / wetted materials | Kynar (PVDF) |
| Diaphragm material | Viton (FKM) |
| Ball material | Viton (FKM) |
| Air motor | Glass-filled polypropylene (non-metallic center body) |
| Air inlet | 3/4” Female NPT |
| Air exhaust | 1” Female NPT |
| Options | Glass-filled polypropylene air motor / non-metallic center body |
| Repair kit | K50-VV |
