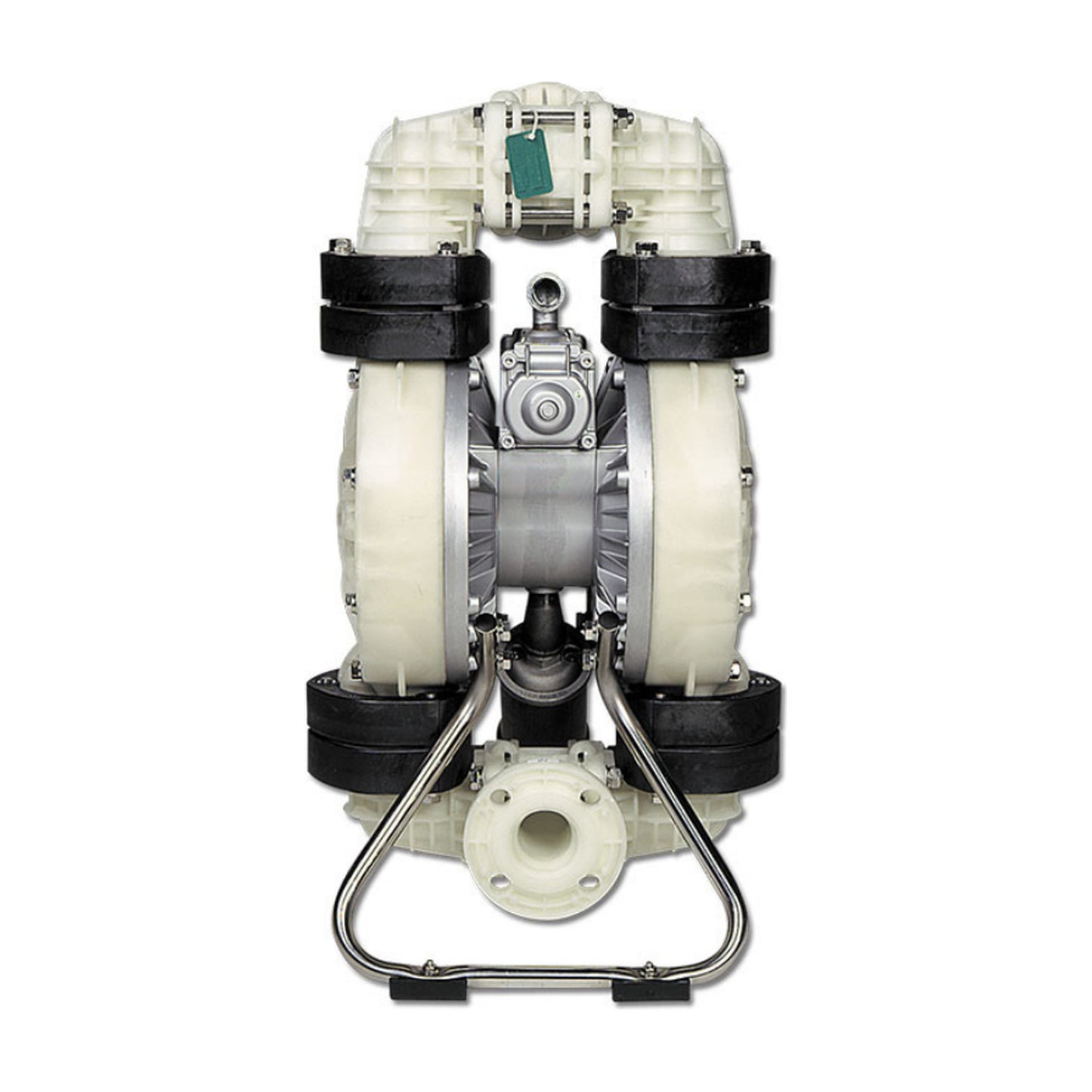

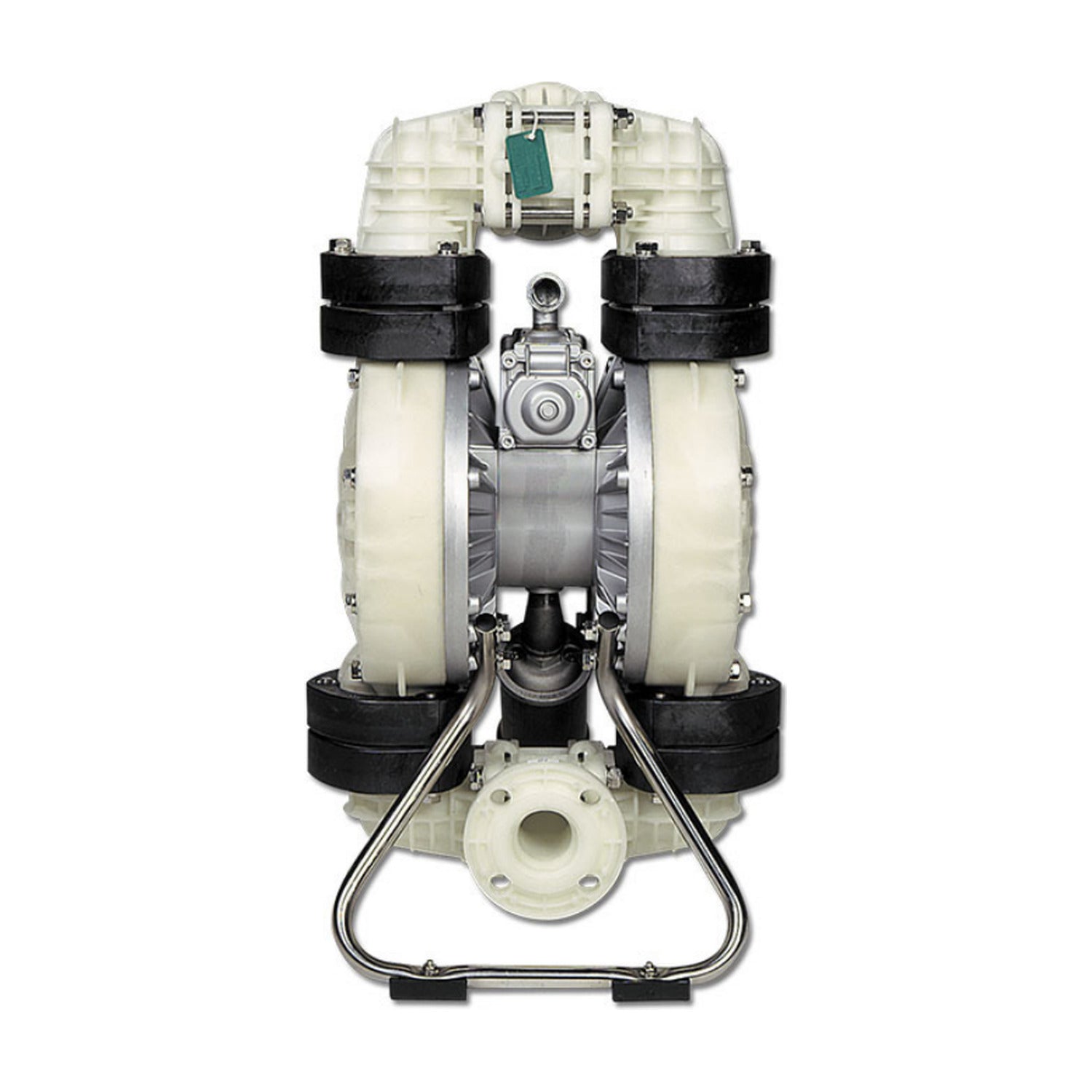

Yamada NDP-50BVE — 2" Kynar PVDF Diaphragm Pump, EPDM Diaphragm
Yamada NDP-50BVE — 2" Kynar PVDF Diaphragm Pump, EPDM Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
The NDP-50BVE covers 2" transfer duty as an air-operated double-diaphragm pump in kynar pvdf, rated to 164 GPM. It passes solids to 5/16" (8 mm) and handles fluid to 212°F (100°C).
PVDF construction handles the aggressive oxidising chemistry — chlorine, bromine, strong mineral acids — where polypropylene reaches its limit. EPDM diaphragms and balls handle acids, caustics, ketones and alcohols well — but not petroleum products, which swell the elastomer. Ball check valves are the right choice for flooded-suction installations.
The pump self-primes, handles a degree of entrained air, and holds pressure when stalled, which makes it forgiving on transfer duty that starts and stops.
Stocked and shipped from Texas with fast dispatch and competitive pricing. Send over your application details if you want the material selection checked before ordering.
| Brand | Yamada |
|---|---|
| Model / MPN | NDP-50BVE |
| Yamada item no. | 852813 |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | NDP-50 |
| Port size | 2" |
| Maximum flow | 164 GPM |
| Air supply pressure | 20-100 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 5/16" (8 mm) |
| Displacement per cycle | Rubber 1.12 gal (4.25 L) |
| Maximum dry suction lift | 19 ft |
| Maximum fluid temperature | 212°F (100°C) |
| Check valve type | Ball valve |
| Body / wetted materials | Kynar (PVDF) |
| Diaphragm material | Nordel (EPDM) |
| Ball material | Nordel (EPDM) |
| Air motor | Standard |
| Air inlet | 3/4” Female NPT |
| Air exhaust | 1” Female NPT |
| Repair kit | K50-VE |
