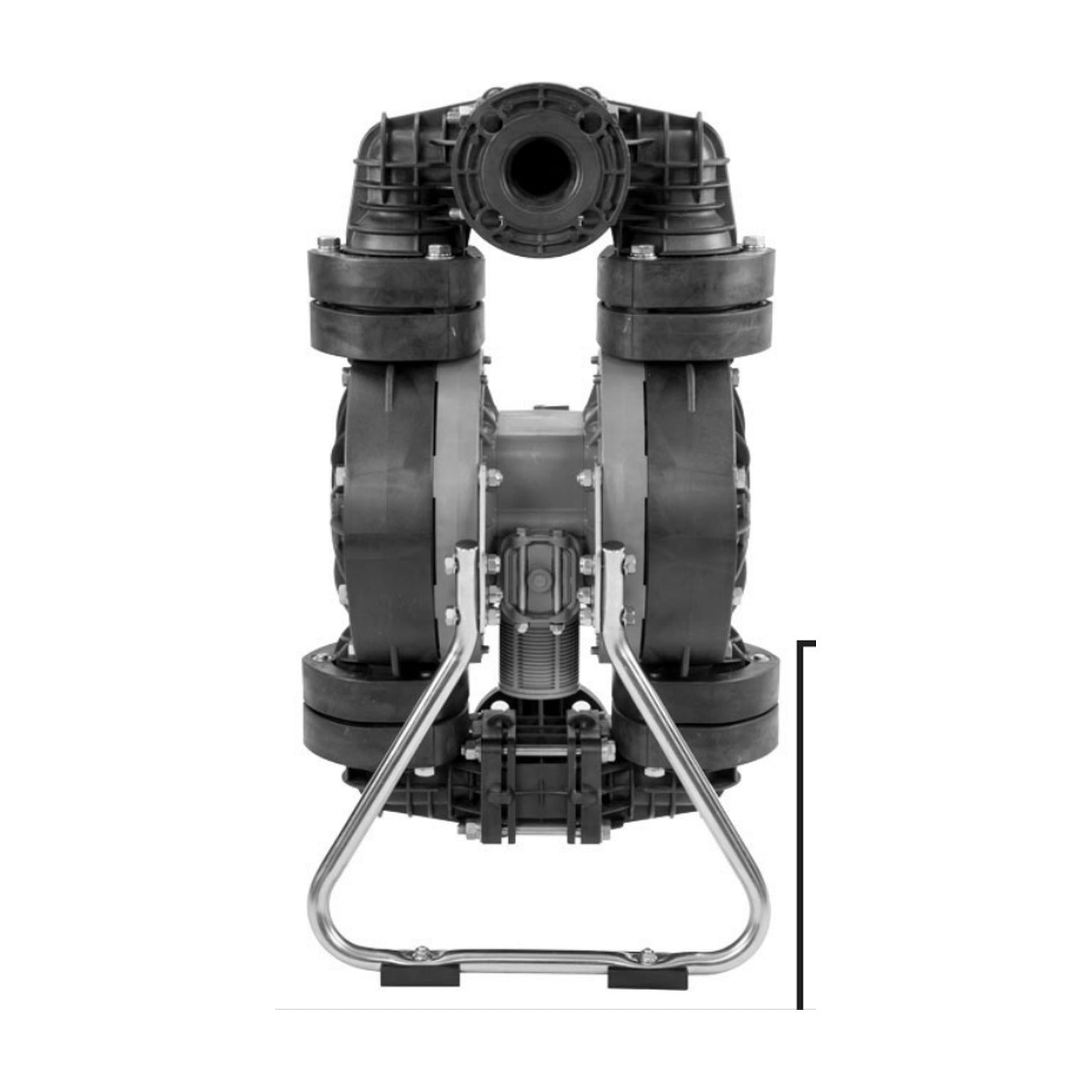

Yamada NDP-50BPS-PP — 2" Polypropylene Diaphragm Pump, Santoprene Diaphragm
Yamada NDP-50BPS-PP — 2" Polypropylene Diaphragm Pump, Santoprene Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
Yamada's NDP-50BPS-PP is a 2" AODD pump in polypropylene, moving up to 164 GPM. It passes solids to 5/16" (8 mm) and handles fluid to 180°F (82°C).
The glass-filled polypropylene wetted path resists most acids, caustics and salt solutions, which is why plastic-bodied units dominate plating lines, water treatment and chemical dosing. Santoprene diaphragms and balls offer broad chemical compatibility with a long flex life, and are usually the best value where the duty cycle is heavy. Ball check valves are the right choice for flooded-suction installations.
The non-metallic center body and glass-filled polypropylene air motor cut weight and remove a corrosion path in wet or chemically aggressive areas. Air drive means no electrics at the pump, seal-less operation with nothing to leak at a shaft, and safe stalling against a closed discharge.
We ship from Texas, quote honest lead times and price sharply. Tell us the fluid, temperature and flow you need and we will confirm the right configuration before you order.
| Brand | Yamada |
|---|---|
| Model / MPN | NDP-50BPS-PP |
| Yamada item no. | 854842 |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | NDP-50 |
| Port size | 2" |
| Maximum flow | 164 GPM |
| Air supply pressure | 20-100 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 5/16" (8 mm) |
| Displacement per cycle | Rubber 1.12 gal (4.25 L) |
| Maximum dry suction lift | 19 ft |
| Maximum fluid temperature | 180°F (82°C) |
| Check valve type | Ball valve |
| Body / wetted materials | Polypropylene (PPG) |
| Diaphragm material | Santoprene (TPO) |
| Ball material | Santoprene (TPO) |
| Air motor | Glass-filled polypropylene (non-metallic center body) |
| Air inlet | 3/4” Female NPT |
| Air exhaust | 1” Female NPT |
| Options | Glass-filled polypropylene air motor / non-metallic center body |
| Repair kit | K50-PS |
