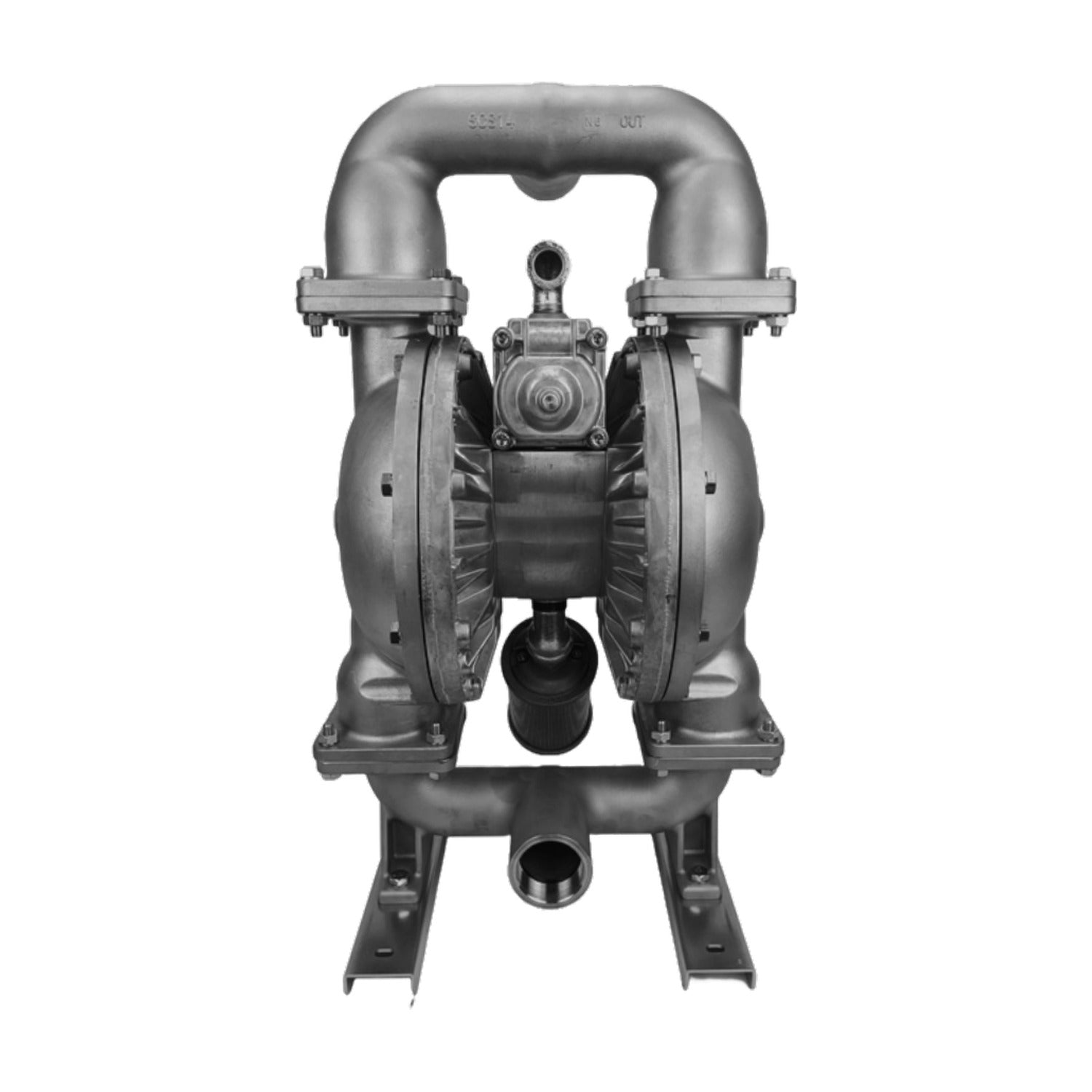

Yamada NDP-500BSE-NPT — 2" Stainless Steel Diaphragm Pump, EPDM Diaphragm
Yamada NDP-500BSE-NPT — 2" Stainless Steel Diaphragm Pump, EPDM Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
The Yamada NDP-500BSE-NPT is a 2" air-operated double-diaphragm pump in stainless steel, rated to 226 GPM. It passes solids to 5/16" (8 mm) and handles fluid to 212°F (100°C).
A 316 stainless wetted path resists chlorides, organic acids and most process chemicals, and is the standard specification wherever wash-down or product purity matters. EPDM diaphragms and balls handle acids, caustics, ketones and alcohols well — but not petroleum products, which swell the elastomer. Ball check valves are the right choice for flooded-suction installations.
Supplied with NPT threaded connections. Being air-driven, it needs no motor starter or electrical classification at the pump, self-primes from dry, and can be dead-headed and left stalled under pressure.
Stocked and shipped from Texas with fast dispatch and competitive pricing. Send over your application details if you want the material selection checked before ordering.
| Brand | Yamada |
|---|---|
| Model / MPN | NDP-500BSE-NPT |
| Yamada item no. | 855399 |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | NDP-500 |
| Port size | 2" |
| Maximum flow | 226 GPM |
| Air supply pressure | 20-125 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 5/16" (8 mm) |
| Displacement per cycle | Rubber 1.14 gal / Thermoplastic 1.22 gal / PTFE 0.70 gal |
| Maximum dry suction lift | 18 ft |
| Maximum fluid temperature | 212°F (100°C) |
| Check valve type | Ball valve |
| Body / wetted materials | Stainless Steel (316) |
| Diaphragm material | Nordel (EPDM) |
| Ball material | Nordel (EPDM) |
| Air motor | Standard |
| Air inlet | 3/4” Female NPT |
| Air exhaust | 1” Female NPT |
| Options | NPT connection |
| Repair kit | K50-ME |
