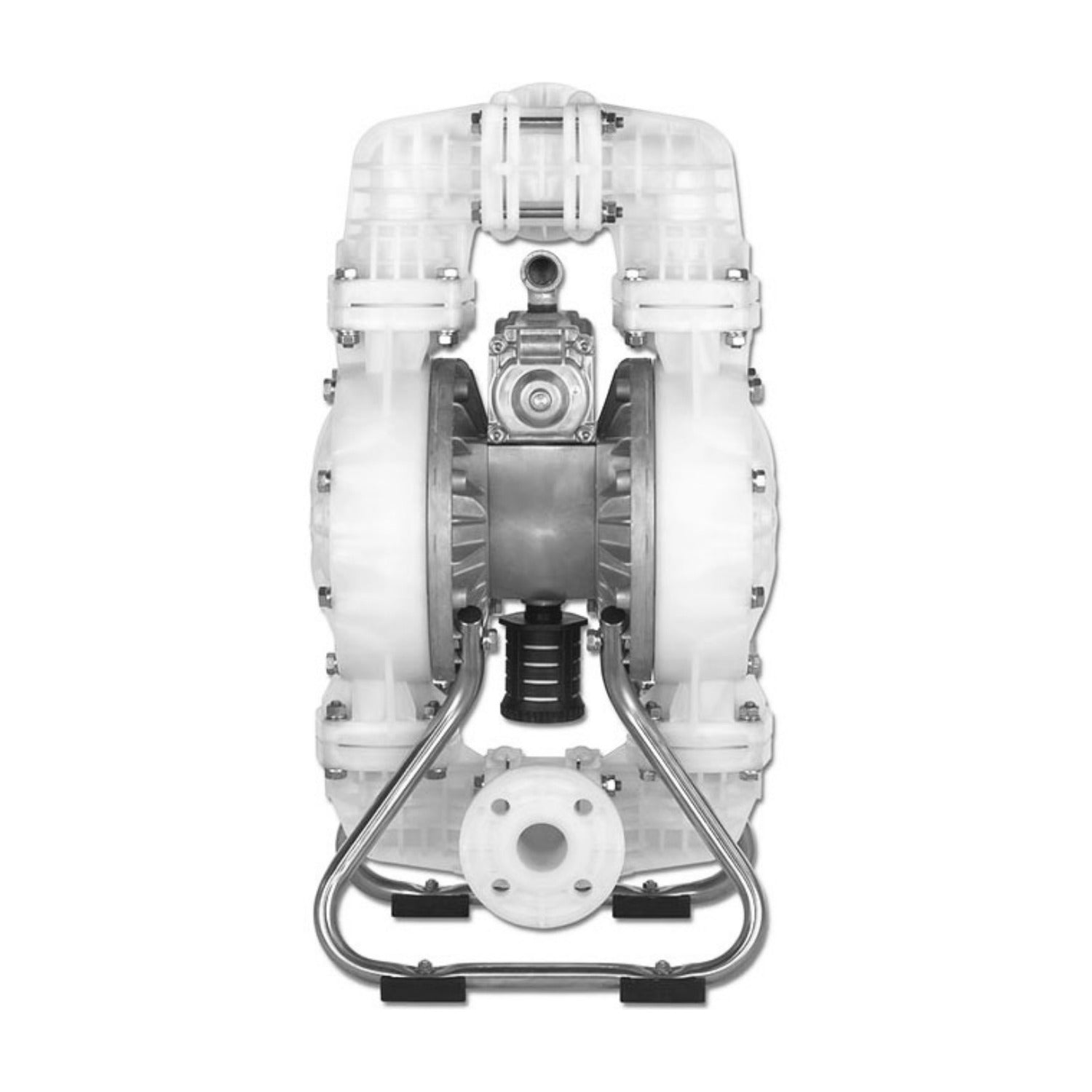

Yamada NDP-40BVW — 1-1/2" Kynar PVDF Diaphragm Pump, Ultimate Diaphragm
Yamada NDP-40BVW — 1-1/2" Kynar PVDF Diaphragm Pump, Ultimate Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
The NDP-40BVW covers 1-1/2" transfer duty as an air-operated double-diaphragm pump in kynar pvdf, rated to 107 GPM. It passes solids to 9/32" (7 mm) and handles fluid to 212°F (100°C).
PVDF construction handles the aggressive oxidising chemistry — chlorine, bromine, strong mineral acids — where polypropylene reaches its limit. Yamada's Ultimate two-piece diaphragm pairs a PTFE wetted face with an elastomer backer, giving PTFE chemical resistance with markedly longer flex life than solid PTFE. Ball check valves are the right choice for flooded-suction installations.
Air drive means no electrics at the pump, seal-less operation with nothing to leak at a shaft, and safe stalling against a closed discharge.
Texas-based, with short lead times and pricing that reflects our supply position. Not sure this is the right build? Send us the fluid and duty and we will confirm.
| Brand | Yamada |
|---|---|
| Model / MPN | NDP-40BVW |
| Yamada item no. | 853797-U |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | NDP-40 |
| Port size | 1-1/2" |
| Maximum flow | 107 GPM |
| Air supply pressure | 20-100 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 9/32" (7 mm) |
| Displacement per cycle | Rubber 0.73 gal (2.74 L) |
| Maximum dry suction lift | 18 ft |
| Maximum fluid temperature | 212°F (100°C) |
| Check valve type | Ball valve |
| Body / wetted materials | Kynar (PVDF) |
| Diaphragm material | Ultimate |
| Ball material | Ultimate |
| Air motor | Standard |
| Air inlet | 1/2" Female NPT |
| Air exhaust | 1" Female NPT |
| Repair kit | K40-VW |
