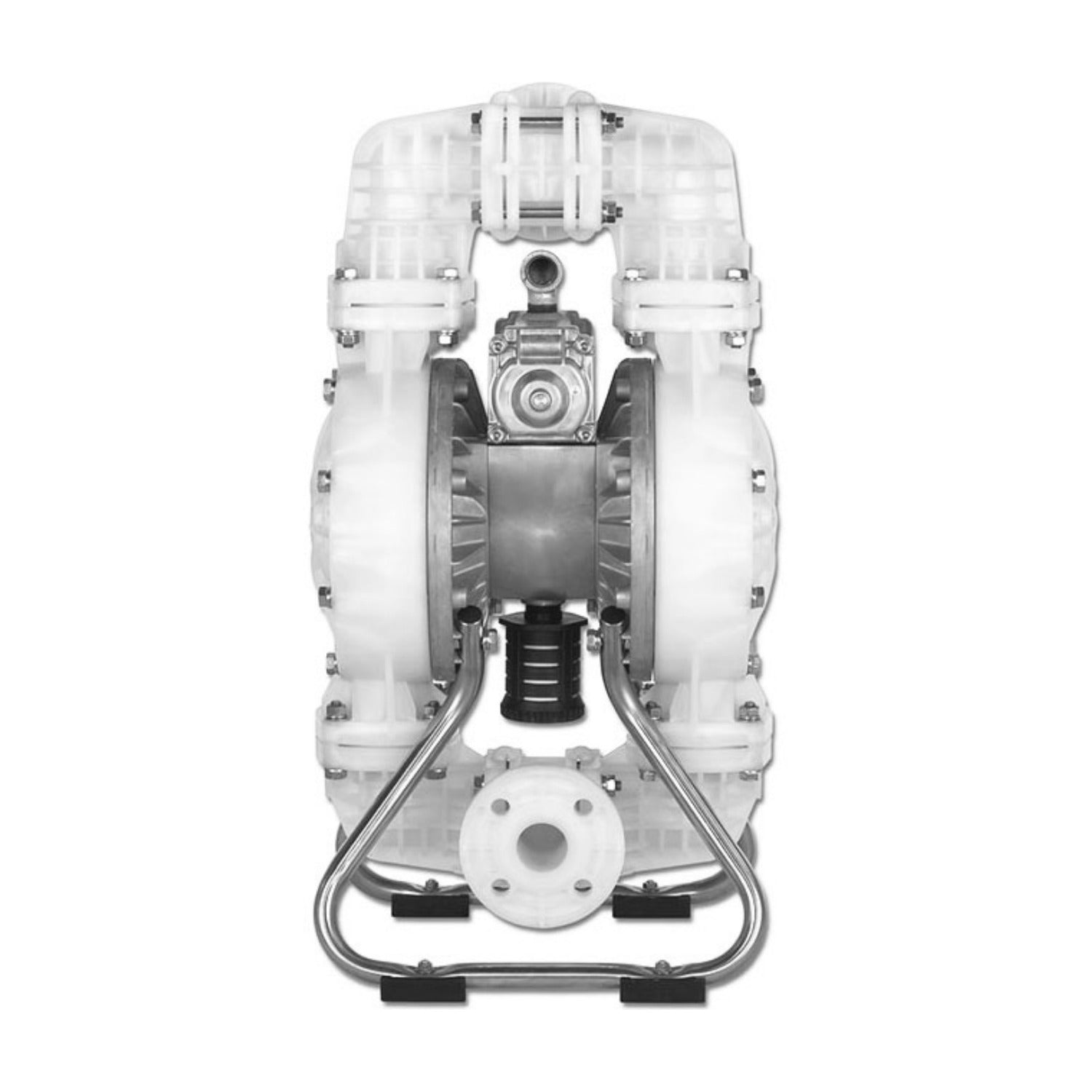

Yamada NDP-40BVT — 1-1/2" Kynar PVDF Diaphragm Pump, PTFE Diaphragm
Yamada NDP-40BVT — 1-1/2" Kynar PVDF Diaphragm Pump, PTFE Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
The NDP-40BVT covers 1-1/2" transfer duty as an air-operated double-diaphragm pump in kynar pvdf, rated to 107 GPM. It passes solids to 9/32" (7 mm) and handles fluid to 212°F (100°C).
The Kynar PVDF wetted path is specified for concentrated sulfuric, hydrochloric and nitric service, and for hot chemicals beyond what polypropylene tolerates. PTFE diaphragms and balls give near-universal chemical resistance, covering solvents, concentrated acids and oxidizers that destroy rubber elastomers, at the cost of a slightly lower displacement per stroke. Ball check valves are the right choice for flooded-suction installations.
It runs on plant air with no electrical supply at the pump, self-primes, and will sit stalled against a closed discharge without damage — useful on intermittent or dead-headed duty.
We ship from Texas, quote honest lead times and price sharply. Tell us the fluid, temperature and flow you need and we will confirm the right configuration before you order.
| Brand | Yamada |
|---|---|
| Model / MPN | NDP-40BVT |
| Yamada item no. | 853797 |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | NDP-40 |
| Port size | 1-1/2" |
| Maximum flow | 107 GPM |
| Air supply pressure | 20-100 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 9/32" (7 mm) |
| Displacement per cycle | Rubber 0.73 gal (2.74 L) |
| Maximum dry suction lift | 18 ft |
| Maximum fluid temperature | 212°F (100°C) |
| Check valve type | Ball valve |
| Body / wetted materials | Kynar (PVDF) |
| Diaphragm material | PTFE |
| Ball material | PTFE |
| Air motor | Standard |
| Air inlet | 1/2" Female NPT |
| Air exhaust | 1" Female NPT |
| Repair kit | K40-VT-1 |
