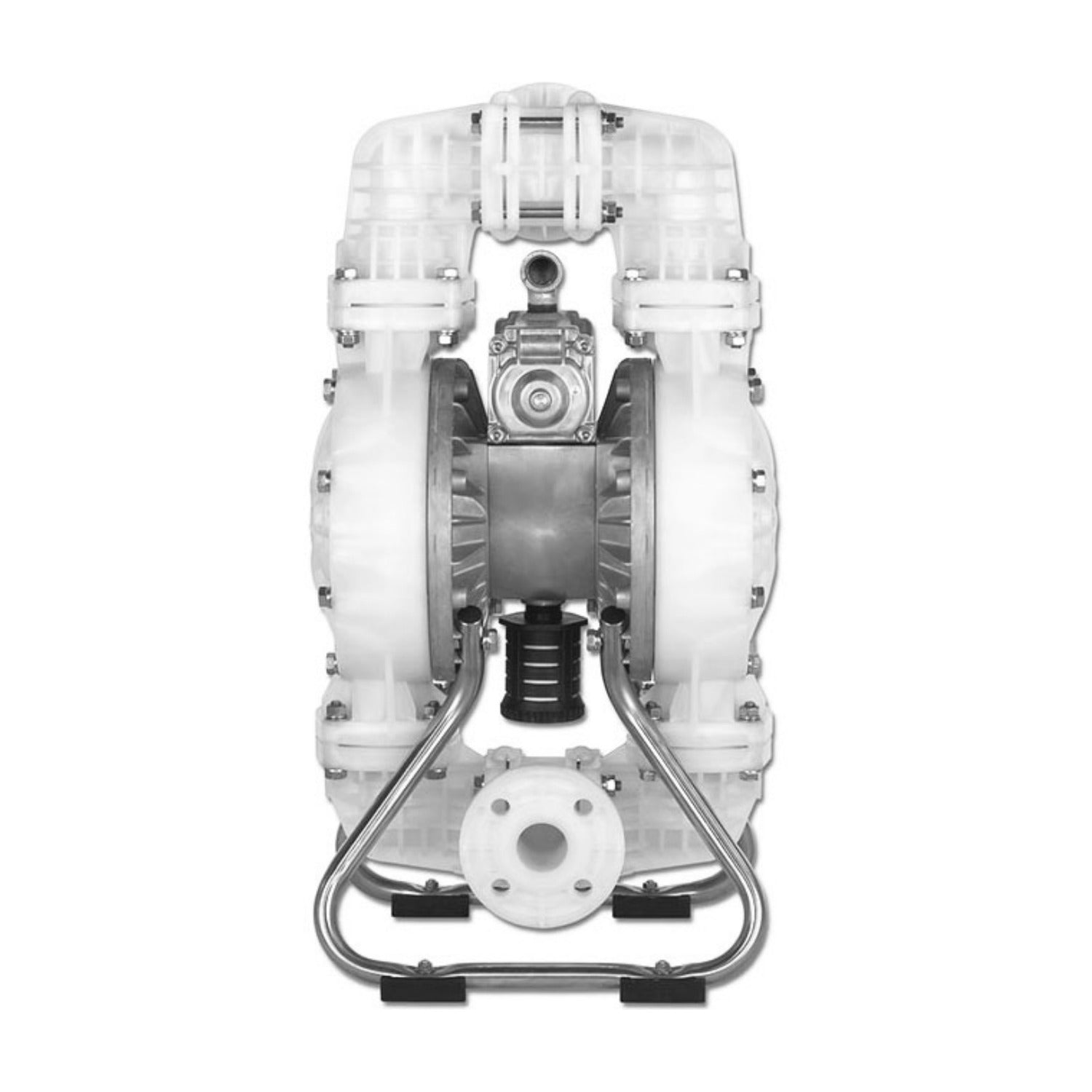

Yamada NDP-40BVS — 1-1/2" Kynar PVDF Diaphragm Pump, Santoprene Diaphragm
Yamada NDP-40BVS — 1-1/2" Kynar PVDF Diaphragm Pump, Santoprene Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
The NDP-40BVS covers 1-1/2" transfer duty as an air-operated double-diaphragm pump in kynar pvdf, rated to 107 GPM. It passes solids to 9/32" (7 mm) and handles fluid to 180°F (82°C).
PVDF construction handles the aggressive oxidising chemistry — chlorine, bromine, strong mineral acids — where polypropylene reaches its limit. Santoprene diaphragms and balls offer broad chemical compatibility with a long flex life, and are usually the best value where the duty cycle is heavy. Ball check valves are the right choice for flooded-suction installations.
It runs on plant air with no electrical supply at the pump, self-primes, and will sit stalled against a closed discharge without damage — useful on intermittent or dead-headed duty.
We ship from Texas, quote honest lead times and price sharply. Tell us the fluid, temperature and flow you need and we will confirm the right configuration before you order.
| Brand | Yamada |
|---|---|
| Model / MPN | NDP-40BVS |
| Yamada item no. | 853798 |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | NDP-40 |
| Port size | 1-1/2" |
| Maximum flow | 107 GPM |
| Air supply pressure | 20-100 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 9/32" (7 mm) |
| Displacement per cycle | Rubber 0.73 gal (2.74 L) |
| Maximum dry suction lift | 18 ft |
| Maximum fluid temperature | 180°F (82°C) |
| Check valve type | Ball valve |
| Body / wetted materials | Kynar (PVDF) |
| Diaphragm material | Santoprene (TPO) |
| Ball material | Santoprene (TPO) |
| Air motor | Standard |
| Air inlet | 1/2" Female NPT |
| Air exhaust | 1" Female NPT |
| Repair kit | K40-VS-1 |
