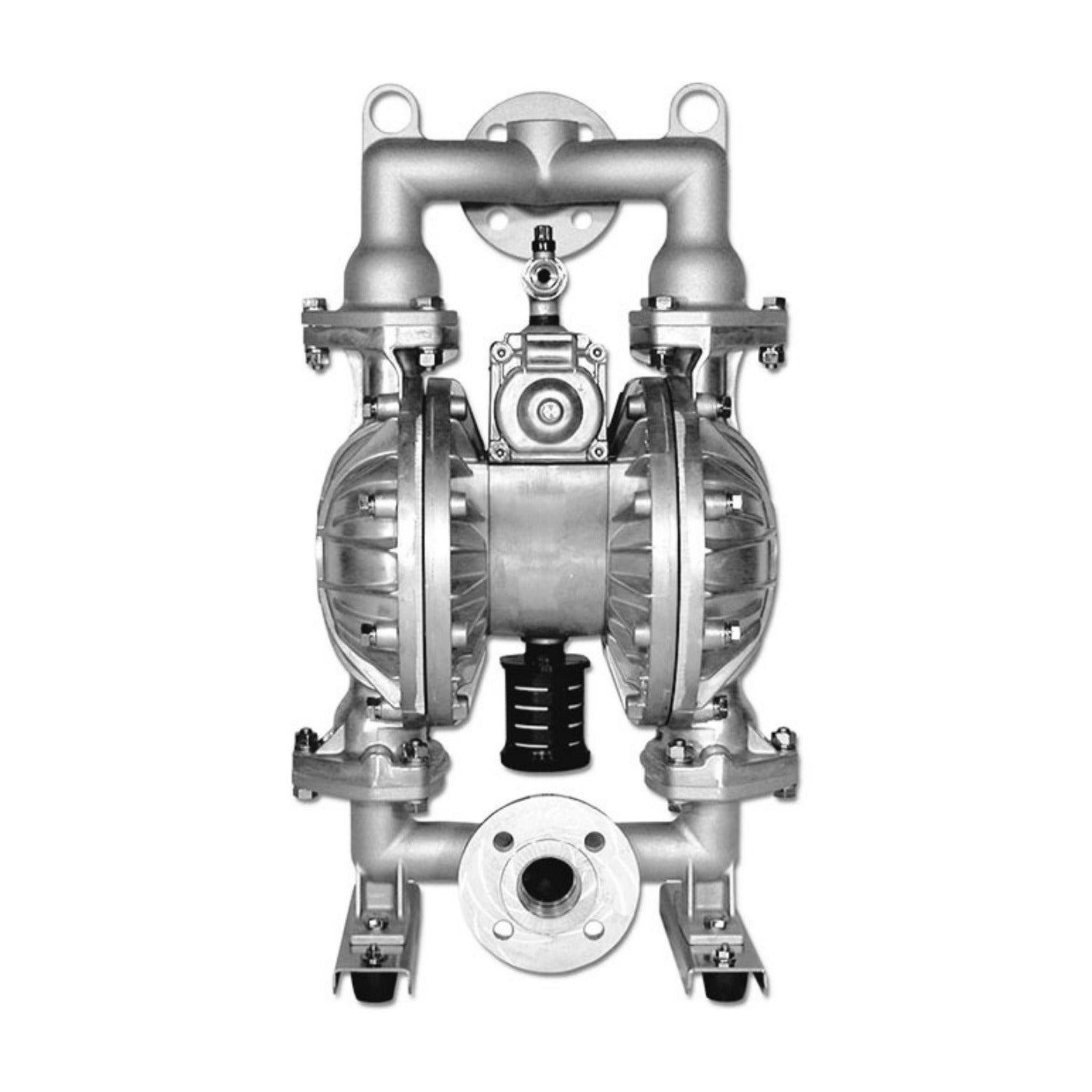

Yamada NDP-40BAV — 1-1/2" Aluminum Diaphragm Pump, Viton Diaphragm
Yamada NDP-40BAV — 1-1/2" Aluminum Diaphragm Pump, Viton Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
The Yamada NDP-40BAV is a 1-1/2" air-operated double-diaphragm pump in aluminum, rated to 107 GPM. It passes solids to 9/32" (7 mm) and handles fluid to 248°F (120°C).
The aluminum body suits solvents, fuels, oils and paints — the general-industrial fluids where a metal pump is wanted but stainless is more than the job needs. Viton diaphragms and balls are chosen for aggressive chemicals and hot fluids — aromatic solvents, chlorinated hydrocarbons and concentrated acids. Ball check valves are the right choice for flooded-suction installations.
The pump self-primes, handles a degree of entrained air, and holds pressure when stalled, which makes it forgiving on transfer duty that starts and stops.
Texas-based, with short lead times and pricing that reflects our supply position. Not sure this is the right build? Send us the fluid and duty and we will confirm.
| Brand | Yamada |
|---|---|
| Model / MPN | NDP-40BAV |
| Yamada item no. | 852300 |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | NDP-40 |
| Port size | 1-1/2" |
| Maximum flow | 107 GPM |
| Air supply pressure | 20-100 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 9/32" (7 mm) |
| Displacement per cycle | Rubber 0.73 gal (2.74 L) |
| Maximum dry suction lift | 18 ft |
| Maximum fluid temperature | 248°F (120°C) |
| Check valve type | Ball valve |
| Body / wetted materials | Aluminum (ADC-12) |
| Diaphragm material | Viton (FKM) |
| Ball material | Viton (FKM) |
| Air motor | Standard |
| Air inlet | 1/2" Female NPT |
| Air exhaust | 1" Female NPT |
| Repair kit | K40-MV |
