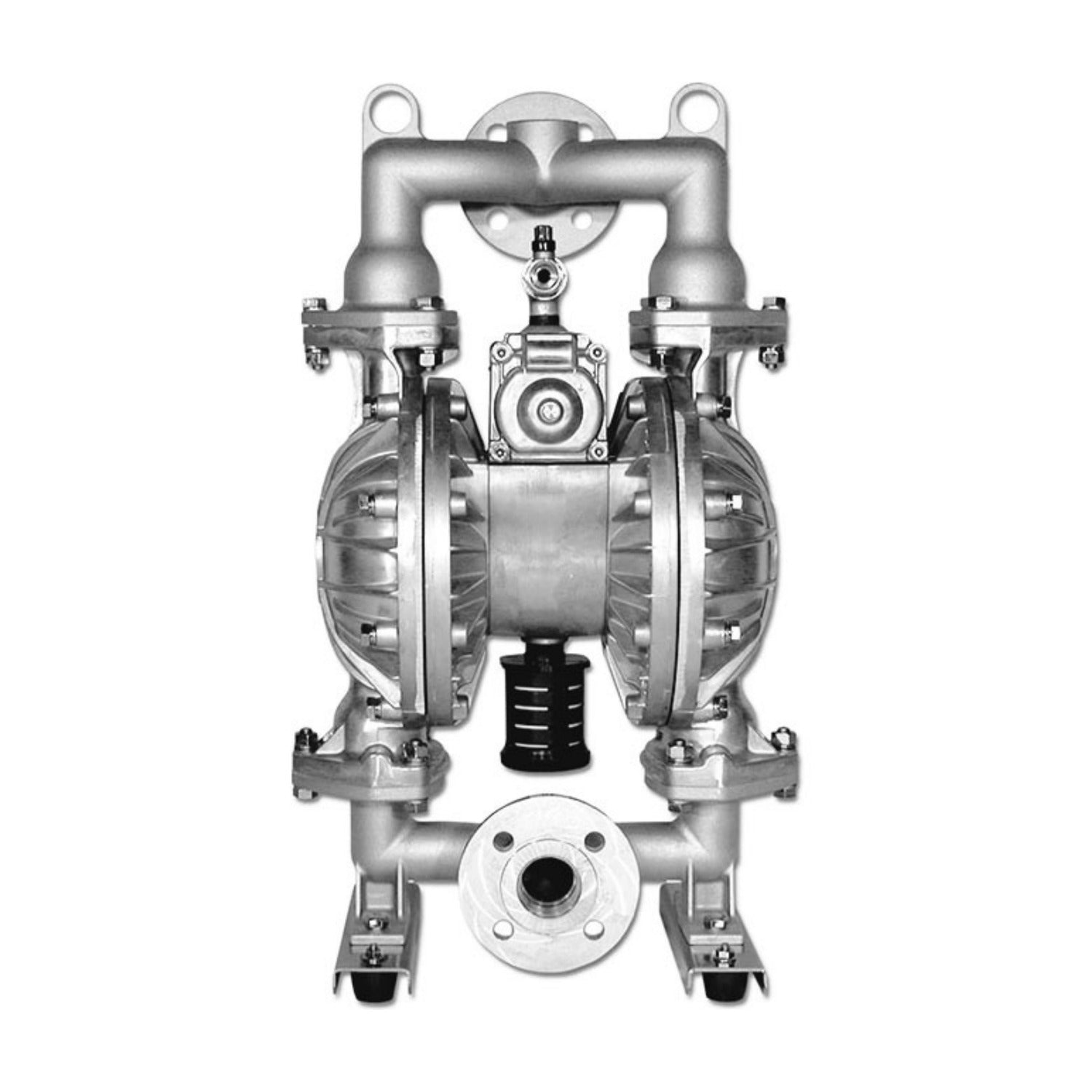

Yamada NDP-40BAE — 1-1/2" Aluminum Diaphragm Pump, EPDM Diaphragm
Yamada NDP-40BAE — 1-1/2" Aluminum Diaphragm Pump, EPDM Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
This NDP-40BAE is a 1-1/2" NDP-40 air-operated diaphragm pump in aluminum, rated to 107 GPM. It passes solids to 9/32" (7 mm) and handles fluid to 212°F (100°C).
Aluminium construction handles solvents, lubricating oils and hydrocarbon-based fluids well, and takes mechanical abuse better than a plastic body in a busy plant. EPDM diaphragms and balls handle acids, caustics, ketones and alcohols well — but not petroleum products, which swell the elastomer. Ball check valves are the right choice for flooded-suction installations.
Being air-driven, it needs no motor starter or electrical classification at the pump, self-primes from dry, and can be dead-headed and left stalled under pressure.
Ordered online, shipped from Texas, priced well and backed by US support before and after the sale. Send us your application details if you want a second opinion on materials.
| Brand | Yamada |
|---|---|
| Model / MPN | NDP-40BAE |
| Yamada item no. | 852418 |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | NDP-40 |
| Port size | 1-1/2" |
| Maximum flow | 107 GPM |
| Air supply pressure | 20-100 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 9/32" (7 mm) |
| Displacement per cycle | Rubber 0.73 gal (2.74 L) |
| Maximum dry suction lift | 18 ft |
| Maximum fluid temperature | 212°F (100°C) |
| Check valve type | Ball valve |
| Body / wetted materials | Aluminum (ADC-12) |
| Diaphragm material | Nordel (EPDM) |
| Ball material | Nordel (EPDM) |
| Air motor | Standard |
| Air inlet | 1/2" Female NPT |
| Air exhaust | 1" Female NPT |
| Repair kit | K40-ME |
