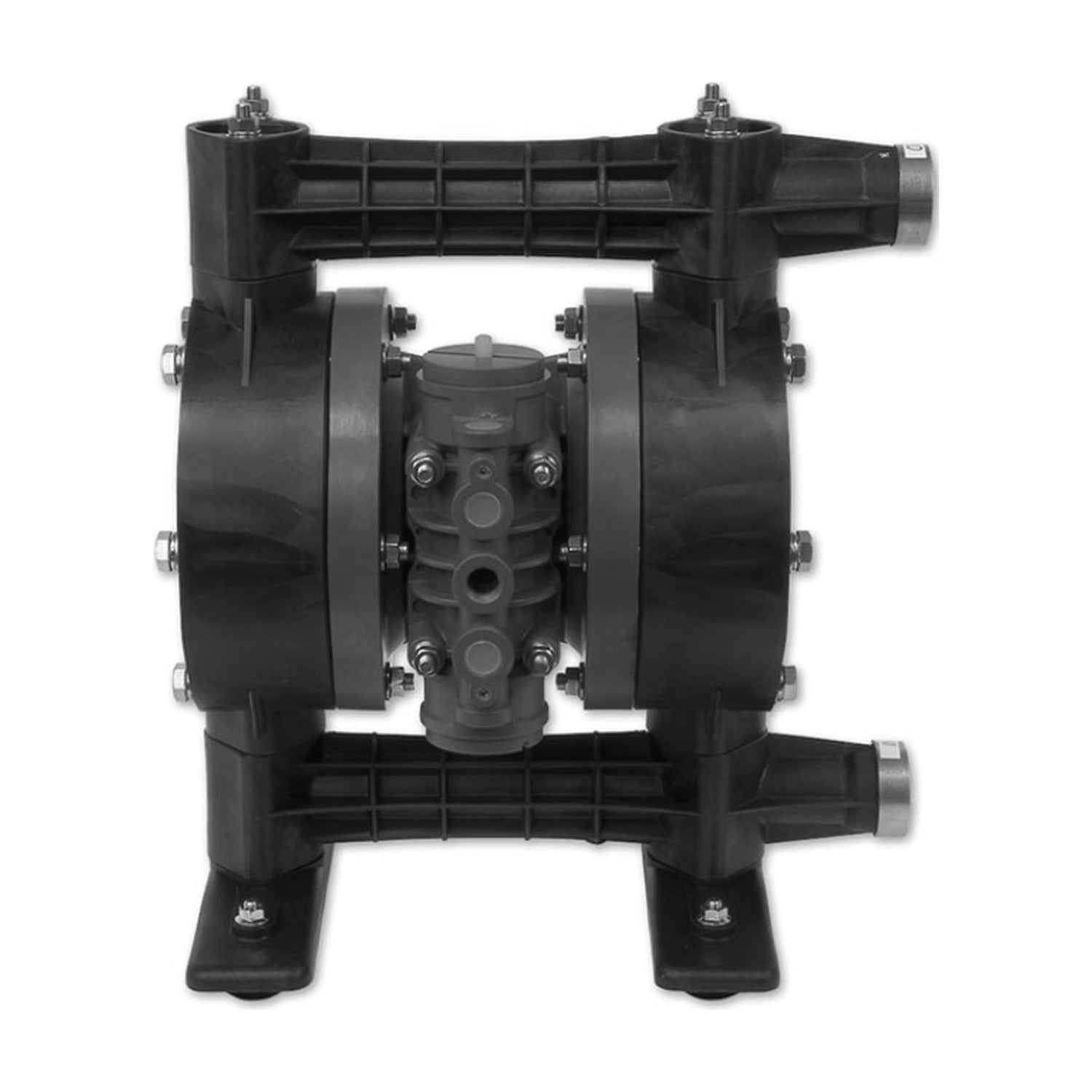

Yamada NDP-25BVH-PN — 1" Kynar PVDF Diaphragm Pump, Hytrel Diaphragm
Yamada NDP-25BVH-PN — 1" Kynar PVDF Diaphragm Pump, Hytrel Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
Yamada builds the NDP-25BVH-PN as a 1" double-diaphragm pump in kynar pvdf, capable of 46.2 GPM. It passes solids to 1/8" (3 mm) and handles fluid to 212°F (100°C).
Kynar (PVDF) resists concentrated acids, halogens and aggressive solvents that attack polypropylene, and carries a higher temperature ceiling than PP. Hytrel diaphragms and balls carry the highest temperature rating in the range and resist abrasion well, which suits hot oils and particulate-bearing fluids. Ball check valves are the right choice for flooded-suction installations.
Air drive means no electrics at the pump, seal-less operation with nothing to leak at a shaft, and safe stalling against a closed discharge.
Stocked and shipped from Texas with fast dispatch and competitive pricing. Send over your application details if you want the material selection checked before ordering.
| Brand | Yamada |
|---|---|
| Model / MPN | NDP-25BVH-PN |
| Yamada item no. | 854959 |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | NDP-25 |
| Port size | 1" |
| Maximum flow | 46.2 GPM |
| Air supply pressure | 20-100 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 1/8" (3 mm) |
| Displacement per cycle | Rubber 0.22 gal (833 cc) |
| Maximum dry suction lift | 18 ft |
| Maximum fluid temperature | 212°F (100°C) |
| Check valve type | Ball valve |
| Body / wetted materials | Kynar (PVDF) |
| Diaphragm material | Hytrel (TPE) |
| Ball material | Hytrel (TPE) |
| Air motor | Standard |
| Air inlet | 3/8” Female NPT |
| Air exhaust | 3/4” Female NPT |
| Options | Glass-filled polypropylene air motor (Kynar) |
| Repair kit | K25-VH-PP |
