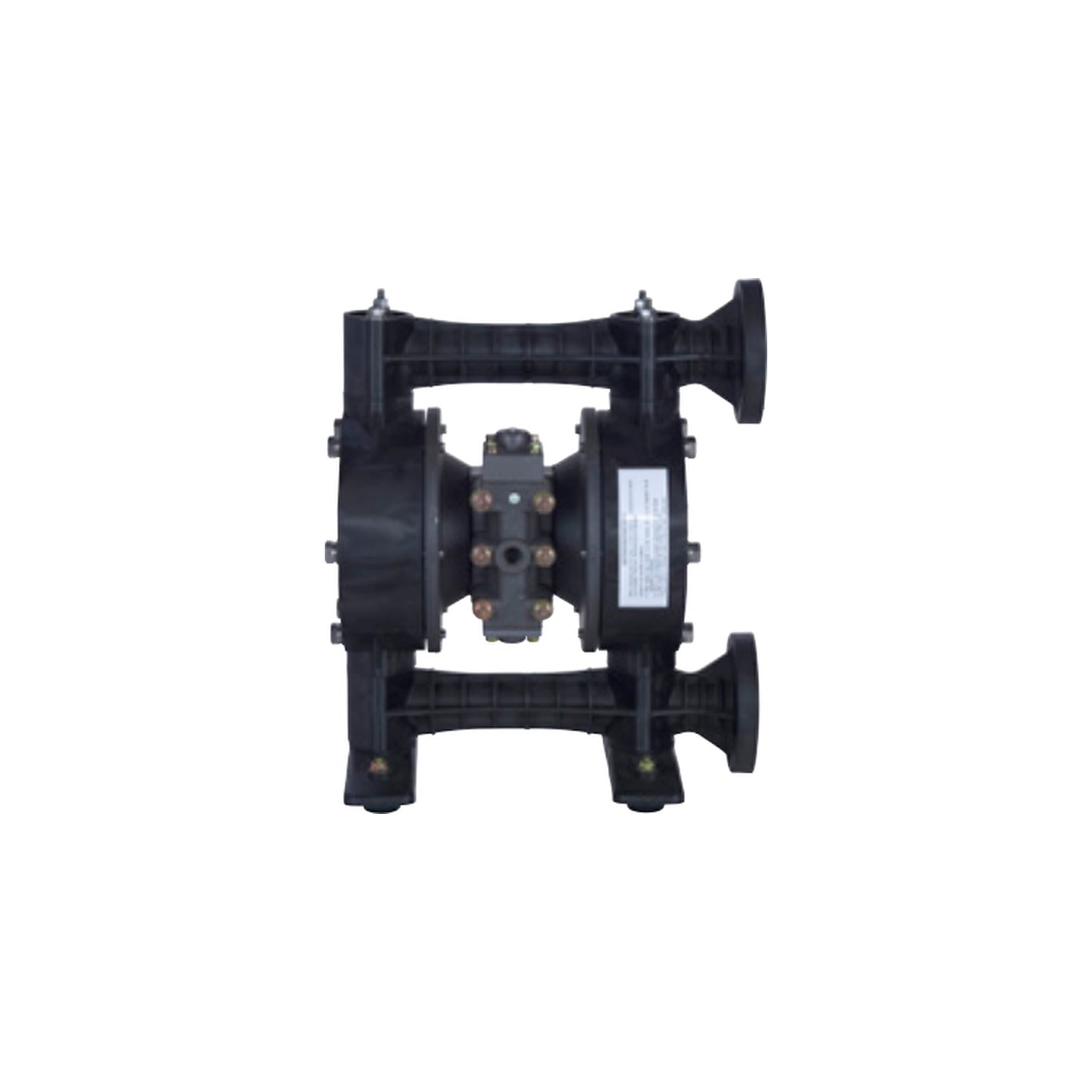

Yamada NDP-25BVH-FLANGE — 1" Kynar PVDF Diaphragm Pump, Hytrel Diaphragm
Yamada NDP-25BVH-FLANGE — 1" Kynar PVDF Diaphragm Pump, Hytrel Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
This NDP-25BVH-FLANGE is a 1" NDP-25 air-operated diaphragm pump in kynar pvdf, rated to 46.2 GPM. It passes solids to 1/8" (3 mm) and handles fluid to 212°F (100°C).
The Kynar PVDF wetted path is specified for concentrated sulfuric, hydrochloric and nitric service, and for hot chemicals beyond what polypropylene tolerates. Hytrel diaphragms and balls carry the highest temperature rating in the range and resist abrasion well, which suits hot oils and particulate-bearing fluids. Ball check valves are the right choice for flooded-suction installations.
Fitted with flanged manifolds rather than threaded connections. Air drive means no electrics at the pump, seal-less operation with nothing to leak at a shaft, and safe stalling against a closed discharge.
Ordered online, shipped from Texas, priced well and backed by US support before and after the sale. Send us your application details if you want a second opinion on materials.
| Brand | Yamada |
|---|---|
| Model / MPN | NDP-25BVH-FLANGE |
| Yamada item no. | 853859 |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | NDP-25 |
| Port size | 1" |
| Maximum flow | 46.2 GPM |
| Air supply pressure | 20-100 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 1/8" (3 mm) |
| Displacement per cycle | Rubber 0.22 gal (833 cc) |
| Maximum dry suction lift | 18 ft |
| Maximum fluid temperature | 212°F (100°C) |
| Check valve type | Ball valve |
| Body / wetted materials | Kynar (PVDF) |
| Diaphragm material | Hytrel (TPE) |
| Ball material | Hytrel (TPE) |
| Air motor | Standard |
| Air inlet | 3/8” Female NPT |
| Air exhaust | 3/4” Female NPT |
| Options | Flanged manifold |
