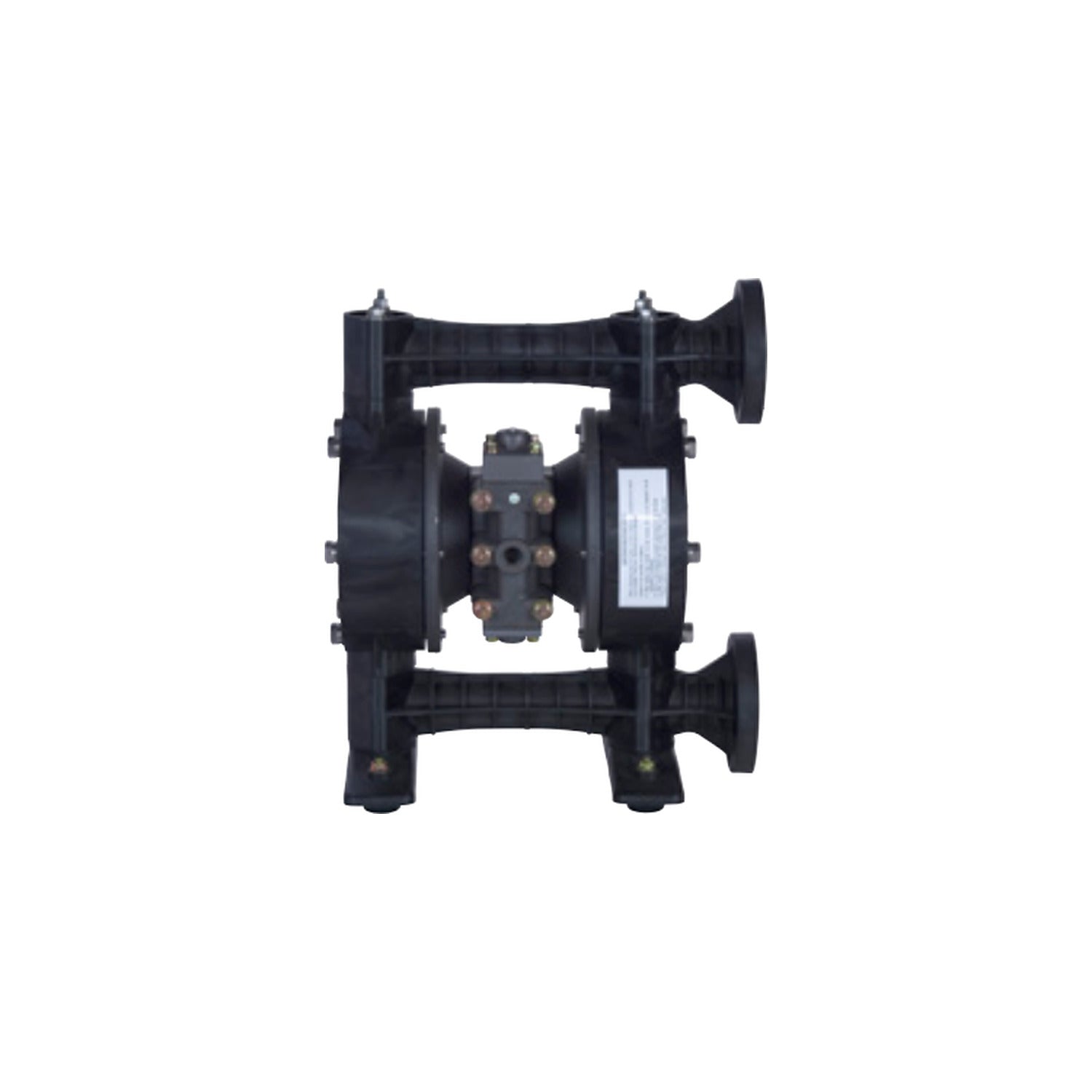

Yamada NDP-25BVE-FLANGE — 1" Kynar PVDF Diaphragm Pump, EPDM Diaphragm

Name: Yamada NDP-25BVE-FLANGE — 1" Kynar PVDF Diaphragm Pump, EPDM Diaphragm
Brand: Yamada
SKU: NDP-25BVE-FLANGE
Price: 3100.00 USD
Availability: InStock

$3,100.00 USD

Sale Sold out

Subscribers save 5% on every order.

Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.

Need better pricing? Request a quote

Out of stock — 2 week lead time Order now and we ship as soon as it lands. Texas-based support if you need a firm date first.

Add service kits for this pump

Wetted parts kit — K25-VE Diaphragms, balls and seats — the parts that wear with what you pump. $229.00 Air motor kit — K225-AM Air valve and centre seals — these wear with running hours, not with the fluid. $324.00

Ticked kits are added alongside the pump.

The NDP-25BVE-FLANGE covers 1" transfer duty as an air-operated double-diaphragm pump in kynar pvdf, rated to 46.2 GPM. It passes solids to 1/8" (3 mm) and handles fluid to 212°F (100°C).

Kynar (PVDF) resists concentrated acids, halogens and aggressive solvents that attack polypropylene, and carries a higher temperature ceiling than PP. EPDM diaphragms and balls handle acids, caustics, ketones and alcohols well — but not petroleum products, which swell the elastomer. Ball check valves are the right choice for flooded-suction installations.

Fitted with flanged manifolds rather than threaded connections. It self-primes, tolerates running dry, and stalls harmlessly against a closed valve, so it suits batching and intermittent transfer where a centrifugal pump would be a poor fit.

We ship from Texas, quote honest lead times and price sharply. Tell us the fluid, temperature and flow you need and we will confirm the right configuration before you order.

Specifications
Brand	Yamada
Model / MPN	NDP-25BVE-FLANGE
Yamada item no.	853856
Pump type	Air-operated double-diaphragm (AODD)
Series	NDP-25
Port size	1"
Maximum flow	46.2 GPM
Air supply pressure	20-100 PSI
Maximum fluid discharge pressure	Same as max air supply (1:1 pump)
Maximum solids	1/8" (3 mm)
Displacement per cycle	Rubber 0.22 gal (833 cc)
Maximum dry suction lift	18 ft
Maximum fluid temperature	212°F (100°C)
Check valve type	Ball valve
Body / wetted materials	Kynar (PVDF)
Diaphragm material	Nordel (EPDM)
Ball material	Nordel (EPDM)
Air motor	Standard
Air inlet	3/8” Female NPT
Air exhaust	3/4” Female NPT
Options	Flanged manifold

Download the NDP-25BVE-FLANGE specification sheet (PDF)
