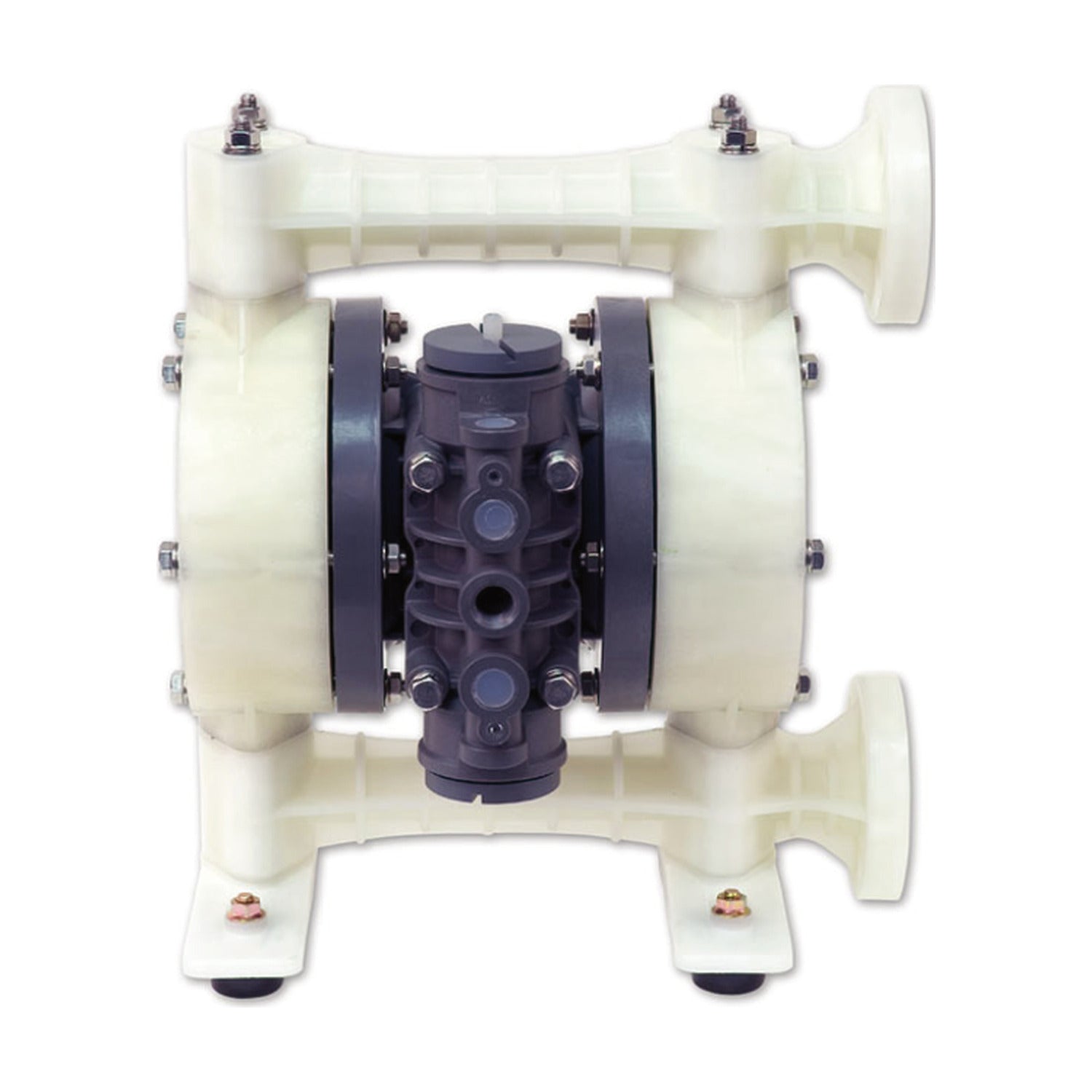

Yamada NDP-25BPW-PP-FLANGE — 1" Polypropylene Diaphragm Pump, Ultimate Diaphragm
Yamada NDP-25BPW-PP-FLANGE — 1" Polypropylene Diaphragm Pump, Ultimate Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
The NDP-25BPW-PP-FLANGE covers 1" transfer duty as an air-operated double-diaphragm pump in polypropylene, rated to 46.2 GPM. It passes solids to 1/8" (3 mm) and handles fluid to 180°F (82°C).
Polypropylene construction gives broad resistance to inorganic acids and caustics at a lower cost than fluoropolymer, and it stays inert in the salt and chlorine service that corrodes metal pumps. Yamada's Ultimate two-piece diaphragm pairs a PTFE wetted face with an elastomer backer, giving PTFE chemical resistance with markedly longer flex life than solid PTFE. Ball check valves are the right choice for flooded-suction installations.
The non-metallic center body and glass-filled polypropylene air motor cut weight and remove a corrosion path in wet or chemically aggressive areas. Fitted with flanged manifolds rather than threaded connections. Being air-driven, it needs no motor starter or electrical classification at the pump, self-primes from dry, and can be dead-headed and left stalled under pressure.
Shipped from Texas with short lead times and strong pricing. If you are unsure which build fits your fluid, send us the application details and we will point you at the right part number.
| Brand | Yamada |
|---|---|
| Model / MPN | NDP-25BPW-PP-FLANGE |
| Yamada item no. | 855254 |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | NDP-25 |
| Port size | 1" |
| Maximum flow | 46.2 GPM |
| Air supply pressure | 20-100 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 1/8" (3 mm) |
| Displacement per cycle | Rubber 0.22 gal (833 cc) |
| Maximum dry suction lift | 18 ft |
| Maximum fluid temperature | 180°F (82°C) |
| Check valve type | Ball valve |
| Body / wetted materials | Polypropylene (PPG) |
| Diaphragm material | Ultimate |
| Ball material | Ultimate |
| Air motor | Glass-filled polypropylene (non-metallic center body) |
| Air inlet | 3/8” Female NPT |
| Air exhaust | 3/4” Female NPT |
| Options | Glass-filled polypropylene air motor / non-metallic center body; Flanged manifold |
| Repair kit | K25-PW-PP |
