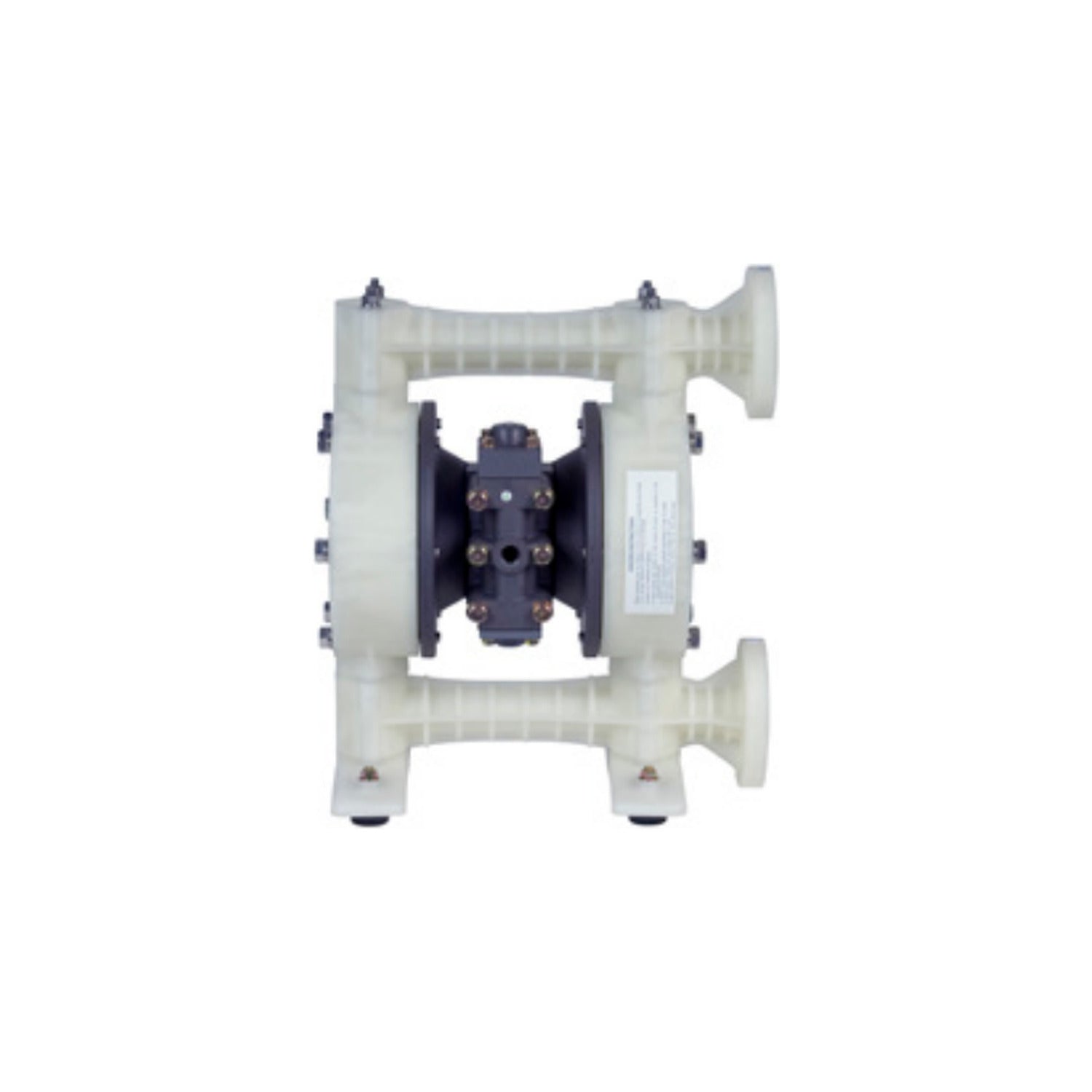

Yamada NDP-25BPV-FLANGE — 1" Polypropylene Diaphragm Pump, Viton Diaphragm
Yamada NDP-25BPV-FLANGE — 1" Polypropylene Diaphragm Pump, Viton Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
Yamada builds the NDP-25BPV-FLANGE as a 1" double-diaphragm pump in polypropylene, capable of 46.2 GPM. It passes solids to 1/8" (3 mm) and handles fluid to 180°F (82°C).
The glass-filled polypropylene wetted path resists most acids, caustics and salt solutions, which is why plastic-bodied units dominate plating lines, water treatment and chemical dosing. Viton diaphragms and balls are chosen for aggressive chemicals and hot fluids — aromatic solvents, chlorinated hydrocarbons and concentrated acids. Ball check valves are the right choice for flooded-suction installations.
Fitted with flanged manifolds rather than threaded connections. Being air-driven, it needs no motor starter or electrical classification at the pump, self-primes from dry, and can be dead-headed and left stalled under pressure.
Ordered online, shipped from Texas, priced well and backed by US support before and after the sale. Send us your application details if you want a second opinion on materials.
| Brand | Yamada |
|---|---|
| Model / MPN | NDP-25BPV-FLANGE |
| Yamada item no. | 853847 |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | NDP-25 |
| Port size | 1" |
| Maximum flow | 46.2 GPM |
| Air supply pressure | 20-100 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 1/8" (3 mm) |
| Displacement per cycle | Rubber 0.22 gal (833 cc) |
| Maximum dry suction lift | 18 ft |
| Maximum fluid temperature | 180°F (82°C) |
| Check valve type | Ball valve |
| Body / wetted materials | Polypropylene (PPG) |
| Diaphragm material | Viton (FKM) |
| Ball material | Viton (FKM) |
| Air motor | Standard |
| Air inlet | 3/8” Female NPT |
| Air exhaust | 3/4” Female NPT |
| Options | Flanged manifold |
