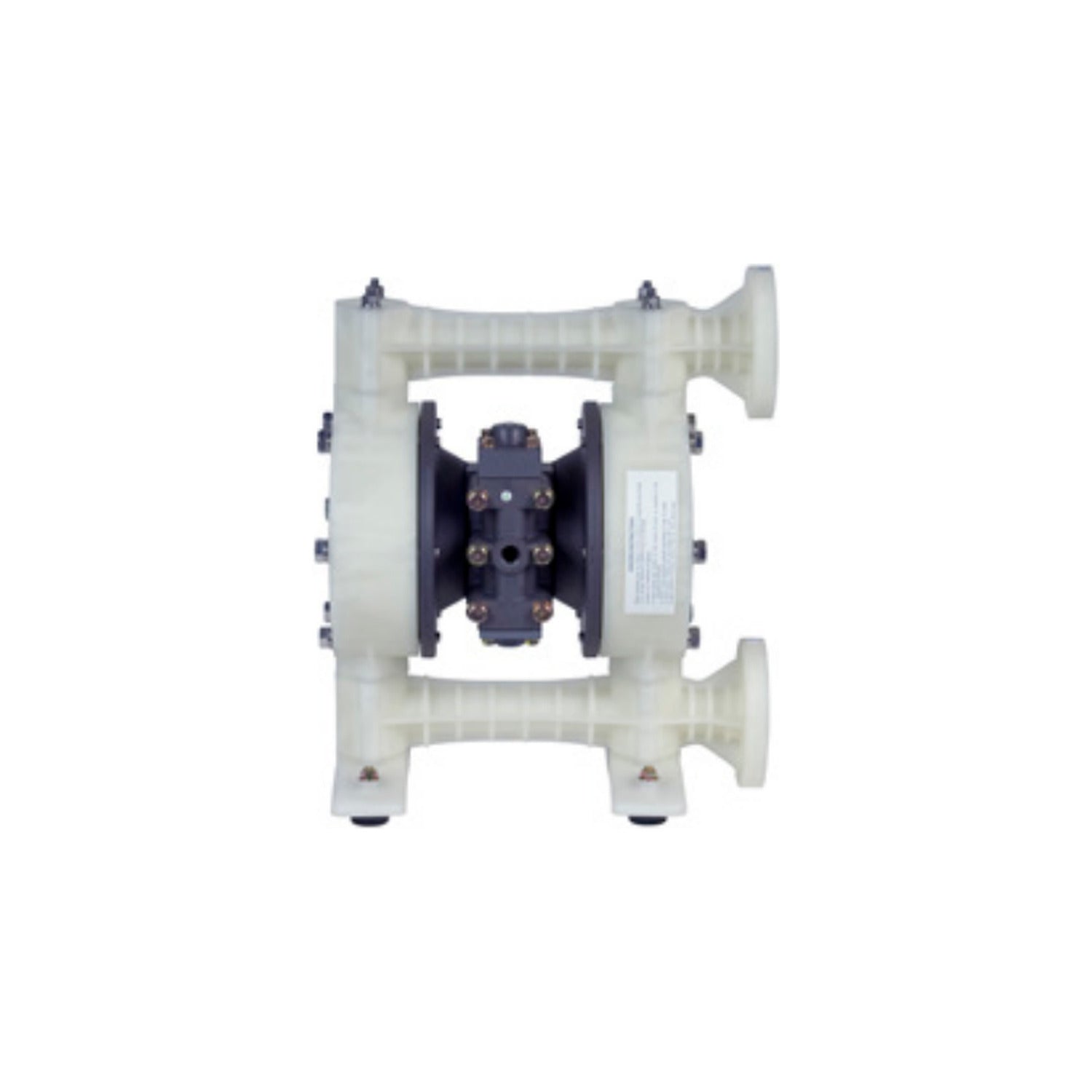

Yamada NDP-25BPH-FLANGE — 1" Polypropylene Diaphragm Pump, Hytrel Diaphragm
Yamada NDP-25BPH-FLANGE — 1" Polypropylene Diaphragm Pump, Hytrel Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
Yamada builds the NDP-25BPH-FLANGE as a 1" double-diaphragm pump in polypropylene, capable of 46.2 GPM. It passes solids to 1/8" (3 mm) and handles fluid to 180°F (82°C).
The glass-filled polypropylene wetted path resists most acids, caustics and salt solutions, which is why plastic-bodied units dominate plating lines, water treatment and chemical dosing. Hytrel diaphragms and balls carry the highest temperature rating in the range and resist abrasion well, which suits hot oils and particulate-bearing fluids. Ball check valves are the right choice for flooded-suction installations.
Fitted with flanged manifolds rather than threaded connections. It runs on plant air with no electrical supply at the pump, self-primes, and will sit stalled against a closed discharge without damage — useful on intermittent or dead-headed duty.
Texas-based, with short lead times and pricing that reflects our supply position. Not sure this is the right build? Send us the fluid and duty and we will confirm.
| Brand | Yamada |
|---|---|
| Model / MPN | NDP-25BPH-FLANGE |
| Yamada item no. | 853849 |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | NDP-25 |
| Port size | 1" |
| Maximum flow | 46.2 GPM |
| Air supply pressure | 20-100 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 1/8" (3 mm) |
| Displacement per cycle | Rubber 0.22 gal (833 cc) |
| Maximum dry suction lift | 18 ft |
| Maximum fluid temperature | 180°F (82°C) |
| Check valve type | Ball valve |
| Body / wetted materials | Polypropylene (PPG) |
| Diaphragm material | Hytrel (TPE) |
| Ball material | Hytrel (TPE) |
| Air motor | Standard |
| Air inlet | 3/8” Female NPT |
| Air exhaust | 3/4” Female NPT |
| Options | Flanged manifold |
