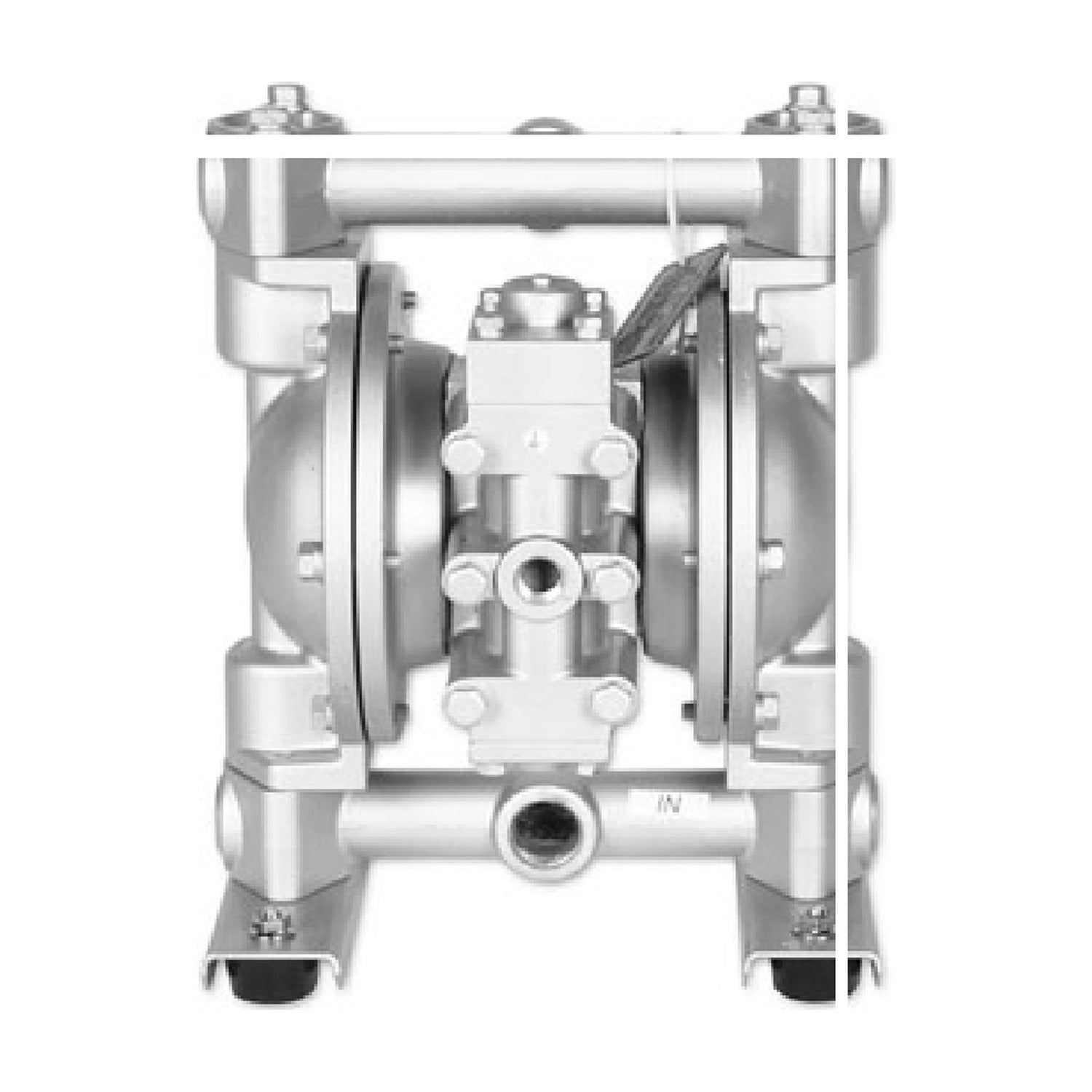

Yamada NDP-20BAT-PP — 3/4" Aluminum Diaphragm Pump, PTFE Diaphragm
Yamada NDP-20BAT-PP — 3/4" Aluminum Diaphragm Pump, PTFE Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
This NDP-20BAT-PP is a 3/4" NDP-20 air-operated diaphragm pump in aluminum, rated to 31.7 GPM. It passes solids to 1/16" (2.0 mm) and handles fluid to 212°F (100°C).
An aluminum wetted path is the workhorse choice for petroleum products, inks, adhesives and machine coolant, giving metal durability without the cost of 316. PTFE diaphragms and balls give near-universal chemical resistance, covering solvents, concentrated acids and oxidizers that destroy rubber elastomers, at the cost of a slightly lower displacement per stroke. Ball check valves are the right choice for flooded-suction installations.
The non-metallic center body and glass-filled polypropylene air motor cut weight and remove a corrosion path in wet or chemically aggressive areas. It self-primes, tolerates running dry, and stalls harmlessly against a closed valve, so it suits batching and intermittent transfer where a centrifugal pump would be a poor fit.
Stocked and shipped from Texas with fast dispatch and competitive pricing. Send over your application details if you want the material selection checked before ordering.
| Brand | Yamada |
|---|---|
| Model / MPN | NDP-20BAT-PP |
| Yamada item no. | 854063 |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | NDP-20 |
| Port size | 3/4" |
| Maximum flow | 31.7 GPM |
| Air supply pressure | 20-100 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 1/16" (2.0 mm) |
| Displacement per cycle | Rubber 0.163 gal (615 cc) / PTFE 0.143 gal (539 cc) |
| Maximum dry suction lift | 18 ft |
| Maximum fluid temperature | 212°F (100°C) |
| Check valve type | Ball valve |
| Body / wetted materials | Aluminum (ADC-12) |
| Diaphragm material | PTFE |
| Ball material | PTFE |
| Air motor | Glass-filled polypropylene (non-metallic center body) |
| Air inlet | 1/4" Female NPT |
| Air exhaust | 3/4" Female NPT |
| Options | Glass-filled polypropylene air motor / non-metallic center body |
| Repair kit | K20-MT-1 |
