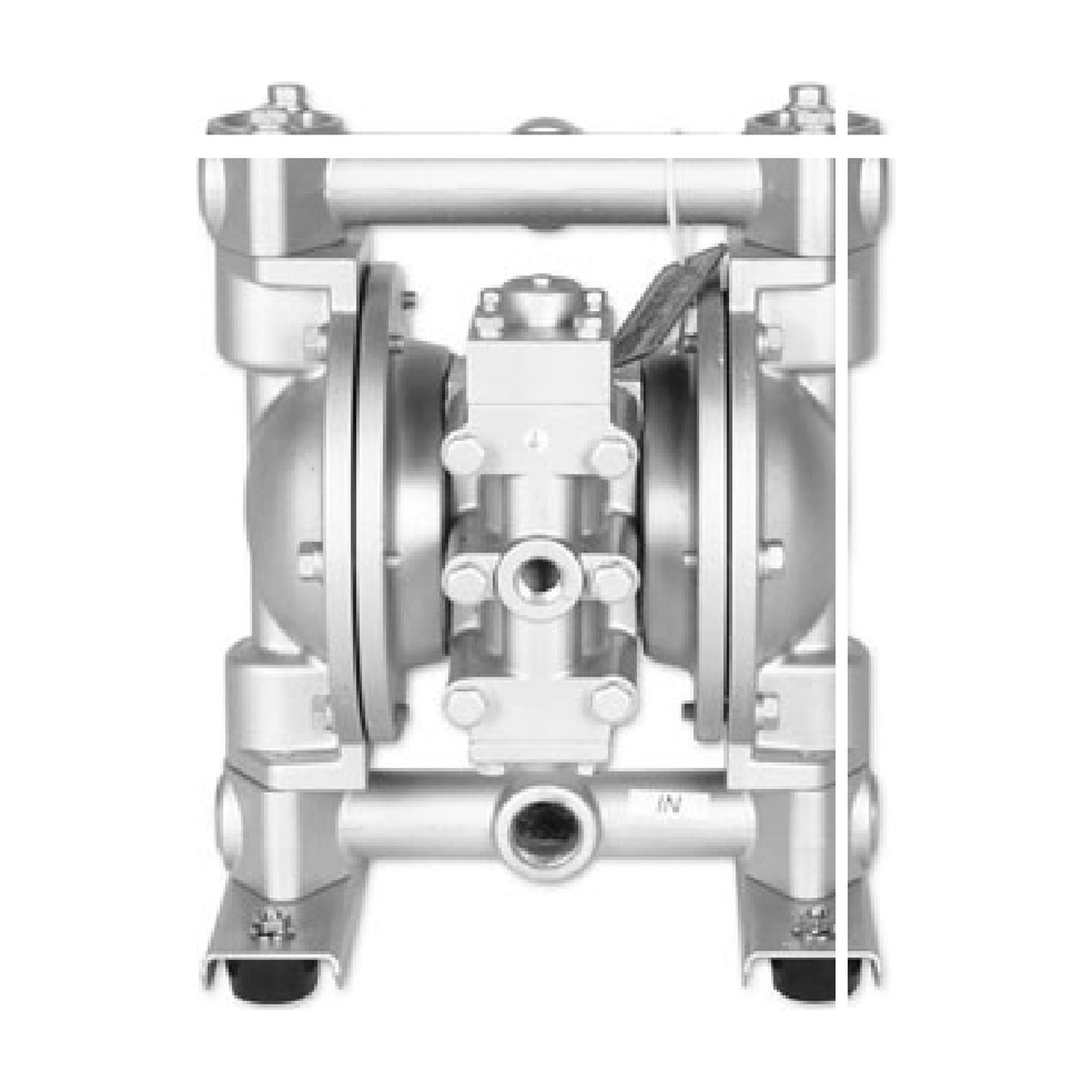

Yamada NDP-20BAH — 3/4" Aluminum Diaphragm Pump, Hytrel Diaphragm
Yamada NDP-20BAH — 3/4" Aluminum Diaphragm Pump, Hytrel Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
Yamada's NDP-20BAH is a 3/4" AODD pump in aluminum, moving up to 31.7 GPM. It passes solids to 1/16" (2.0 mm) and handles fluid to 248°F (120°C).
Aluminium construction handles solvents, lubricating oils and hydrocarbon-based fluids well, and takes mechanical abuse better than a plastic body in a busy plant. Hytrel diaphragms and balls carry the highest temperature rating in the range and resist abrasion well, which suits hot oils and particulate-bearing fluids. Ball check valves are the right choice for flooded-suction installations.
Being air-driven, it needs no motor starter or electrical classification at the pump, self-primes from dry, and can be dead-headed and left stalled under pressure.
We ship from Texas, quote honest lead times and price sharply. Tell us the fluid, temperature and flow you need and we will confirm the right configuration before you order.
| Brand | Yamada |
|---|---|
| Model / MPN | NDP-20BAH |
| Yamada item no. | 852098 |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | NDP-20 |
| Port size | 3/4" |
| Maximum flow | 31.7 GPM |
| Air supply pressure | 20-100 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 1/16" (2.0 mm) |
| Displacement per cycle | Rubber 0.163 gal (615 cc) / PTFE 0.143 gal (539 cc) |
| Maximum dry suction lift | 18 ft |
| Maximum fluid temperature | 248°F (120°C) |
| Check valve type | Ball valve |
| Body / wetted materials | Aluminum (ADC-12) |
| Diaphragm material | Hytrel (TPE) |
| Ball material | Hytrel (TPE) |
| Air motor | Standard |
| Air inlet | 1/4" Female NPT |
| Air exhaust | 3/4" Female NPT |
| Repair kit | K20-MH-1 |
