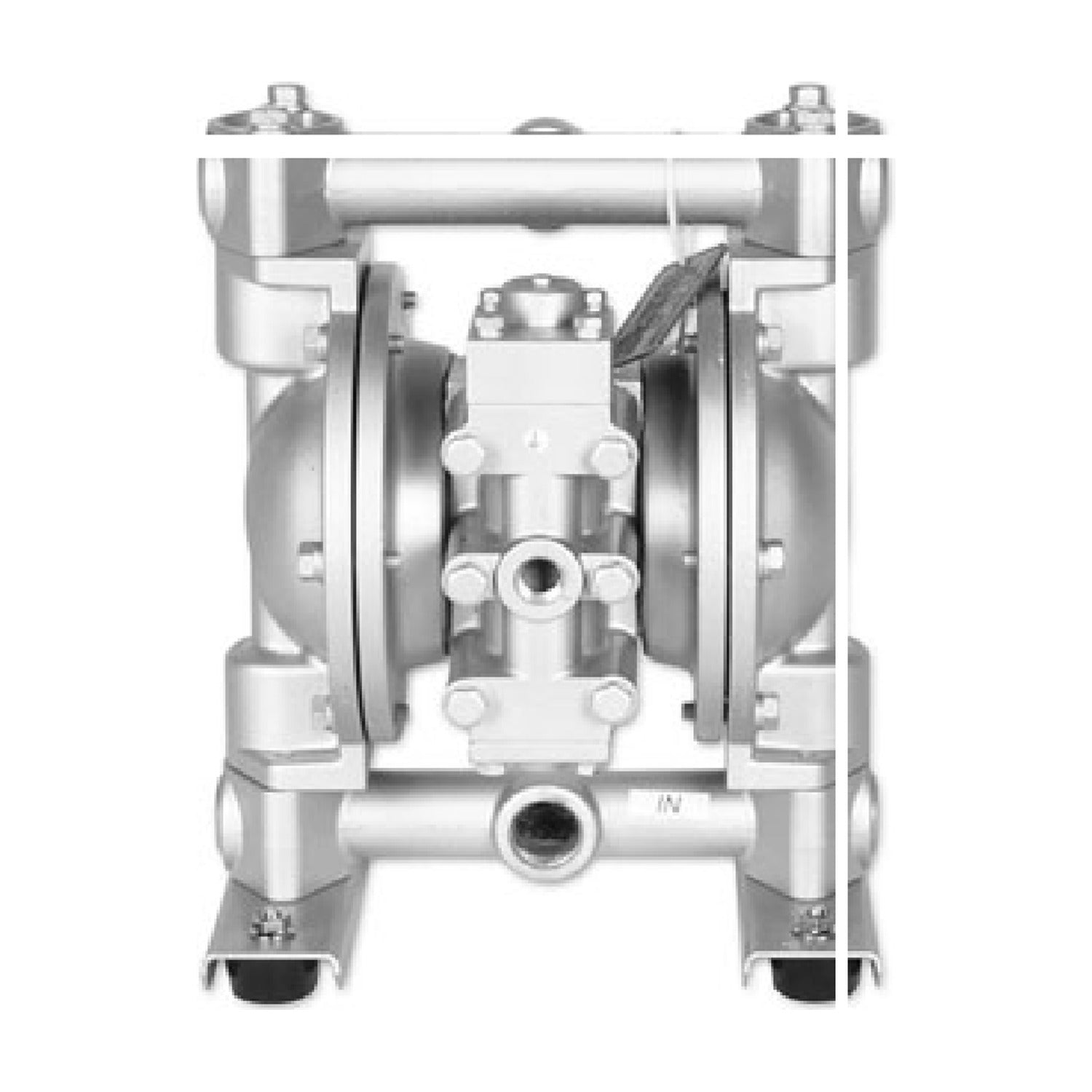

Yamada NDP-20BAE — 3/4" Aluminum Diaphragm Pump, EPDM Diaphragm
Yamada NDP-20BAE — 3/4" Aluminum Diaphragm Pump, EPDM Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
This NDP-20BAE is a 3/4" NDP-20 air-operated diaphragm pump in aluminum, rated to 31.7 GPM. It passes solids to 1/16" (2.0 mm) and handles fluid to 212°F (100°C).
An aluminum wetted path is the workhorse choice for petroleum products, inks, adhesives and machine coolant, giving metal durability without the cost of 316. EPDM diaphragms and balls handle acids, caustics, ketones and alcohols well — but not petroleum products, which swell the elastomer. Ball check valves are the right choice for flooded-suction installations.
Air drive means no electrics at the pump, seal-less operation with nothing to leak at a shaft, and safe stalling against a closed discharge.
We ship from Texas, quote honest lead times and price sharply. Tell us the fluid, temperature and flow you need and we will confirm the right configuration before you order.
| Brand | Yamada |
|---|---|
| Model / MPN | NDP-20BAE |
| Yamada item no. | 851516 |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | NDP-20 |
| Port size | 3/4" |
| Maximum flow | 31.7 GPM |
| Air supply pressure | 20-100 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 1/16" (2.0 mm) |
| Displacement per cycle | Rubber 0.163 gal (615 cc) / PTFE 0.143 gal (539 cc) |
| Maximum dry suction lift | 18 ft |
| Maximum fluid temperature | 212°F (100°C) |
| Check valve type | Ball valve |
| Body / wetted materials | Aluminum (ADC-12) |
| Diaphragm material | Nordel (EPDM) |
| Ball material | Nordel (EPDM) |
| Air motor | Standard |
| Air inlet | 1/4" Female NPT |
| Air exhaust | 3/4" Female NPT |
| Repair kit | K20-ME-1 |
