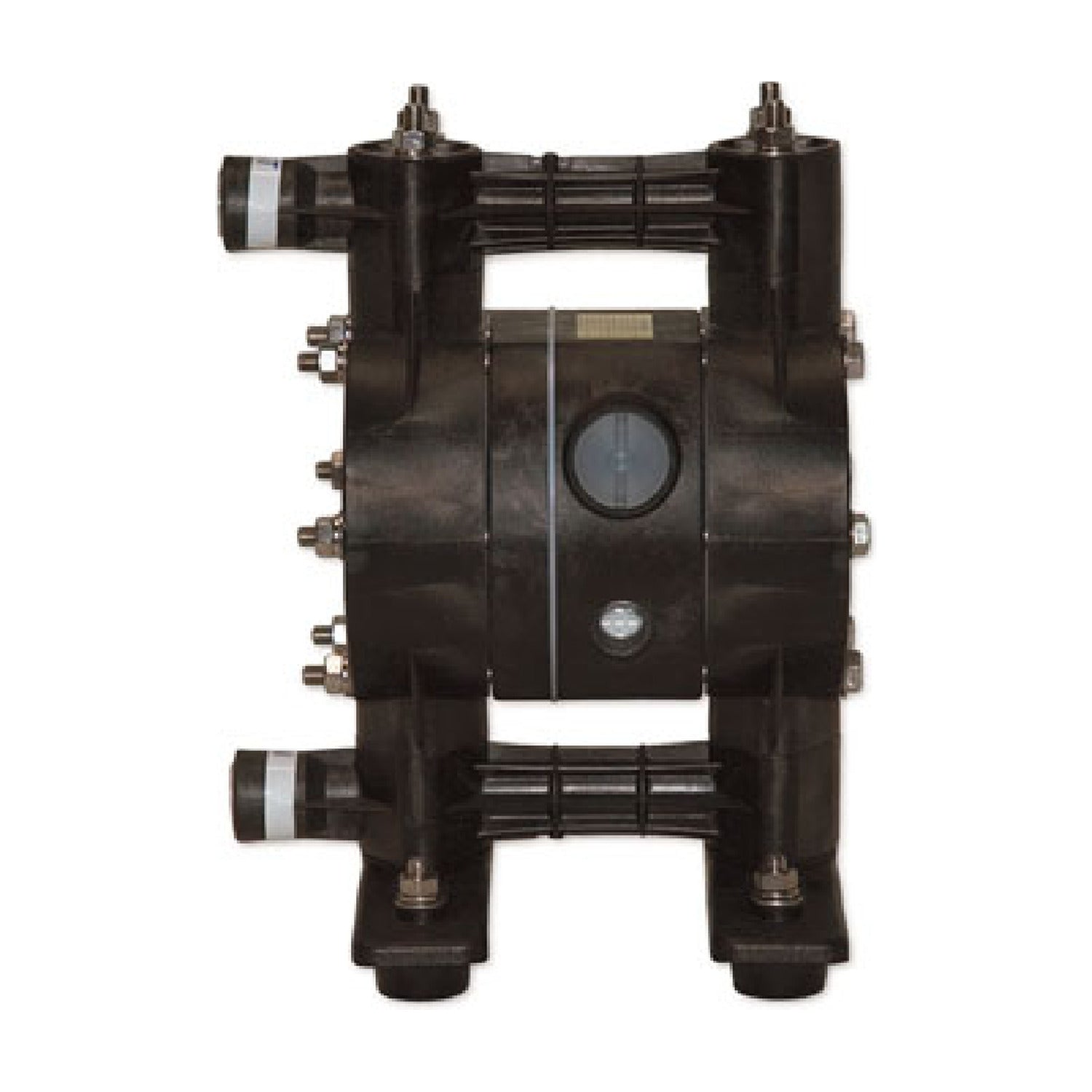

Yamada NDP-15FVT — 1/2" Kynar PVDF Diaphragm Pump, PTFE Diaphragm
Yamada NDP-15FVT — 1/2" Kynar PVDF Diaphragm Pump, PTFE Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
Yamada's NDP-15FVT is a 1/2" AODD pump in kynar pvdf, moving up to 13.5 GPM. It passes solids to 1/32" (1 mm) and handles fluid to 212°F (100°C).
Kynar (PVDF) resists concentrated acids, halogens and aggressive solvents that attack polypropylene, and carries a higher temperature ceiling than PP. PTFE diaphragms and balls give near-universal chemical resistance, covering solvents, concentrated acids and oxidizers that destroy rubber elastomers, at the cost of a slightly lower displacement per stroke. Flat check valves are the right choice where the pump has to lift liquid rather than being fed by gravity.
Air drive means no electrics at the pump, seal-less operation with nothing to leak at a shaft, and safe stalling against a closed discharge.
Ordered online, shipped from Texas, priced well and backed by US support before and after the sale. Send us your application details if you want a second opinion on materials.
| Brand | Yamada |
|---|---|
| Model / MPN | NDP-15FVT |
| Yamada item no. | 852103 |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | NDP-15 |
| Port size | 1/2" |
| Maximum flow | 13.5 GPM |
| Air supply pressure | 20-100 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 1/32" (1 mm) |
| Displacement per cycle | 0.0338 gal (128 cc) |
| Maximum dry suction lift | 8 ft (flat check valve) |
| Maximum fluid temperature | 212°F (100°C) |
| Check valve type | Flat valve |
| Body / wetted materials | Kynar (PVDF) |
| Diaphragm material | PTFE |
| Ball material | PTFE |
| Air motor | Standard |
| Air inlet | 1/4" Female NPT |
| Air exhaust | 3/8" Female NPT |
| Repair kit | K15-VT |
