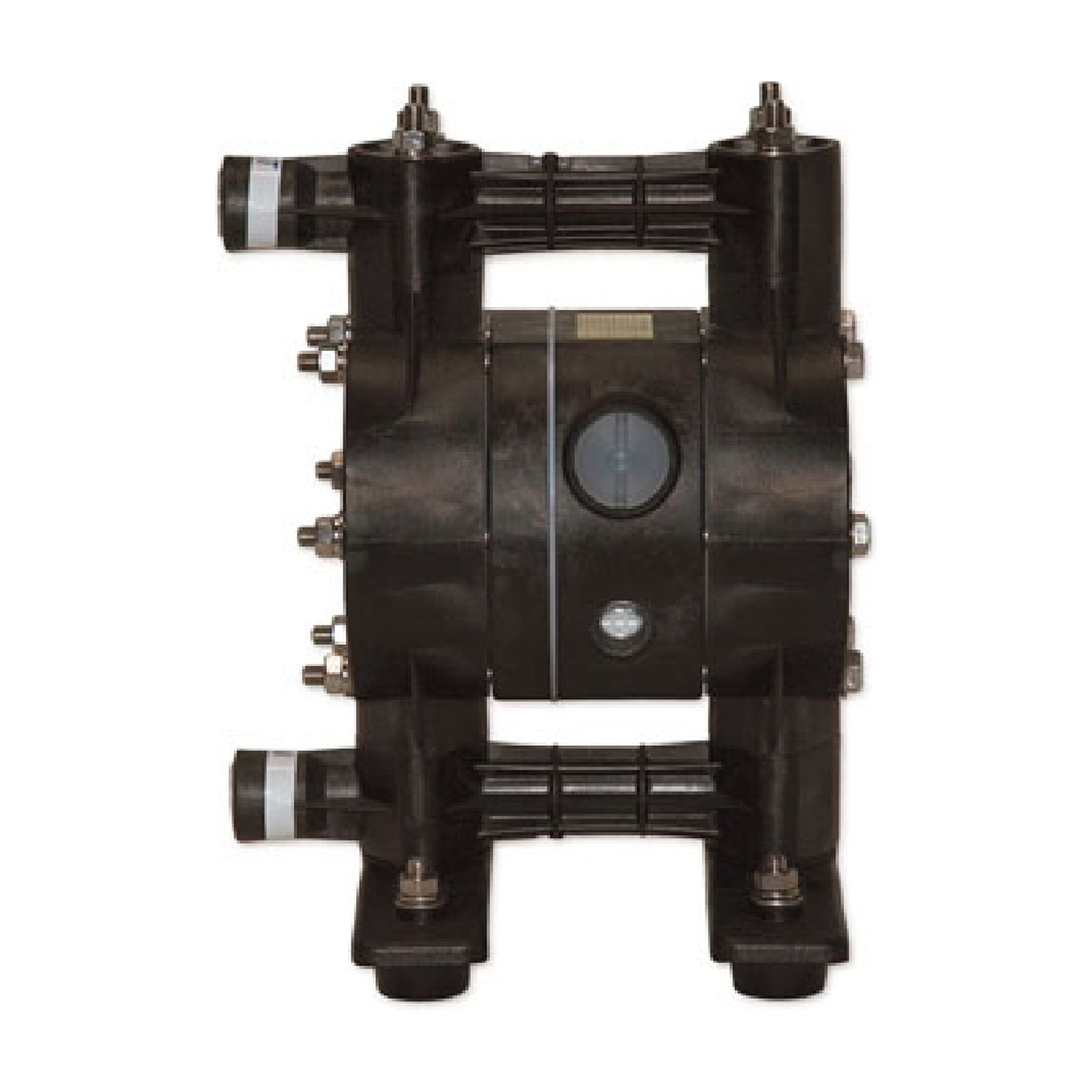

Yamada NDP-15FVS-D — 1/2" Kynar PVDF Diaphragm Drum Pump, Santoprene Diaphragm
Yamada NDP-15FVS-D — 1/2" Kynar PVDF Diaphragm Drum Pump, Santoprene Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
The NDP-15FVS-D is Yamada's 1/2" air-operated double-diaphragm pump in kynar pvdf, with a 13.5 GPM maximum. It passes solids to 1/32" (1 mm) and handles fluid to 180°F (82°C).
The Kynar PVDF wetted path is specified for concentrated sulfuric, hydrochloric and nitric service, and for hot chemicals beyond what polypropylene tolerates. Santoprene diaphragms and balls offer broad chemical compatibility with a long flex life, and are usually the best value where the duty cycle is heavy. Flat check valves are the right choice where the pump has to lift liquid rather than being fed by gravity.
Supplied as a drum-mount package with dip tube and bung adapter. It self-primes, tolerates running dry, and stalls harmlessly against a closed valve, so it suits batching and intermittent transfer where a centrifugal pump would be a poor fit.
Stocked and shipped from Texas with fast dispatch and competitive pricing. Send over your application details if you want the material selection checked before ordering.
| Brand | Yamada |
|---|---|
| Model / MPN | NDP-15FVS-D |
| Yamada item no. | NDP-15FVS-D |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | NDP-15 |
| Port size | 1/2" |
| Maximum flow | 13.5 GPM |
| Air supply pressure | 20-100 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 1/32" (1 mm) |
| Displacement per cycle | 0.0338 gal (128 cc) |
| Maximum dry suction lift | 8 ft (flat check valve) |
| Maximum fluid temperature | 180°F (82°C) |
| Check valve type | Flat valve |
| Body / wetted materials | Kynar (PVDF) |
| Diaphragm material | Santoprene (TPO) |
| Ball material | Santoprene (TPO) |
| Air motor | Standard |
| Air inlet | 1/4" Female NPT |
| Air exhaust | 3/8" Female NPT |
| Options | Drum pump |
