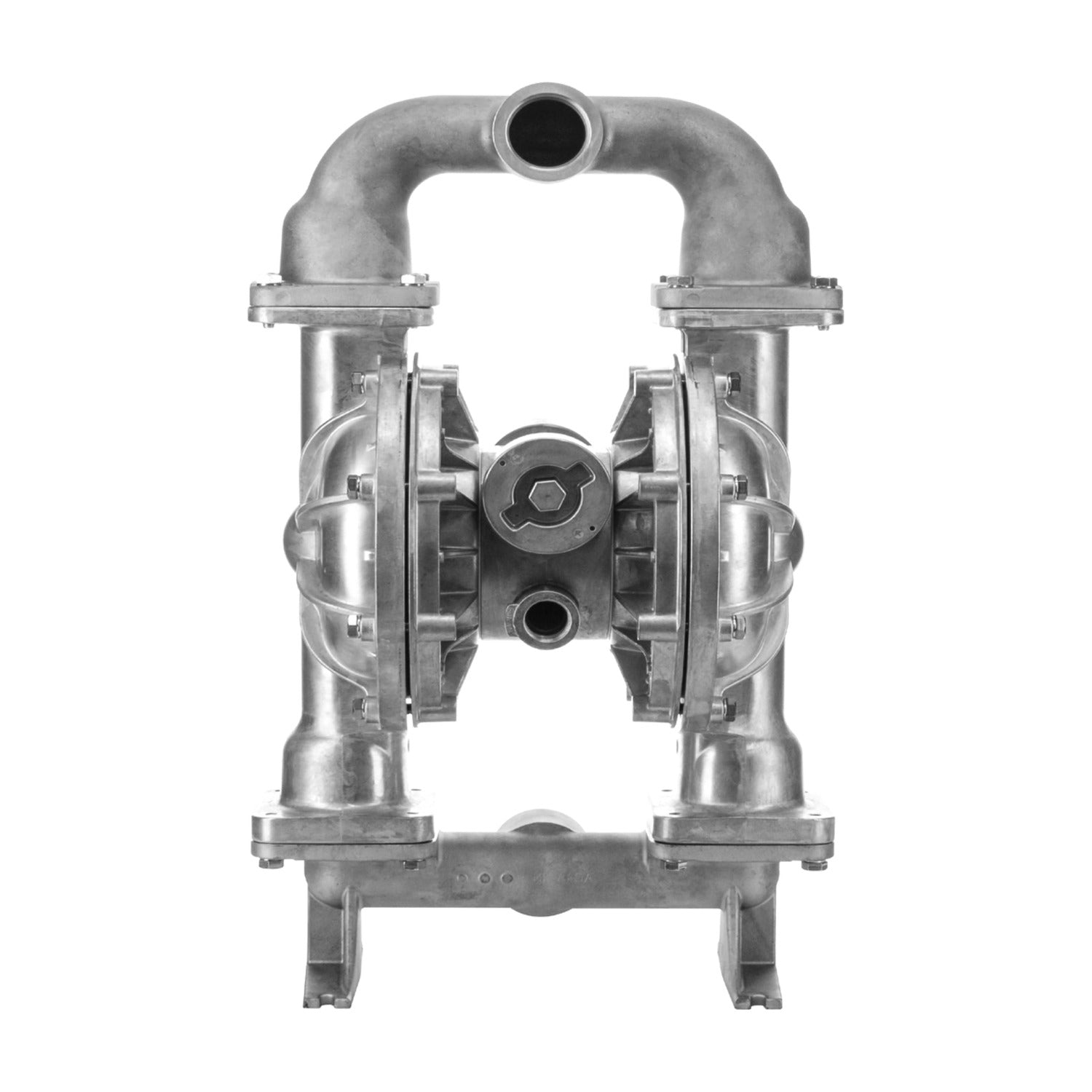

Yamada G50AS11 — 2" Aluminum Diaphragm Pump, Santoprene Diaphragm
Yamada G50AS11 — 2" Aluminum Diaphragm Pump, Santoprene Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
The G50AS11 covers 2" transfer duty as an air-operated double-diaphragm pump in aluminum, rated to 193 GPM. It passes solids to 5/16" (8 mm) and handles fluid to 180°F (82°C).
The aluminum body suits solvents, fuels, oils and paints — the general-industrial fluids where a metal pump is wanted but stainless is more than the job needs. Santoprene diaphragms and balls offer broad chemical compatibility with a long flex life, and are usually the best value where the duty cycle is heavy. Ball check valves come as standard across the Global Series.
The Global Series air motor uses Yamada's S-Spool valve with no pilot valve and runs completely oil-free, so there are fewer parts to fail and no lubricator to maintain. It self-primes, tolerates running dry, and stalls harmlessly against a closed valve, so it suits batching and intermittent transfer where a centrifugal pump would be a poor fit.
Texas-based, with short lead times and pricing that reflects our supply position. Not sure this is the right build? Send us the fluid and duty and we will confirm.
| Brand | Yamada |
|---|---|
| Model / MPN | G50AS11 |
| Yamada item no. | 855334 |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | G50 |
| Port size | 2" |
| Maximum flow | 193 GPM |
| Air supply pressure | 20-100 PSI / 20-125 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 5/16" (8 mm) |
| Maximum fluid temperature | 180°F (82°C) |
| Check valve type | Ball valve (standard on G Series) |
| Body / wetted materials | Aluminum (ADC-12) |
| Diaphragm material | Santoprene (TPO) |
| Ball material | Santoprene (TPO) |
| Air motor | S-Spool, no pilot valve, oil-free |
| Air inlet | 3/4” Female NPT |
| Air exhaust | 1” Female NPT |
| Port connection | NPT (North America) |
| Repair kit | KG50-MS |
