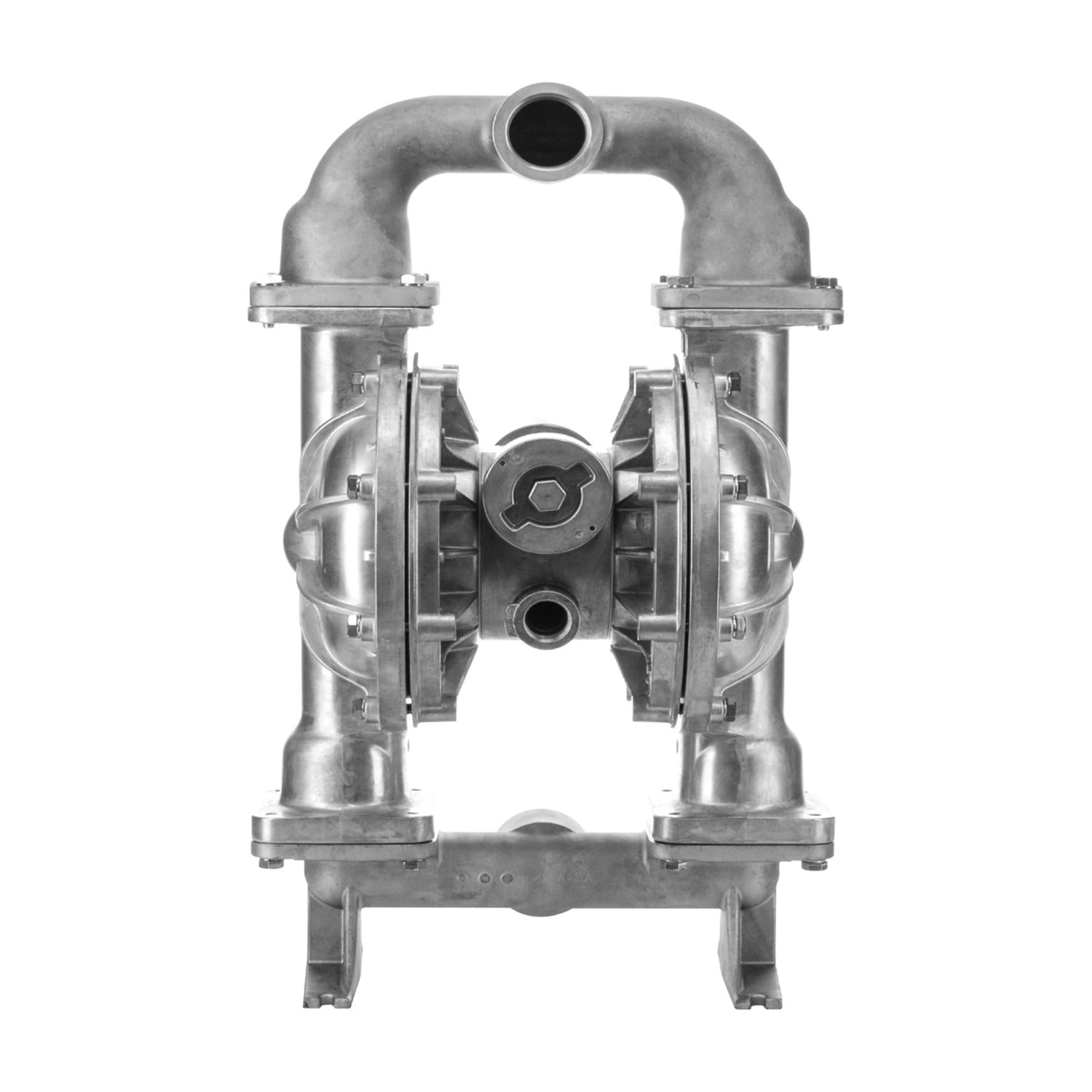

Yamada G50AN11 — 2" Aluminum Diaphragm Pump, Buna-N Diaphragm
Yamada G50AN11 — 2" Aluminum Diaphragm Pump, Buna-N Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
Yamada builds the G50AN11 as a 2" double-diaphragm pump in aluminum, capable of 193 GPM. It passes solids to 5/16" (8 mm) and handles fluid to 180°F (82°C).
An aluminum wetted path is the workhorse choice for petroleum products, inks, adhesives and machine coolant, giving metal durability without the cost of 316. Buna-N diaphragms and balls suit petroleum oils, diesel, hydraulic fluid and greases, but should be kept away from ketones and strong oxidizers. Ball check valves come as standard across the Global Series.
The Global Series air motor uses Yamada's S-Spool valve with no pilot valve and runs completely oil-free, so there are fewer parts to fail and no lubricator to maintain. It self-primes, tolerates running dry, and stalls harmlessly against a closed valve, so it suits batching and intermittent transfer where a centrifugal pump would be a poor fit.
Ordered online, shipped from Texas, priced well and backed by US support before and after the sale. Send us your application details if you want a second opinion on materials.
| Brand | Yamada |
|---|---|
| Model / MPN | G50AN11 |
| Yamada item no. | 855331 |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | G50 |
| Port size | 2" |
| Maximum flow | 193 GPM |
| Air supply pressure | 20-100 PSI / 20-125 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 5/16" (8 mm) |
| Maximum fluid temperature | 180°F (82°C) |
| Check valve type | Ball valve (standard on G Series) |
| Body / wetted materials | Aluminum (ADC-12) |
| Diaphragm material | Buna-N (NBR) |
| Ball material | Buna-N (NBR) |
| Air motor | S-Spool, no pilot valve, oil-free |
| Air inlet | 3/4” Female NPT |
| Air exhaust | 1” Female NPT |
| Port connection | NPT (North America) |
| Repair kit | KG50-MN |
