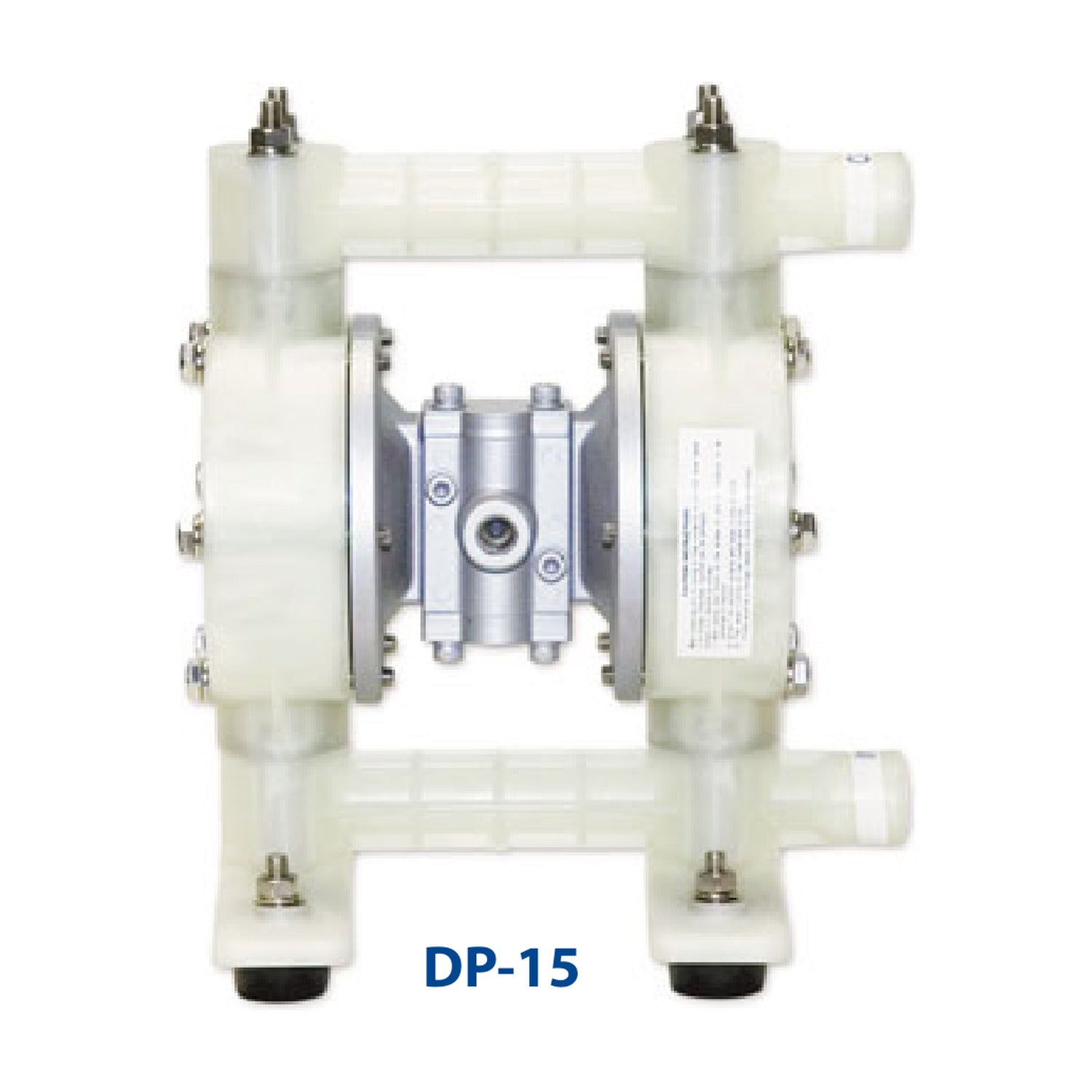

Yamada DP-15FPT — 1/2" Polypropylene Diaphragm Pump, PTFE Diaphragm
Yamada DP-15FPT — 1/2" Polypropylene Diaphragm Pump, PTFE Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
The DP-15FPT is Yamada's 1/2" air-operated double-diaphragm pump in polypropylene, with a 7.4 GPM maximum. It passes solids to 1/32" (1 mm) and handles fluid to 180°F (82°C).
A glass-filled polypropylene wetted path handles dilute acids, alkalis and brines without the galvanic issues a metal body brings, making it the usual pick for chemical transfer and wastewater duty. PTFE diaphragms and balls give near-universal chemical resistance, covering solvents, concentrated acids and oxidizers that destroy rubber elastomers, at the cost of a slightly lower displacement per stroke. Flat check valves are the right choice where the pump has to lift liquid rather than being fed by gravity.
It self-primes, tolerates running dry, and stalls harmlessly against a closed valve, so it suits batching and intermittent transfer where a centrifugal pump would be a poor fit.
Texas-based, with short lead times and pricing that reflects our supply position. Not sure this is the right build? Send us the fluid and duty and we will confirm.
| Brand | Yamada |
|---|---|
| Model / MPN | DP-15FPT |
| Yamada item no. | 853719 |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | DP-15 |
| Port size | 1/2" |
| Maximum flow | 7.4 GPM |
| Air supply pressure | 20-100 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 1/32" (1 mm) |
| Displacement per cycle | 0.025 gal (93 cc) |
| Maximum dry suction lift | 10 ft |
| Maximum fluid temperature | 180°F (82°C) |
| Check valve type | Flat valve |
| Body / wetted materials | Polypropylene (PPG) |
| Diaphragm material | PTFE |
| Ball material | PTFE |
| Air motor | Standard |
| Air inlet | 1/4" Female NPT |
| Air exhaust | 3/8" Female NPT |
| Repair kit | K15-PT |
