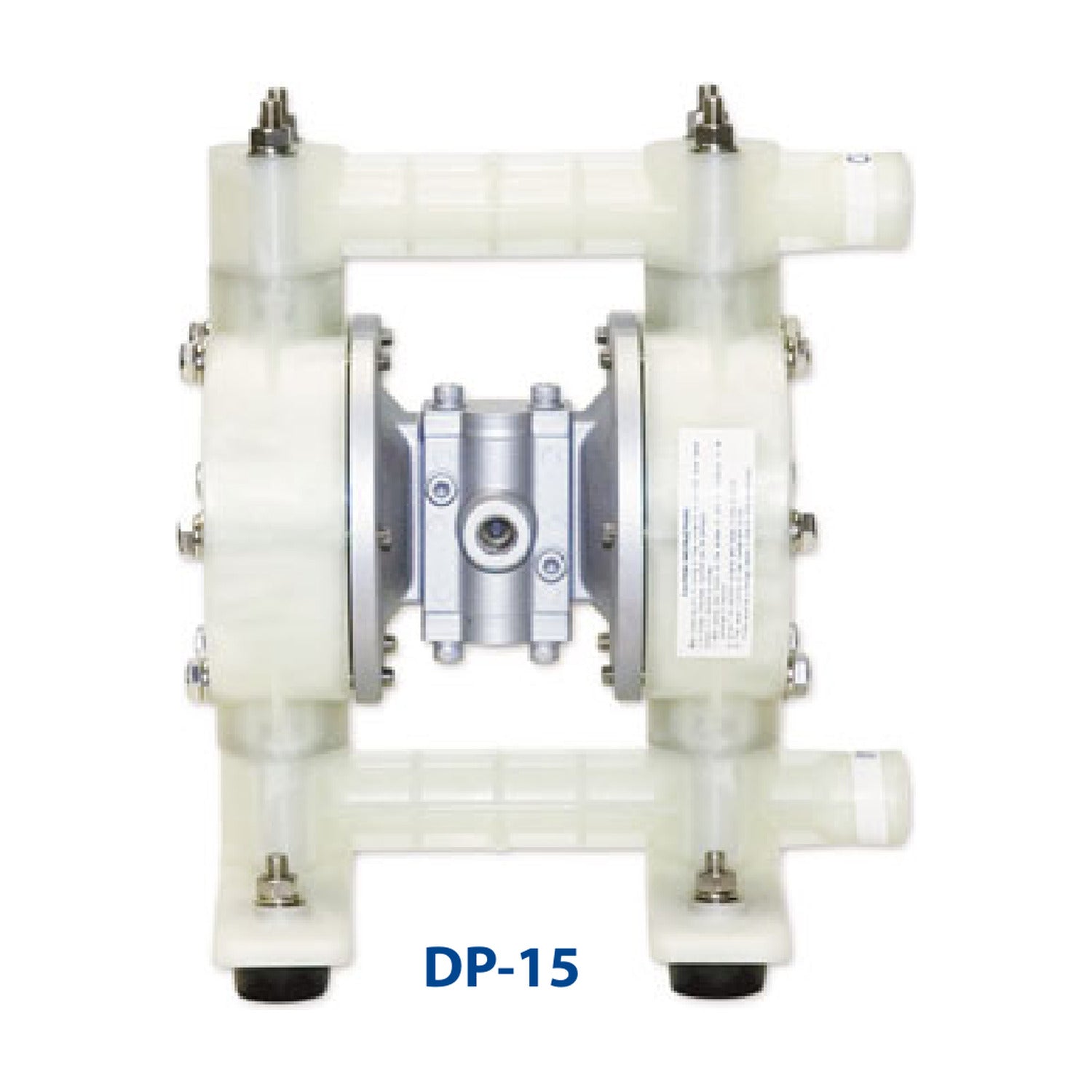

Yamada DP-15FPN — 1/2" Polypropylene Diaphragm Pump, Buna-N Diaphragm
Yamada DP-15FPN — 1/2" Polypropylene Diaphragm Pump, Buna-N Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
The DP-15FPN covers 1/2" transfer duty as an air-operated double-diaphragm pump in polypropylene, rated to 7.4 GPM. It passes solids to 1/32" (1 mm) and handles fluid to 180°F (82°C).
A glass-filled polypropylene wetted path handles dilute acids, alkalis and brines without the galvanic issues a metal body brings, making it the usual pick for chemical transfer and wastewater duty. Buna-N diaphragms and balls suit petroleum oils, diesel, hydraulic fluid and greases, but should be kept away from ketones and strong oxidizers. Flat check valves are the right choice where the pump has to lift liquid rather than being fed by gravity.
The pump self-primes, handles a degree of entrained air, and holds pressure when stalled, which makes it forgiving on transfer duty that starts and stops.
Texas-based, with short lead times and pricing that reflects our supply position. Not sure this is the right build? Send us the fluid and duty and we will confirm.
| Brand | Yamada |
|---|---|
| Model / MPN | DP-15FPN |
| Yamada item no. | 853717 |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | DP-15 |
| Port size | 1/2" |
| Maximum flow | 7.4 GPM |
| Air supply pressure | 20-100 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 1/32" (1 mm) |
| Displacement per cycle | 0.025 gal (93 cc) |
| Maximum dry suction lift | 10 ft |
| Maximum fluid temperature | 180°F (82°C) |
| Check valve type | Flat valve |
| Body / wetted materials | Polypropylene (PPG) |
| Diaphragm material | Buna-N (NBR) |
| Ball material | Buna-N (NBR) |
| Air motor | Standard |
| Air inlet | 1/4" Female NPT |
| Air exhaust | 3/8" Female NPT |
| Repair kit | K15-PN |
