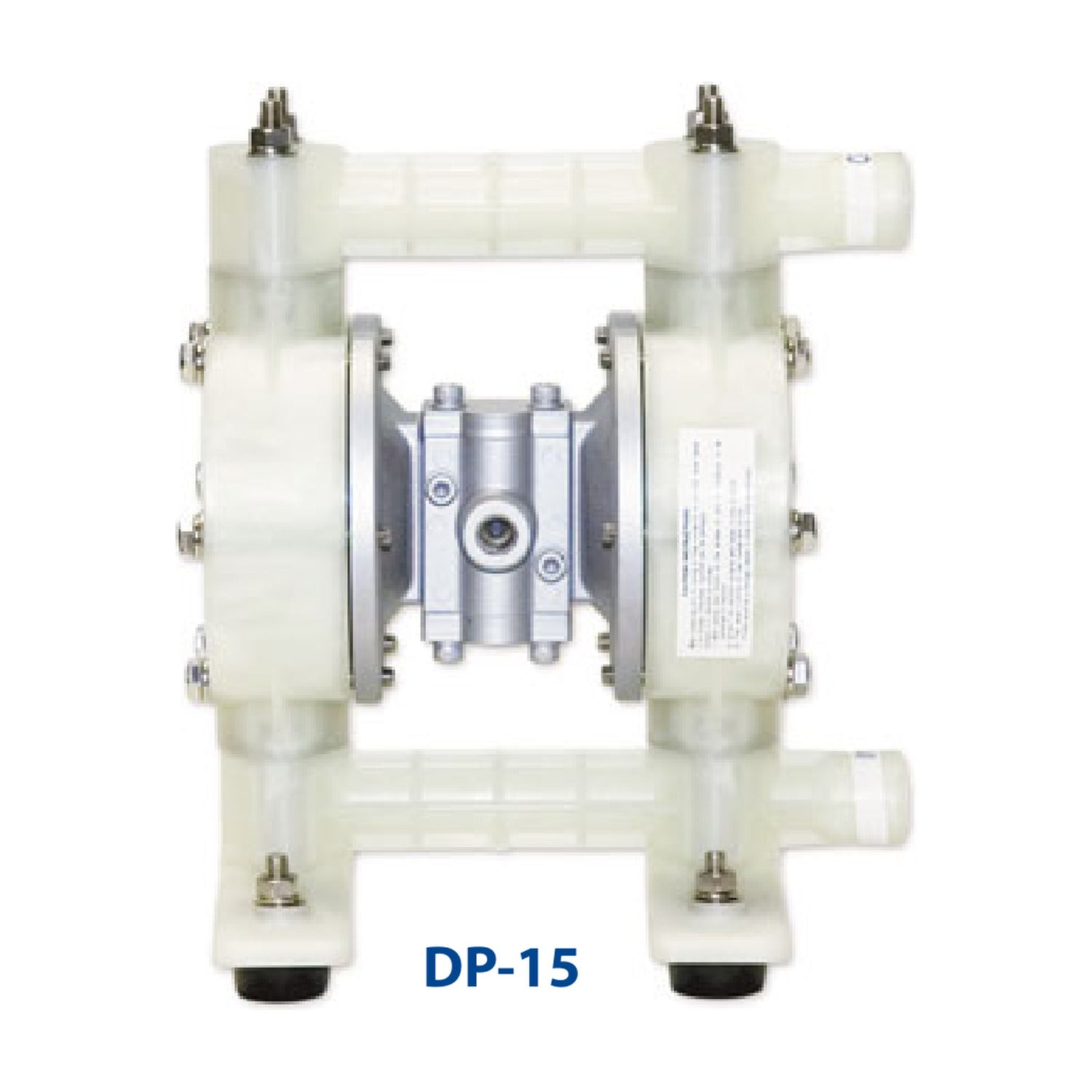

Yamada DP-15FPH — 1/2" Polypropylene Diaphragm Pump, Hytrel Diaphragm
Yamada DP-15FPH — 1/2" Polypropylene Diaphragm Pump, Hytrel Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
The DP-15FPH covers 1/2" transfer duty as an air-operated double-diaphragm pump in polypropylene, rated to 7.4 GPM. It passes solids to 1/32" (1 mm) and handles fluid to 180°F (82°C).
A glass-filled polypropylene wetted path handles dilute acids, alkalis and brines without the galvanic issues a metal body brings, making it the usual pick for chemical transfer and wastewater duty. Hytrel diaphragms and balls carry the highest temperature rating in the range and resist abrasion well, which suits hot oils and particulate-bearing fluids. Flat check valves are the right choice where the pump has to lift liquid rather than being fed by gravity.
Being air-driven, it needs no motor starter or electrical classification at the pump, self-primes from dry, and can be dead-headed and left stalled under pressure.
Stocked and shipped from Texas with fast dispatch and competitive pricing. Send over your application details if you want the material selection checked before ordering.
| Brand | Yamada |
|---|---|
| Model / MPN | DP-15FPH |
| Yamada item no. | 853721 |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | DP-15 |
| Port size | 1/2" |
| Maximum flow | 7.4 GPM |
| Air supply pressure | 20-100 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 1/32" (1 mm) |
| Displacement per cycle | 0.025 gal (93 cc) |
| Maximum dry suction lift | 10 ft |
| Maximum fluid temperature | 180°F (82°C) |
| Check valve type | Flat valve |
| Body / wetted materials | Polypropylene (PPG) |
| Diaphragm material | Hytrel (TPE) |
| Ball material | Hytrel (TPE) |
| Air motor | Standard |
| Air inlet | 1/4" Female NPT |
| Air exhaust | 3/8" Female NPT |
| Repair kit | K15-PH |
