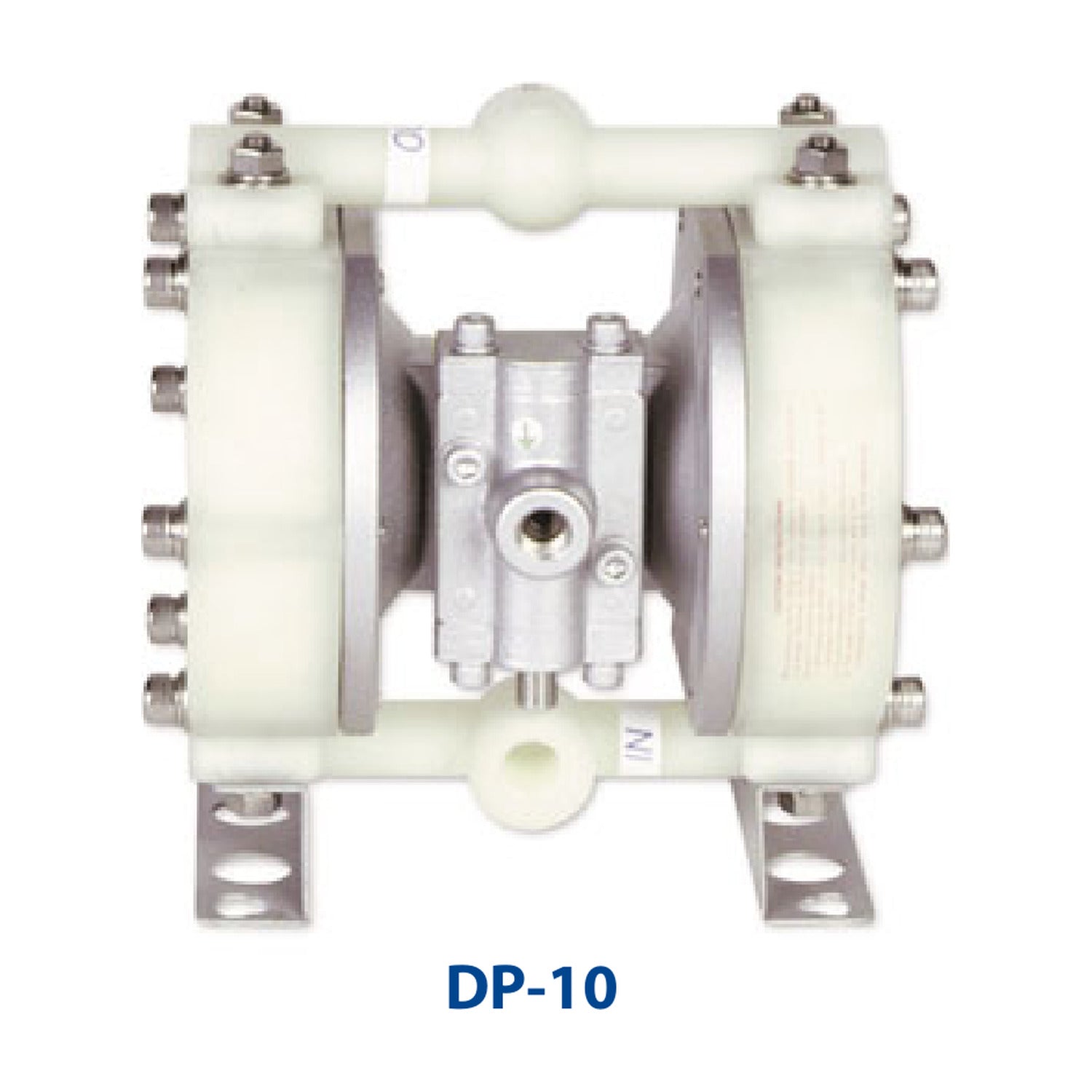

Yamada DP-10BPT — 3/8" Polypropylene Diaphragm Pump, PTFE Diaphragm
Yamada DP-10BPT — 3/8" Polypropylene Diaphragm Pump, PTFE Diaphragm
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Add service kits for this pump
Ticked kits are added alongside the pump.
Couldn't load pickup availability
The DP-10BPT is Yamada's 3/8" air-operated double-diaphragm pump in polypropylene, with a 6 GPM maximum. It passes solids to 1/32" (1 mm) and handles fluid to 180°F (82°C).
The glass-filled polypropylene wetted path resists most acids, caustics and salt solutions, which is why plastic-bodied units dominate plating lines, water treatment and chemical dosing. PTFE diaphragms and balls give near-universal chemical resistance, covering solvents, concentrated acids and oxidizers that destroy rubber elastomers, at the cost of a slightly lower displacement per stroke. Ball check valves are the right choice for flooded-suction installations.
Being air-driven, it needs no motor starter or electrical classification at the pump, self-primes from dry, and can be dead-headed and left stalled under pressure.
Texas-based, with short lead times and pricing that reflects our supply position. Not sure this is the right build? Send us the fluid and duty and we will confirm.
| Brand | Yamada |
|---|---|
| Model / MPN | DP-10BPT |
| Yamada item no. | 851843 |
| Pump type | Air-operated double-diaphragm (AODD) |
| Series | DP-10 |
| Port size | 3/8" |
| Maximum flow | 6 GPM |
| Air supply pressure | 20-100 PSI |
| Maximum fluid discharge pressure | Same as max air supply (1:1 pump) |
| Maximum solids | 1/32" (1 mm) |
| Displacement per cycle | 0.020 gal (76 cc) |
| Maximum dry suction lift | 10 ft |
| Maximum fluid temperature | 180°F (82°C) |
| Check valve type | Ball valve |
| Body / wetted materials | Polypropylene (PPG) |
| Diaphragm material | PTFE |
| Ball material | PTFE |
| Air motor | Standard |
| Air inlet | 1/4" Female NPT |
| Air exhaust | 3/8" Female NPT |
| Repair kit | K10-PT |
