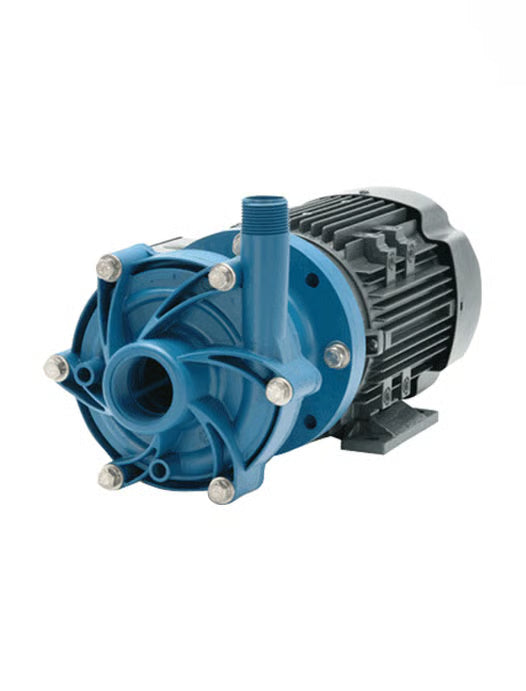

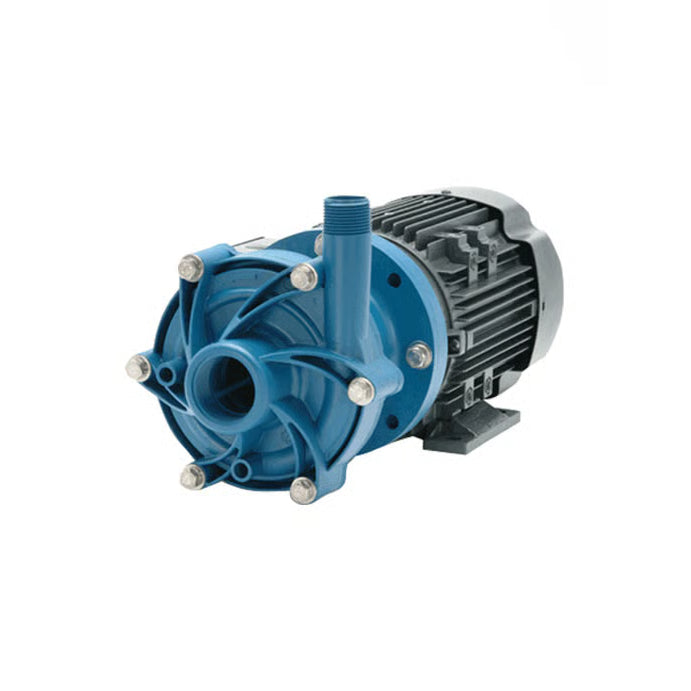

Finish Thompson DB11P-4-M219 DB Series Pump
Finish Thompson DB11P-4-M219 DB Series Pump
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Couldn't load pickup availability
The Finish Thompson DB11P-4-M219 is a DB Series sealless magnetic-drive centrifugal pump in polypropylene — the DB11 frame with a 1 HP three-phase motor — for transferring acids, caustics, and corrosive chemicals without a mechanical seal.
Magnetic drive means no shaft seal and no seal leaks: the impeller is driven through the pump wall by magnets. The DB11 hydraulic reaches roughly 116 GPM maximum flow and about 74 ft of head, with 2" suction and 1-1/2" discharge, FKM o-rings, and polypropylene wetted construction. Motor: M219, 1 HP, 208-230/460 V, 60 Hz, three phase. The -4 in this part number indicates the impeller/configuration option — confirm the exact duty point with KAD.
Built for chemical transfer, filtration loops, and scrubber service. Send us your flow, head, and chemical and we'll confirm fit.
KAD Pumps & Parts is Texas-based and ships from the US — fast dispatch and US support before you buy.
Specifications
| Brand | Finish Thompson |
|---|---|
| Model / MPN | DB11P-4-M219 (DB Series, DB11) |
| Pump type | Sealless magnetic-drive centrifugal |
| Construction | Polypropylene wetted; FKM o-rings |
| Max flow / head (DB11) | ~116 GPM / ~74 ft |
| Suction / discharge | 2" / 1-1/2" |
| Motor | M219 — 1 HP, 208-230/460 V, 60 Hz, 3-phase |
| Configuration | -4 option code — confirm duty point with KAD |
Datasheet: Finish Thompson DB Series brochure (PDF)
