Finish Thompson DB6HP-M225 DB Series
Finish Thompson DB6HP-M225 DB Series
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Couldn't load pickup availability

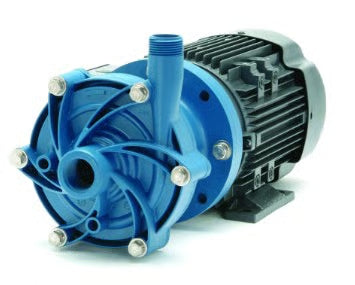

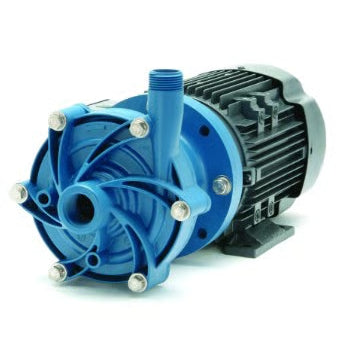

The Finish Thompson DB6HP-M225 is a DB Series sealless magnetic-drive centrifugal pump — the DB6H high-head frame in polypropylene with a 1/3 HP three-phase motor — for corrosive chemical transfer without mechanical seals.
The mag-drive coupling removes the shaft seal entirely, so there's nothing to flush, leak, or rebuild in the liquid path. The DB6H hydraulic delivers up to roughly 42 GPM and 54 ft of head, with 1" suction and 1" discharge, FKM o-rings, and a maximum system pressure of 80 psi. Motor: M225, 1/3 HP, 208-230/460 V, 60 Hz, three phase.
A compact workhorse for chemical feed loops, scrubbers, and OEM skids. Send us your flow, head, and chemical and we'll confirm fit before you order.
KAD Pumps & Parts is Texas-based and ships from the US — fast dispatch and US support before you buy.
Specifications
| Brand | Finish Thompson |
|---|---|
| Model / MPN | DB6HP-M225 (DB Series, DB6H high-head) |
| Pump type | Sealless magnetic-drive centrifugal |
| Construction | Polypropylene wetted; FKM o-rings |
| Max flow / head | ~42 GPM / ~54 ft |
| Max system pressure | 80 psi |
| Suction / discharge | 1" / 1" |
| Motor | M225 — 1/3 HP, 208-230/460 V, 60 Hz, 3-phase |
Datasheet: Finish Thompson DB Series brochure (PDF)
