Hayward 1T8GX0008 Vertical Pump
Hayward 1T8GX0008 Vertical Pump
Create a free account and save 5% on this order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Couldn't load pickup availability

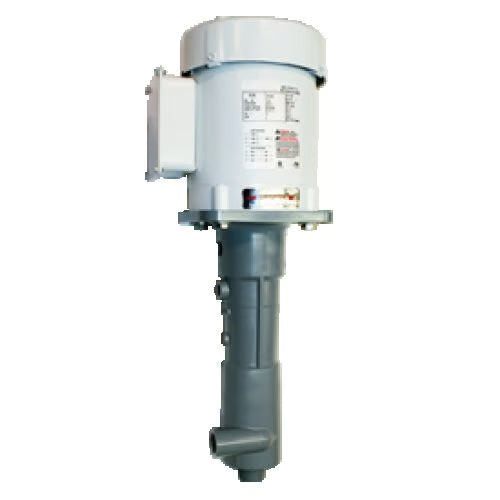

The Hayward 1T8GX0008 is a T Series vertical seal-less immersible pump in CPVC — 1-1/2 HP, single phase — the largest T frame, for higher-flow corrosive duty (family performance 5–80 GPM, heads to 45 ft).
It carries the T Series' defining hardware: a single, non-coupled 303 stainless motor shaft and Hayward's patented PTFE shaft seal with extended sleeve, keeping the seal point away from the weep hole. CPVC head (Cell Class 23447 per ASTM D1784), 1-1/2" MNPT inlet, 1-1/4" FNPT discharge, 115/230 V single-phase TEFC motor.
The single-phase pick for maximum T Series performance where three-phase power isn't available. Send us your application details and we'll point you to the right part number.
KAD Pumps & Parts is Texas-based and ships from the US — fast dispatch and US support before you buy.
Specifications
| Brand | Hayward Flow Control (Webster) |
|---|---|
| Model / MPN | 1T8GX0008 (T Series, T8) |
| Pump type | Vertical seal-less immersible centrifugal |
| Construction | CPVC; 303 SS shaft; PTFE shaft seal |
| Horsepower | 1-1/2 HP |
| Voltage / phase | 115/230 V, single phase |
| Inlet / discharge | 1-1/2" MNPT / 1-1/4" FNPT |
| Family performance | 5–80 GPM, TDH to 45 ft (60 Hz, 3450 rpm) |
| Motor | TEFC |
Datasheet: Hayward T Series datasheet (PDF)
