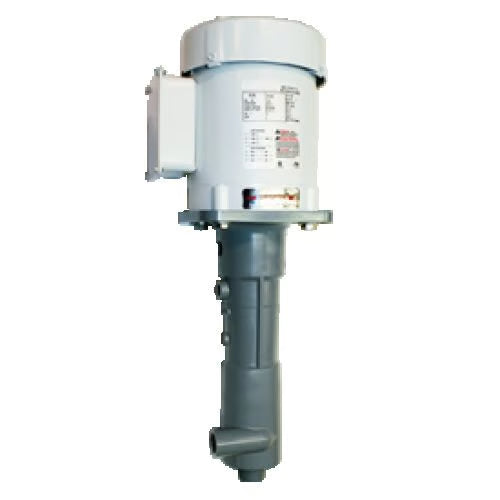

Hayward 1T6HX0008 Vertical Pump
Hayward 1T6HX0008 Vertical Pump
Create a free account and save 5% on this order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Couldn't load pickup availability
The Hayward 1T6HX0008 is a T Series vertical seal-less immersible pump in CPVC — 1 HP, three phase — the T6 wet end on 208-230/460 V plant power (family performance 5–80 GPM, heads to 45 ft).
Like all T Series pumps it uses a single, non-coupled 303 stainless motor shaft and Hayward's patented PTFE shaft seal, with the seal point moved away from the weep hole for less wear on corrosive service. CPVC head (Cell Class 23447 per ASTM D1784), 1-1/2" MNPT inlet, 1-1/4" FNPT discharge, three-phase TEFC motor.
A workhorse for plating, scrubber recirculation, and chemical transfer at higher flows. Send us your application details and we'll point you to the right part number.
KAD Pumps & Parts is Texas-based and ships from the US — fast dispatch and US support before you buy.
Specifications
| Brand | Hayward Flow Control (Webster) |
|---|---|
| Model / MPN | 1T6HX0008 (T Series, T6) |
| Pump type | Vertical seal-less immersible centrifugal |
| Construction | CPVC; 303 SS shaft; PTFE shaft seal |
| Horsepower | 1 HP |
| Voltage / phase | 208-230/460 V, three phase |
| Inlet / discharge | 1-1/2" MNPT / 1-1/4" FNPT |
| Family performance | 5–80 GPM, TDH to 45 ft (60 Hz, 3450 rpm) |
| Motor | TEFC |
Datasheet: Hayward T Series datasheet (PDF)
Browse all vertical pumps, or all pumps, at KAD.
