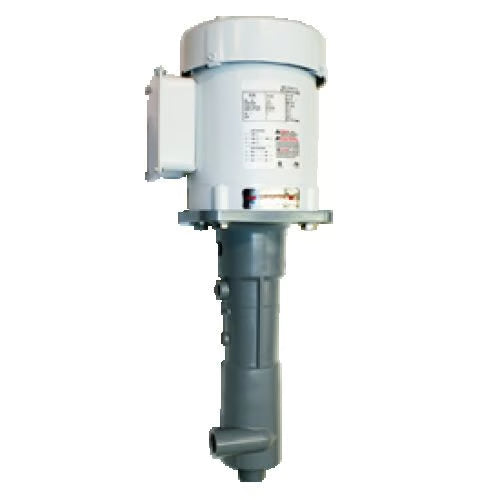

Hayward 1T5GX0008 Vertical Pump
Hayward 1T5GX0008 Vertical Pump
Create a free account and save 5% on this order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Couldn't load pickup availability
The Hayward 1T5GX0008 is a T Series vertical seal-less immersible pump in CPVC — 3/4 HP, single phase — a mid-size chemical-duty pump from the T range (family performance 5–80 GPM, heads to 45 ft).
The single, non-coupled 303 stainless motor shaft and patented PTFE shaft seal are what set the T Series apart: greater chemical compatibility, less degradation over time, and a seal point kept away from the weep hole. CPVC head (Cell Class 23447 per ASTM D1784), 1-1/4" MNPT inlet, 1" FNPT discharge, 115/230 V single-phase TEFC motor.
A dependable choice for plating tanks, scrubbers, and corrosive transfer. Send us your application details and we'll point you to the right part number.
KAD Pumps & Parts is Texas-based and ships from the US — fast dispatch and US support before you buy.
Specifications
| Brand | Hayward Flow Control (Webster) |
|---|---|
| Model / MPN | 1T5GX0008 (T Series, T5) |
| Pump type | Vertical seal-less immersible centrifugal |
| Construction | CPVC; 303 SS shaft; PTFE shaft seal |
| Horsepower | 3/4 HP |
| Voltage / phase | 115/230 V, single phase |
| Inlet / discharge | 1-1/4" MNPT / 1" FNPT |
| Family performance | 5–80 GPM, TDH to 45 ft (60 Hz, 3450 rpm) |
| Motor | TEFC |
Datasheet: Hayward T Series datasheet (PDF)
