Hayward 1T5HX0008 Vertical Pump
Hayward 1T5HX0008 Vertical Pump
Create a free account and save 5% on this order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Couldn't load pickup availability

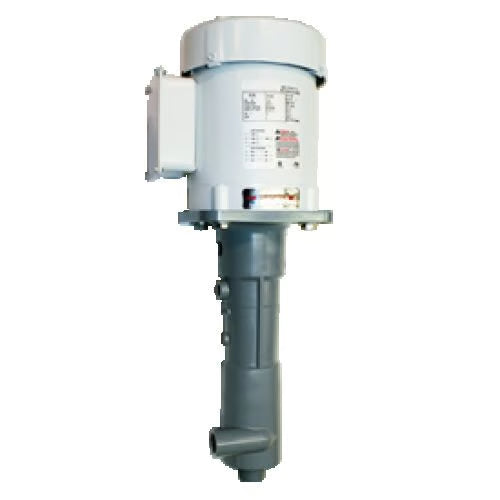

The Hayward 1T5HX0008 is a T Series vertical seal-less immersible pump in CPVC — 3/4 HP, three phase — the T5 frame on plant power (family performance 5–80 GPM, heads to 45 ft).
It runs the T Series' single, non-coupled 303 stainless shaft with the patented PTFE shaft seal and extended sleeve — the seal point sits away from the weep hole, extending life on corrosive duty. CPVC head (Cell Class 23447 per ASTM D1784), 1-1/4" MNPT inlet, 1" FNPT discharge, 208-230/460 V three-phase TEFC motor; roughly 28 lb.
Suited to plating lines, fume scrubbers, and chemical transfer in industrial installations. Send us your application details and we'll point you to the right part number.
KAD Pumps & Parts is Texas-based and ships from the US — fast dispatch and US support before you buy.
Specifications
| Brand | Hayward Flow Control (Webster) |
|---|---|
| Model / MPN | 1T5HX0008 (T Series, T5) |
| Pump type | Vertical seal-less immersible centrifugal |
| Construction | CPVC; 303 SS shaft; PTFE shaft seal |
| Horsepower | 3/4 HP |
| Voltage / phase | 208-230/460 V, three phase |
| Inlet / discharge | 1-1/4" MNPT / 1" FNPT |
| Family performance | 5–80 GPM, TDH to 45 ft (60 Hz, 3450 rpm) |
| Motor | TEFC |
| Weight | ~28 lb |
Datasheet: Hayward T Series datasheet (PDF)
