Hayward
Hayward 1S5HX0008 Vertical Pumps
Hayward 1S5HX0008 Vertical Pumps
Create a free account and save 5% on this order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Couldn't load pickup availability

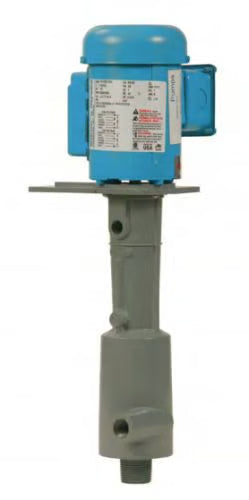

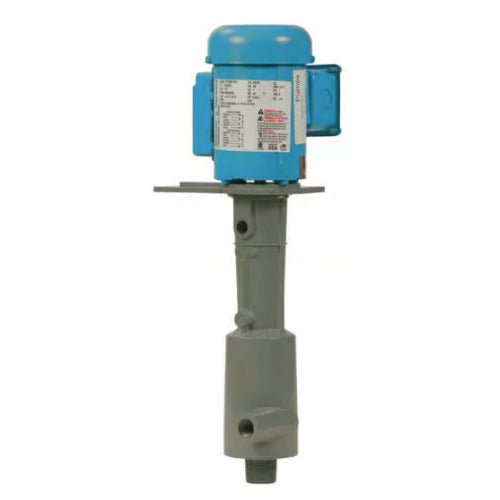

The Hayward 1S5HX0008 is an S Series vertical seal-less immersible pump in CPVC — 1 HP, three phase — for continuous-duty corrosive service in industrial tanks and sumps.
No mechanical shaft seal means nothing to leak or rebuild in the liquid path — the practical advantage of the S Series on acids and aggressive chemicals. CPVC pump head (Cell Class 23447 per ASTM D1784), FPM elastomers, and a 208-230/460 V three-phase TEFC motor.
The three-phase build is the right pick for plant installations running motor starters or VFD panels — plating lines, scrubbers, and process transfer. Send us your application details and we'll point you to the right part number.
KAD Pumps & Parts is Texas-based and ships from the US — fast dispatch and US support before you buy.
Specifications
| Brand | Hayward Flow Control (Webster) |
|---|---|
| Model / MPN | 1S5HX0008 (S Series, S5 / S5P8-1396V) |
| Pump type | Vertical seal-less immersible centrifugal |
| Construction | CPVC (Cell Class 23447, ASTM D1784) |
| Elastomers | FPM |
| Horsepower | 1 HP |
| Voltage / phase | 208-230/460 V, three phase |
| Motor | TEFC |
Datasheet: Hayward S Series datasheet (PDF)
Browse all vertical pumps, or all pumps, at KAD.
