Hayward 1S8HX0008 Vertical Pumps
Hayward 1S8HX0008 Vertical Pumps
Create a free account and save 5% on this order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Couldn't load pickup availability

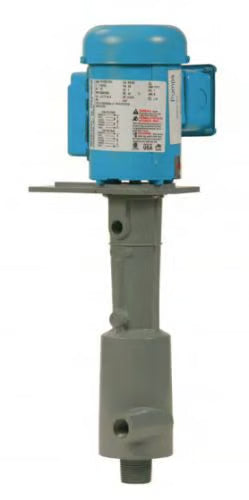

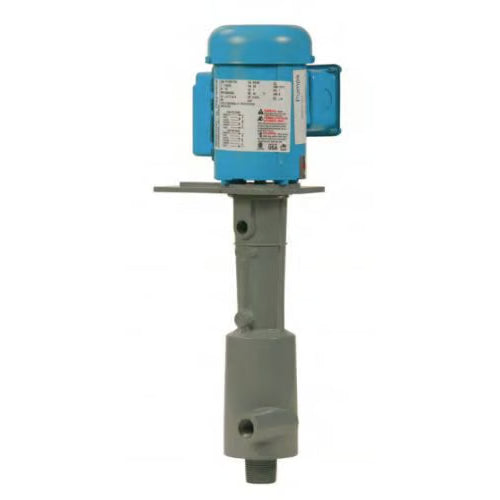

The Hayward 1S8HX0008 is an S Series vertical seal-less immersible pump in CPVC — 1-1/2 HP, three phase — a heavy-duty chemical pump for continuous tank and sump service.
The seal-less design removes the usual failure point on corrosive duty: there is no mechanical shaft seal to leak or replace. CPVC pump head (Cell Class 23447 per ASTM D1784) with FPM elastomers, 208-230/460 V three-phase TEFC motor, 1-1/2" suction and 1-1/4" discharge, at roughly 45 lb.
Sized for higher-flow scrubber recirculation, plating, and chemical transfer loops. Send us your application details and we'll point you to the right part number.
KAD Pumps & Parts is Texas-based and ships from the US — fast dispatch, straightforward ordering, and US support before you buy.
Specifications
| Brand | Hayward Flow Control (Webster) |
|---|---|
| Model / MPN | 1S8HX0008 (S Series, S8) |
| Pump type | Vertical seal-less immersible centrifugal |
| Construction | CPVC (Cell Class 23447, ASTM D1784) |
| Elastomers | FPM |
| Horsepower | 1-1/2 HP |
| Voltage / phase | 208-230/460 V, three phase |
| Suction / discharge | 1-1/2" / 1-1/4" |
| Motor | TEFC |
| Weight | ~45 lb |
Datasheet: Hayward S Series datasheet (PDF)
