Hayward 1S0HX0008 Vertical Pumps
Hayward 1S0HX0008 Vertical Pumps
Subscribers save 5% on every order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Couldn't load pickup availability

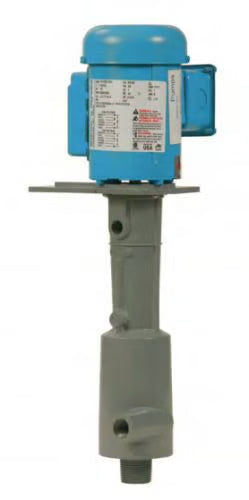

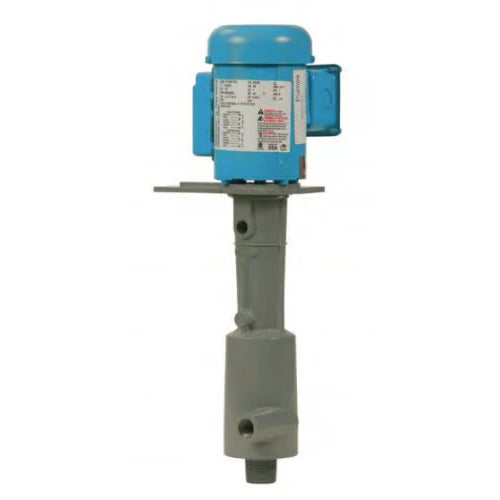

The Hayward 1S0HX0008 is the 3 HP, three-phase member of the S Series — a vertical seal-less immersible pump in CPVC for high-flow corrosive duty.
With no mechanical shaft seal in the liquid path, the S Series runs continuous duty on acids and aggressive chemicals without seal maintenance. This size pairs the CPVC head (Cell Class 23447 per ASTM D1784) and FPM elastomers with a 3" male slip suction and 1-1/2" discharge, driven by a 208-230/460 V three-phase TEFC motor; weight is roughly 75 lb.
Built for large scrubber and plating recirculation and bulk chemical transfer. Send us your application details and we'll point you to the right part number.
KAD Pumps & Parts is Texas-based and ships from the US — fast dispatch and US support before you buy.
Specifications
| Brand | Hayward Flow Control (Webster) |
|---|---|
| Model / MPN | 1S0HX0008 (S Series, S0) |
| Pump type | Vertical seal-less immersible centrifugal |
| Construction | CPVC (Cell Class 23447, ASTM D1784) |
| Elastomers | FPM |
| Horsepower | 3 HP |
| Voltage / phase | 208-230/460 V, three phase |
| Suction / discharge | 3" male slip / 1-1/2" |
| Motor | TEFC |
| Weight | ~75 lb |
Datasheet: Hayward S Series datasheet (PDF)
Browse all vertical pumps, or all pumps, at KAD.
