Hayward 1S5GX0008 Vertical Pumps
Hayward 1S5GX0008 Vertical Pumps
Create a free account and save 5% on this order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Couldn't load pickup availability

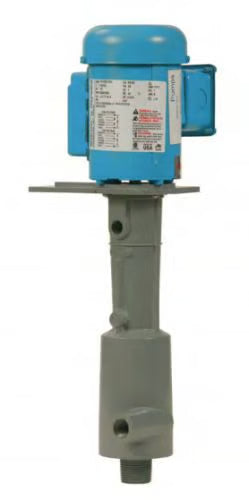

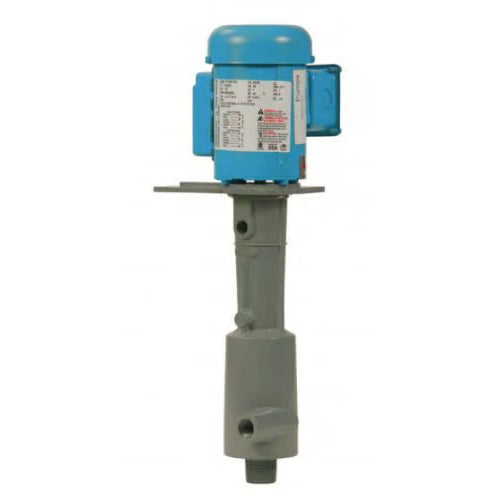

The Hayward 1S5GX0008 is an S Series vertical seal-less immersible pump in CPVC — 3/4 HP, single phase — for continuous-duty chemical pumping from tanks and sumps.
With no mechanical shaft seal there is nothing in the liquid path to leak or wear out, which makes the S Series a dependable choice on corrosive service. CPVC head (Cell Class 23447 per ASTM D1784) with FPM elastomers, a 115/230 V single-phase TEFC motor, 1-1/4" suction and 1" discharge, at roughly 35 lb.
Common homes: plating and anodizing tanks, fume scrubbers, and chemical day-tank transfer. Send us your application details and we'll point you to the right part number.
KAD Pumps & Parts is Texas-based and ships from the US — fast dispatch, straightforward ordering, and US support before you buy.
Specifications
| Brand | Hayward Flow Control (Webster) |
|---|---|
| Model / MPN | 1S5GX0008 (S Series, S5) |
| Pump type | Vertical seal-less immersible centrifugal |
| Construction | CPVC (Cell Class 23447, ASTM D1784) |
| Elastomers | FPM |
| Horsepower | 3/4 HP |
| Voltage / phase | 115/230 V, single phase |
| Suction / discharge | 1-1/4" / 1" |
| Motor | TEFC |
| Weight | ~35 lb |
Datasheet: Hayward S Series datasheet (PDF)
