Pulsafeeder Chem-Tech X024-XA-AAAAXXX Metering Pump
Pulsafeeder Chem-Tech X024-XA-AAAAXXX Metering Pump
Create a free account and save 5% on this order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Couldn't load pickup availability

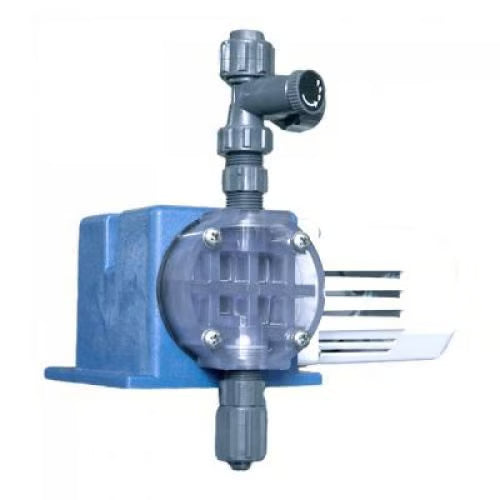

The Pulsafeeder Chem-Tech X024-XA-AAAAXXX is a Series 100 mechanical diaphragm metering pump — 24 GPD maximum at up to 100 psi, 115 V — a step below the X030 for finer feed control at the same pressure rating.
The sealed-gearbox motorized-diaphragm drive meters quietly and consistently, with knob-and-lock feed-rate adjustment. The liquid end runs a clear SAN/PVC head, CSPE seats and o-rings, and ceramic ball in the guided quad check-valve system, with standard bleed valve and 0.44" PVC suction / 0.50" PE discharge tubing. Self-priming; max 125°F and 300 cps; ETL listed, conforms to ANSI/NSF Std 50.
Well suited to chlorination and chemical conditioning on residential wells and light commercial water systems. Send us your application details and we'll point you to the right model.
KAD Pumps & Parts is Texas-based and ships from the US — fast dispatch and US support before you buy.
Specifications
| Brand | Pulsafeeder (Chem-Tech) |
|---|---|
| Model / MPN | X024-XA-AAAAXXX (Series 100) |
| Pump type | Mechanical diaphragm metering pump |
| Max flow | 24 GPD (3.78 lph) |
| Max pressure | 100 psi (7 bar) |
| Liquid end | SAN/PVC head, CSPE seats/o-rings, ceramic ball |
| Tubing | 0.44" PVC suction, 0.50" PE discharge |
| Power | 115 V, 60 Hz |
| Max temp / viscosity | 125°F / 300 cps |
| Listings | ETL; conforms to ANSI/NSF Std 50 |
Datasheet: Pulsafeeder Chem-Tech Series 100/150 tech sheet (PDF)
