Pulsafeeder Chem-Tech X030-XC-BAA9XXX Metering Pump
Pulsafeeder Chem-Tech X030-XC-BAA9XXX Metering Pump
Create a free account and save 5% on this order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Couldn't load pickup availability

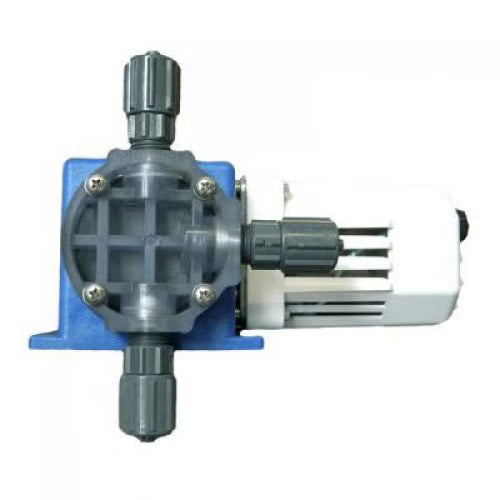

The Pulsafeeder Chem-Tech X030-XC-BAA9XXX is a Series 100 mechanical diaphragm metering pump — 30 GPD maximum at up to 100 psi — in the 230 V build for international and panel applications.
The sealed-gearbox motorized-diaphragm drive delivers steady, quiet dosing with knob-and-lock feed-rate control. This configuration runs a PVC head with CSPE seats/o-rings and ceramic ball in the guided quad check-valve system, with 0.38" tubing connections and standard bleed valve. Self-priming; max 125°F and 300 cps.
A dependable chemical feeder for chlorination and water conditioning where 230 V supply is on hand. PVC wetted ends are the recommended choice for sodium hypochlorite. Send us your application details and we'll point you to the right model.
KAD Pumps & Parts is Texas-based and ships from the US — fast dispatch and US support before you buy.
Specifications
| Brand | Pulsafeeder (Chem-Tech) |
|---|---|
| Model / MPN | X030-XC-BAA9XXX (Series 100) |
| Pump type | Mechanical diaphragm metering pump |
| Max flow | 30 GPD (4.72 lph) |
| Max pressure | 100 psi (7 bar) |
| Liquid end | PVC head, CSPE seats/o-rings, ceramic ball |
| Tubing | 0.38" |
| Power | 230 V |
| Max temp / viscosity | 125°F / 300 cps |
| Listings | ETL; conforms to ANSI/NSF Std 50 |
Datasheet: Pulsafeeder Chem-Tech Series 100/150 tech sheet (PDF)
