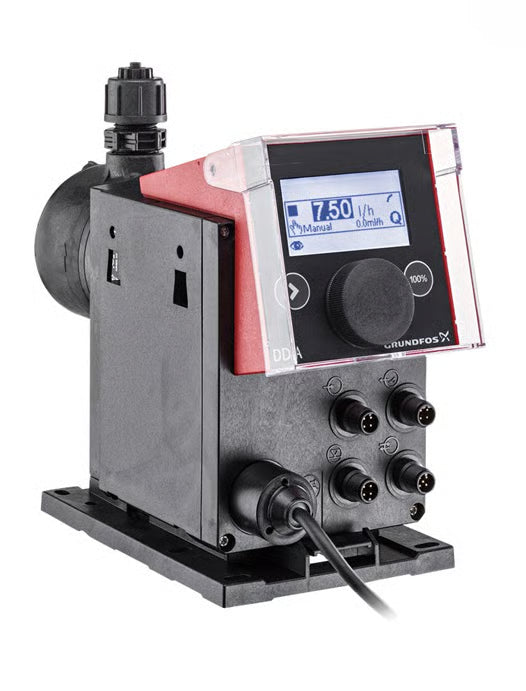

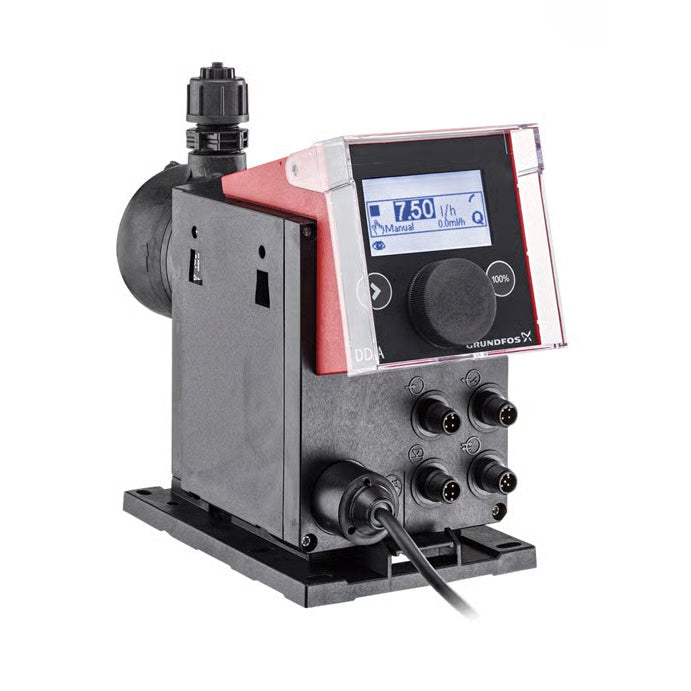

Grundfos 99159464 DDA Dosing Pump
Grundfos 99159464 DDA Dosing Pump
Create a free account and save 5% on this order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Couldn't load pickup availability
The Grundfos 99159464 is a SMART Digital XL DDA 60-10 dosing pump rated for 60 l/h (15.85 GPH) at up to 10 bar (145 psi), with a full-fluoropolymer gasket path.
Type key DDA 60-10 FCM-PV/T/C-F-31A7A7BG: PVDF dosing head, PTFE gasket, ceramic valve ball, PTFE diaphragm, and 3/4" x 3/4" NPT male connections. PVDF plus PTFE gives this build the widest chemical resistance in the DDA 60 lineup — a common pick for aggressive oxidizers and solvent-bearing streams. FCM control adds flow control, integrated flow measurement, alarm relay, and analog input. Setting range up to 1:800; universal 100–240 V, 60 Hz single-phase supply.
Choose this configuration when gasket compatibility is the limiting factor on other builds. Send us your application details and we'll point you to the right part number.
KAD Pumps & Parts is Texas-based and ships from the US — fast dispatch and US support before you buy.
Specifications
| Brand | Grundfos |
|---|---|
| Model / MPN | 99159464 (DDA 60-10 FCM-PV/T/C-F-31A7A7BG) |
| Pump type | Digital diaphragm dosing (metering) pump |
| Max flow | 60 l/h (15.85 GPH) |
| Max pressure | 10 bar (145 psi) |
| Control variant | FCM — flow control & measurement, alarm relay, analog input |
| Dosing head | PVDF |
| Gasket | PTFE |
| Valve ball | Ceramic |
| Diaphragm | PTFE |
| Connection | 3/4" x 3/4" NPT male |
| Setting range | Up to 1:800 (XL platform) |
| Power | 100–240 V, 60 Hz, 1-phase |
Datasheet: Grundfos SMART Digital XL (DDA 60–200) data booklet (PDF)
