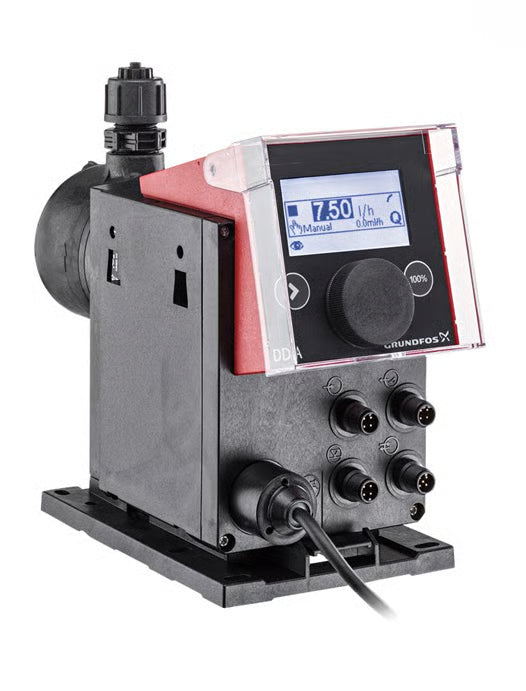

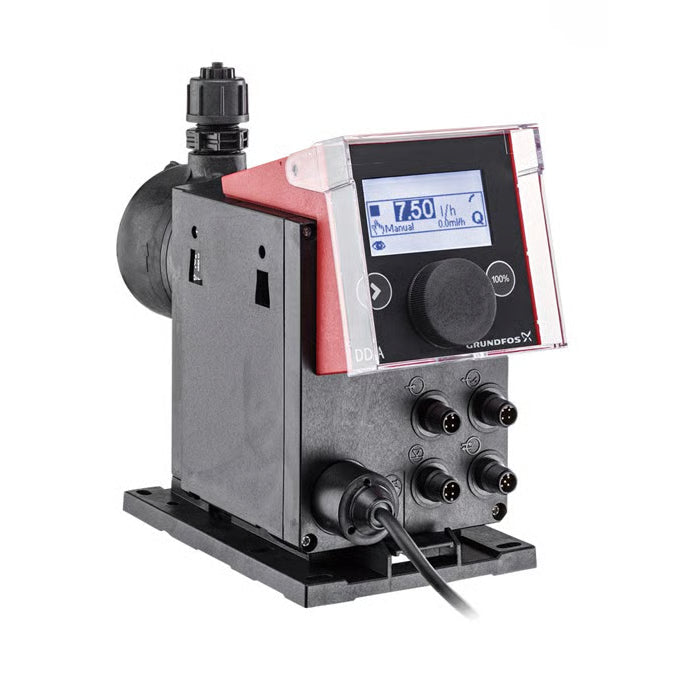

Grundfos 99159463 DDA Dosing Pump
Grundfos 99159463 DDA Dosing Pump
Create a free account and save 5% on this order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Couldn't load pickup availability
The Grundfos 99159463 is a SMART Digital XL DDA 60-10 dosing pump rated for 60 l/h (15.85 GPH) at up to 10 bar (145 psi) — high-capacity digital diaphragm metering for serious chemical feed duty.
Type key DDA 60-10 FCM-PV/E/C-F-31A7A7BG: PVDF dosing head, EPDM gasket, ceramic valve ball, PTFE diaphragm, with 3/4" x 3/4" NPT male connections. The FCM control variant adds flow control and integrated flow measurement plus alarm relay and analog input, so the pump itself verifies dosing. Setting range up to 1:800 on the XL platform; universal 100–240 V, 60 Hz, single-phase supply.
The PVDF/EPDM wetted path covers a broad range of treatment chemicals — verify compatibility for your specific service. Send us your application details and we'll point you to the right part number.
KAD Pumps & Parts is Texas-based and ships from the US — fast dispatch and US support before you buy.
Specifications
| Brand | Grundfos |
|---|---|
| Model / MPN | 99159463 (DDA 60-10 FCM-PV/E/C-F-31A7A7BG) |
| Pump type | Digital diaphragm dosing (metering) pump |
| Max flow | 60 l/h (15.85 GPH) |
| Max pressure | 10 bar (145 psi) |
| Control variant | FCM — flow control & measurement, alarm relay, analog input |
| Dosing head | PVDF |
| Gasket | EPDM |
| Valve ball | Ceramic |
| Diaphragm | PTFE |
| Connection | 3/4" x 3/4" NPT male |
| Setting range | Up to 1:800 (XL platform) |
| Power | 100–240 V, 60 Hz, 1-phase |
Datasheet: Grundfos SMART Digital XL (DDA 60–200) data booklet (PDF)
