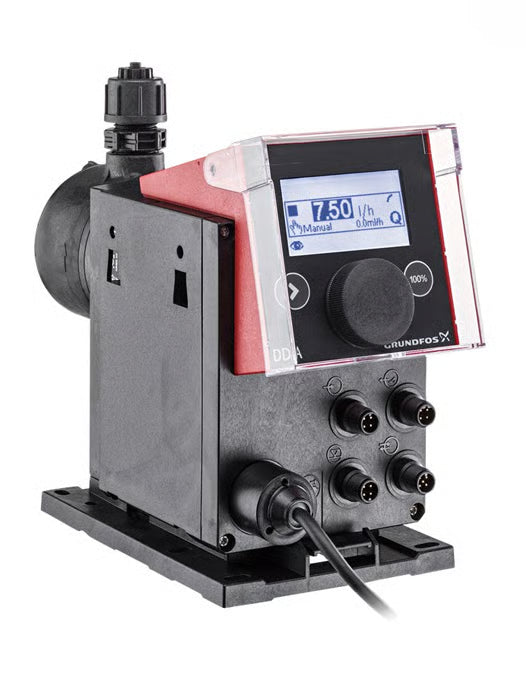

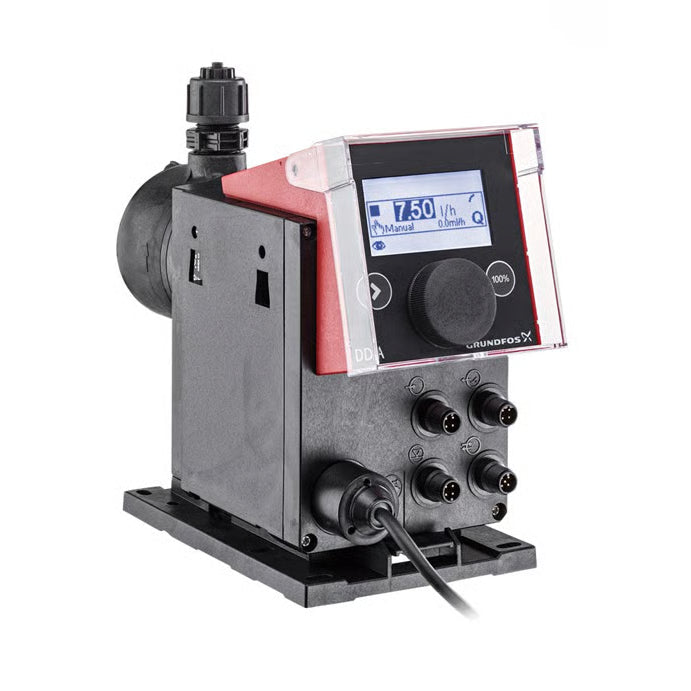

Grundfos 99159457 DDA Dosing Pump
Grundfos 99159457 DDA Dosing Pump
Create a free account and save 5% on this order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Couldn't load pickup availability
The Grundfos 99159457 is a SMART Digital DDA 60-10 diaphragm metering pump, a stepper-motor dosing pump rated to 60 l/h (15.85 GPH) at up to 10 bar (145 psi). It covers higher-volume chemical dosing in water treatment and industrial process lines while keeping the accuracy of the SMART Digital platform.
This build (type key DDA 60-10 AR-PV/T/C-F-31A7A7BG) pairs a PVDF (Kynar) dosing head with a PTFE gasket, ceramic valve balls, and a PTFE diaphragm — a chemically resistant wetted path suited to aggressive and oxidizing fluids, including chemicals that off-gas. It runs on a variable-speed stepper motor with a turndown ratio up to 1:3000, and the AR control variant adds an alarm relay and analog input with a front-mounted control panel. Maximum liquid temperature is 122°F (50°C).
Choose this pump when you need more flow than the small DDA heads provide and want PVDF/PTFE chemical resistance. Not sure of the right size or wetted materials for your duty? Send us your application details and we will point you to the right part number.
KAD is Texas-based and ships from the US, with US support before you buy — short lead times and simple online ordering.
Specifications
| Brand | Grundfos |
| Model / MPN | DDA 60-10 / 99159457 |
| Type key | DDA 60-10 AR-PV/T/C-F-31A7A7BG |
| Type | SMART Digital diaphragm dosing/metering pump (stepper motor) |
| Max flow | 60 l/h (15.85 GPH) |
| Max pressure | 10 bar (145 psi) |
| Max liquid temperature | 122°F (50°C) |
| Turndown ratio | Up to 1:3000 |
| Dosing head | PVDF (Kynar) |
| Diaphragm | PTFE |
| Gasket | PTFE |
| Valve balls | Ceramic |
| Connection | 3/4" x 3/4" NPT male |
| Control variant | AR (alarm relay + analog input), front-mounted panel |
| Power supply | 100–240 V, 50/60 Hz, single phase |
Datasheet: Grundfos SMART Digital XL DDA (60 to 200 l/h) — data booklet (PDF)
