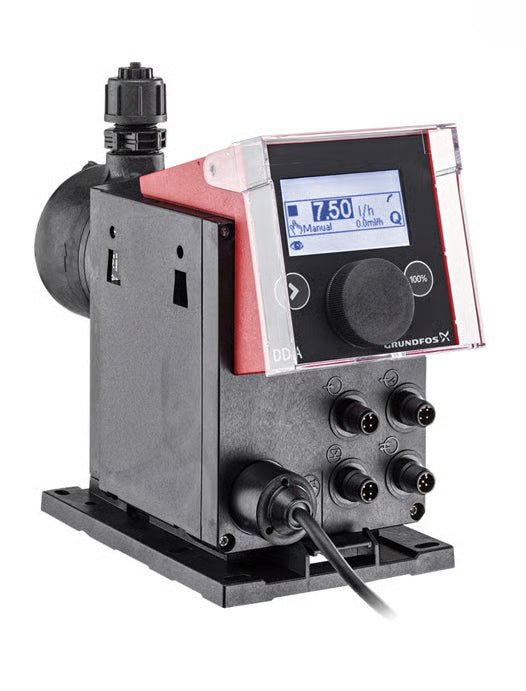

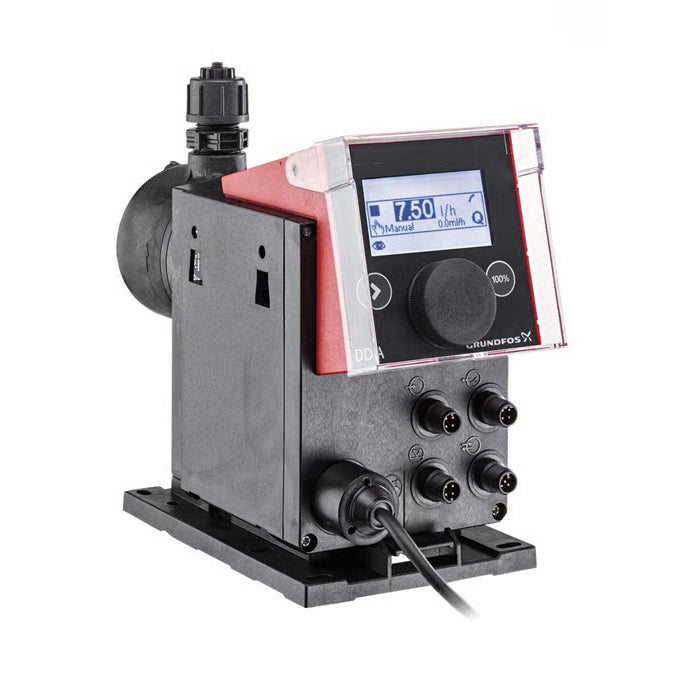

Grundfos 97722689 DDA Dosing Pump
Grundfos 97722689 DDA Dosing Pump
Create a free account and save 5% on this order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Couldn't load pickup availability
The Grundfos 97722689 is a SMART Digital S DDA 30-4 diaphragm dosing pump rated for 30 l/h (7.9 GPH) at up to 4 bar (58 psi) — the higher-flow, lower-pressure end of the DDA S range.
This build uses a PVDF dosing head for wide chemical resistance, FKM gasket, ceramic valve ball, and PTFE diaphragm, in the AR control variant (alarm relay plus analog input). It ships with the installation kit including 3/8" x 1/2" hose and standard valve. Universal 100–240 V, 50/60 Hz single-phase supply; setting range up to 1:3000.
Right for higher-volume chemical feed — coagulants, antiscalants, and similar — where discharge pressure stays modest and the controller drives the pump over analog input. Send us your application details and we'll point you to the right part number.
KAD Pumps & Parts is Texas-based and ships from the US — fast dispatch and US support before you buy.
Specifications
| Brand | Grundfos |
|---|---|
| Model / MPN | 97722689 (DDA 30-4 AR, PVDF/FKM/Ceramic) |
| Pump type | Digital diaphragm dosing (metering) pump |
| Max flow | 30 l/h (7.9 GPH) |
| Max pressure | 4 bar (58 psi) |
| Control variant | AR — alarm relay + analog input |
| Dosing head | PVDF |
| Gasket | FKM |
| Valve ball | Ceramic |
| Diaphragm | PTFE |
| Connection | Installation kit, 3/8" x 1/2" hose, standard valve |
| Setting range | Up to 1:3000 |
| Power | 100–240 V, 50/60 Hz, 1-phase |
Datasheet: Grundfos SMART Digital S (DDA/DDC/DDE) data booklet (PDF)
Browse all chemical metering & dosing pumps, or all pumps, at KAD.
