Grundfos 97722437 DDA Dosing Pump
Grundfos 97722437 DDA Dosing Pump
Create a free account and save 5% on this order.
Not sure this fits your application? Email us your application details and we'll help you confirm it's the right pump.
Need better pricing? Request a quote
Couldn't load pickup availability

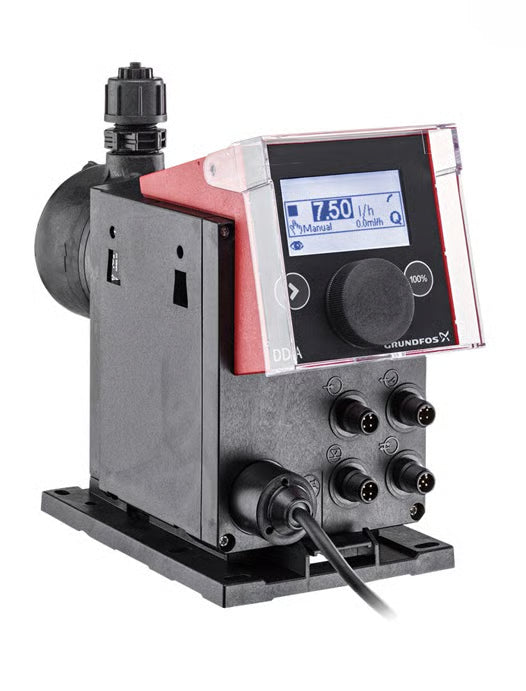

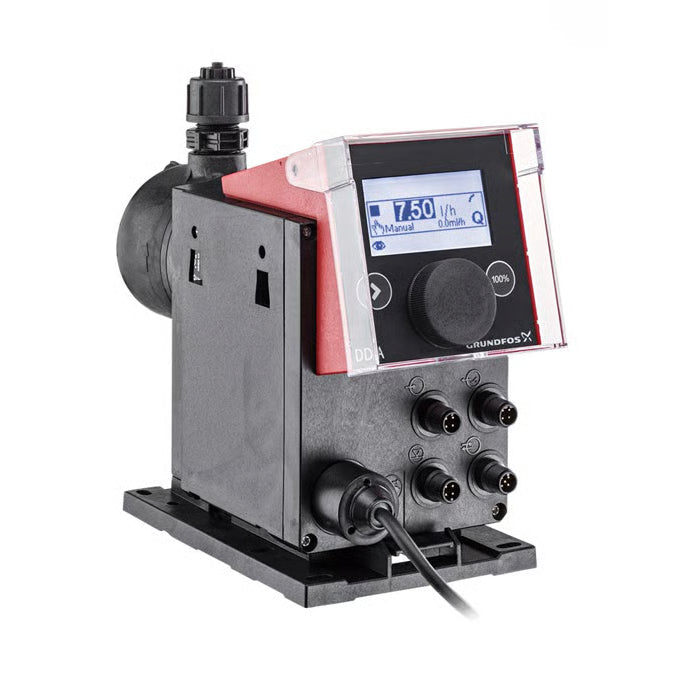

The Grundfos 97722437 is a SMART Digital S DDA 7.5-16 diaphragm dosing pump rated for 7.5 l/h (2.0 GPH) at up to 16 bar (232 psi) — a compact digital metering pump for chemical feed in water treatment and process work.
This build pairs a PVC dosing head with an FKM gasket, ceramic valve ball, and PTFE diaphragm, in the FCM control variant: flow control and integrated flow measurement, plus alarm relay and analog input. Connection is by hose suction/discharge with the standard valve. The stepper-motor drive delivers a setting range up to 1:3000 with consistent accuracy across the range. Power is universal 100–240 V, 50/60 Hz, single phase.
Choose this configuration when you want on-pump flow verification rather than a separate flow monitor. Send us your application details and we'll point you to the right part number — note Grundfos has since migrated some 977-series part numbers to 930-series equivalents.
KAD Pumps & Parts is Texas-based and ships from the US — fast dispatch and US support before you buy.
Specifications
| Brand | Grundfos |
|---|---|
| Model / MPN | 97722437 (DDA 7.5-16 FCM, PVC/FKM/Ceramic) |
| Pump type | Digital diaphragm dosing (metering) pump |
| Max flow | 7.5 l/h (2.0 GPH) |
| Max pressure | 16 bar (232 psi) |
| Control variant | FCM — flow control & measurement, alarm relay, analog input |
| Dosing head | PVC |
| Gasket | FKM |
| Valve ball | Ceramic |
| Diaphragm | PTFE |
| Connection | Hose suction/discharge, standard valve |
| Setting range | Up to 1:3000 |
| Power | 100–240 V, 50/60 Hz, 1-phase |
Datasheet: Grundfos SMART Digital S (DDA/DDC/DDE) data booklet (PDF)
